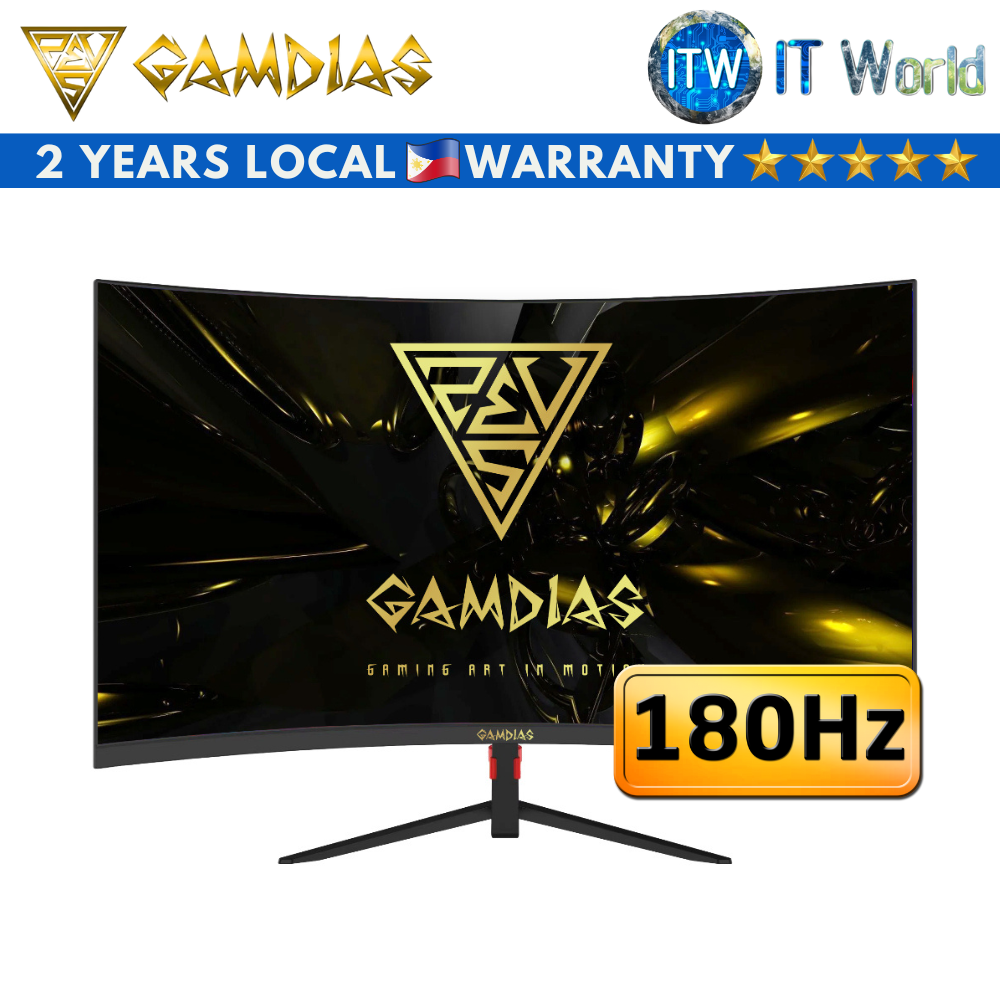

Gamdias Atlas HD27G II - 27" FHD(1920x1080) / 180Hz / VA / 0.5ms(MPRT) / Curve Gaming Monitor

Product Name: Gamdias Atlas HD27G II - 27" FHD(1920x1080) / 180Hz / VA / 0.5ms(MPRT) / Curve Gaming Monitor

Specification

Backlight Module

• OC Model: SG2701B02-2 V2.4

• Panel Type: Fast VA

• Flat/Curve: Curved

• Curved Ratio: R1500

• Aspect Ratio: 16:9

• Screen Size: 27

• Display Area（H*V）: 597.888×336.312 mm

• Panel Resolution: 1920*1080

Refresh Rate

• OC: 180Hz

• Overfrequency: NA

Backlight type: ELED

Brightness

• Defaulted(TYP): 220 (±30）

• Max(TYP): 250 (±30）

Default Color Temperature: 7500K

Contrast Ratio

• Static State: 3000:1

• Dynamic State: Millions

Pixels: 16.7M

Colour Gamut (Coveraged)

• sRGB: 90%

• NTSC: 72%

HDR: Yes

View Angle（H/V: 178°/178°

Response Time

• OC （GTG）: 1ms

• OD Accelerate Response: 0.5ms MPRT

Eletronics

• Chipset: RTD2556

• I/O Prts（Standard）: HDMI2.0+DP+Audio out

• Port1: DC 12V 3A

• Port2: HDMI2.0

• Port5: DP

• Port6: Audio out

• MPRT: yes

• Speaker: N/A

• Power Input: DC 12V 3A

• Power Supply: External power Adapter

Power Consumption

• AC Input Power: 36W Max

• Stand-by Power Consumption（Max）: ≤0.3w

Indicator Light Mode: Power on:Blue(LED)

Structure

Appearance Color: Black

RGB light / Gaming Light: N/A

• Unit W/stand: 615*155*435mm

• Unit W/O stand: 615*45*360mm

• Packing Size: 685*105*440mm

Weight

Weight（W/O Stand）:

• Net Weight: 3.5kg

• Gross Weight: 5.1kg

VESA Size(WxH)

• VESA Demension: 100*100 mm

• Vesa Mount Method: Screw

Stand Functions

• Angle (Forerake /Back-Lean）: Forerake：5° Lean Back：15°

• Up and Down（Vertical）: N/A

• Swivel（L/R）: N/A

• Pivot: N/A

Software

• OSD Key Control Mode: Rocker Button

• OSD Manue Style: Common Black/Red OSD

• Language Menu: Multi Countries Language(Defaut:English)

Main Functions

• Color Temperature（Cold、Warm、User）

• Low Blue Light Control

• 6 Contextual Models

• DCR

• Multiple-Language Menu

• Backlight ajustment w/o flicker

• FPS/RTS Game Mode with 1 key-switch

• GAME PLUS

• FreeSync

• HDR10

• MPRT

Storage and working Environment

• Working Temperature: -20ºC~60ºC

• Storage Temperature: 0ºC~40ºC

• Working Humidity: 10~85%RH

• Storage Humidity: 5~90%(No Freezing under 40ºC ）

• Altitudes: ≤5000m

Assessory List

• USER MANUAL: yes

• Energy Label: NA

• Power Adapter: yes

• STAND SCREWS: yes

• DP cable: 1*DP
