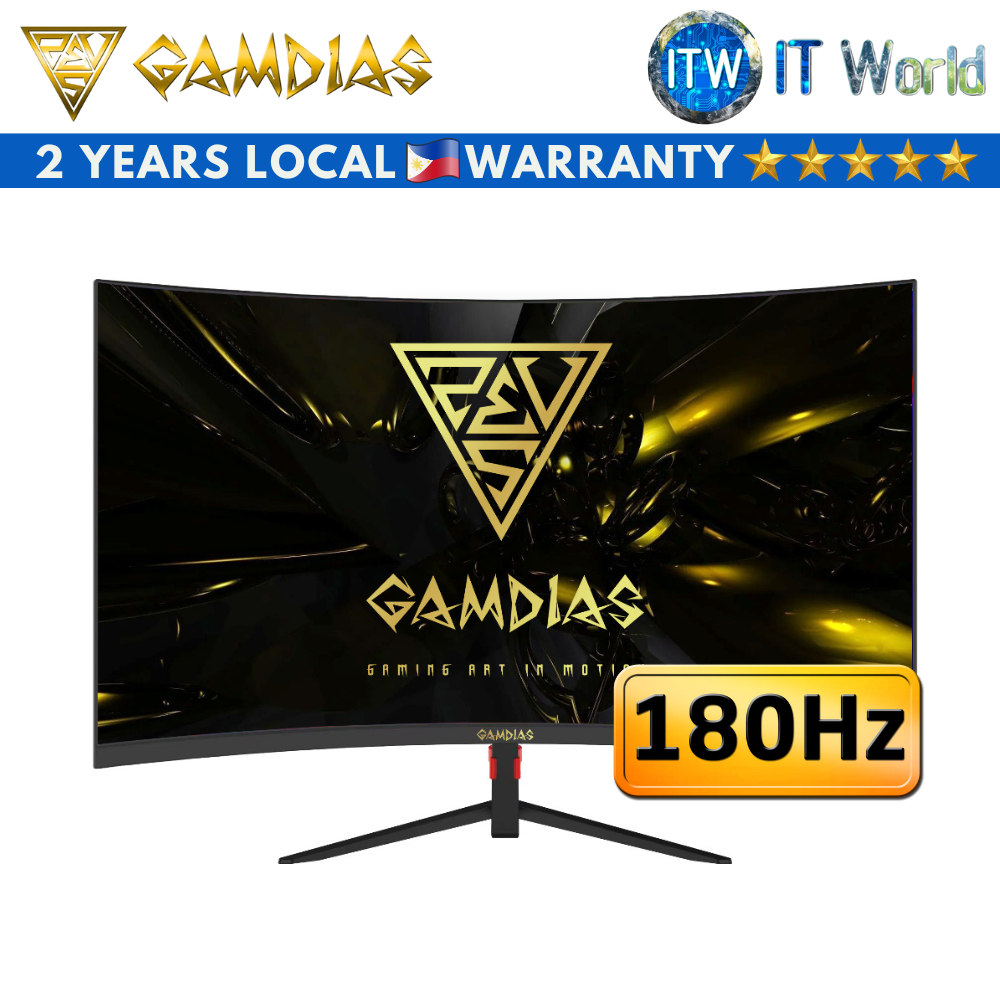

Product Name: Gamdias Atlas Curve Gaming Monitor HD27G II - 27" 180Hz / 1920x1080 FHD / VA / 0.5ms (MPRT) | itw
Specification
Backlight Module
• OC Model: SG2701B02-2 V2.4
• Panel Type: Fast VA
• Flat/Curve: Curved
• Curved Ratio: R1500
• Aspect Ratio: 16:9
• Screen Size: 27
• Display Area（H*V）: 597.888×336.312 mm
• Panel Resolution: 1920*1080
Refresh Rate
• OC: 180Hz
• Overfrequency: NA
Backlight type: ELED
Brightness
• Defaulted(TYP): 220 (±30）
• Max(TYP): 250 (±30）
Default Color Temperature: 7500K
Contrast Ratio
• Static State: 3000:1
• Dynamic State: Millions
Pixels: 16.7M
Colour Gamut (Coveraged)
• sRGB: 90%
• NTSC: 72%
HDR: Yes
View Angle（H/V: 178°/178°
Response Time
• OC （GTG）: 1ms
• OD Accelerate Response: 0.5ms MPRT
Eletronics
• Chipset: RTD2556
• I/O Prts（Standard）: HDMI2.0+DP+Audio out
• Port1: DC 12V 3A
• Port2: HDMI2.0
• Port5: DP
• Port6: Audio out
• MPRT: yes
• Speaker: N/A
• Power Input: DC 12V 3A
• Power Supply: External power Adapter
Power Consumption
• AC Input Power: 36W Max
• Stand-by Power Consumption（Max）: ≤0.3w
Indicator Light Mode: Power on:Blue(LED)
Structure
Appearance Color: Black
RGB light / Gaming Light: N/A
• Unit W/stand: 615*155*435mm
• Unit W/O stand: 615*45*360mm
• Packing Size: 685*105*440mm
Weight
Weight（W/O Stand）:
• Net Weight: 3.5kg
• Gross Weight: 5.1kg
VESA Size(WxH)
• VESA Demension: 100*100 mm
• Vesa Mount Method: Screw
Stand Functions
• Angle (Forerake /Back-Lean）: Forerake：5° Lean Back：15°
• Up and Down（Vertical）: N/A
• Swivel（L/R）: N/A
• Pivot: N/A
Software
• OSD Key Control Mode: Rocker Button
• OSD Manue Style: Common Black/Red OSD
• Language Menu: Multi Countries Language(Defaut:English)
Main Functions
• Color Temperature（Cold、Warm、User）
• Low Blue Light Control
• 6 Contextual Models
• DCR
• Multiple-Language Menu
• Backlight ajustment w/o flicker
• FPS/RTS Game Mode with 1 key-switch
• GAME PLUS
• FreeSync
• HDR10
• MPRT
Storage and working Environment
• Working Temperature: -20ºC~60ºC
• Storage Temperature: 0ºC~40ºC
• Working Humidity: 10~85%RH
• Storage Humidity: 5~90%(No Freezing under 40ºC ）
• Altitudes: ≤5000m
Assessory List
• USER MANUAL: yes
• Energy Label: NA
• Power Adapter: yes
• STAND SCREWS: yes
• DP cable: 1*DP
