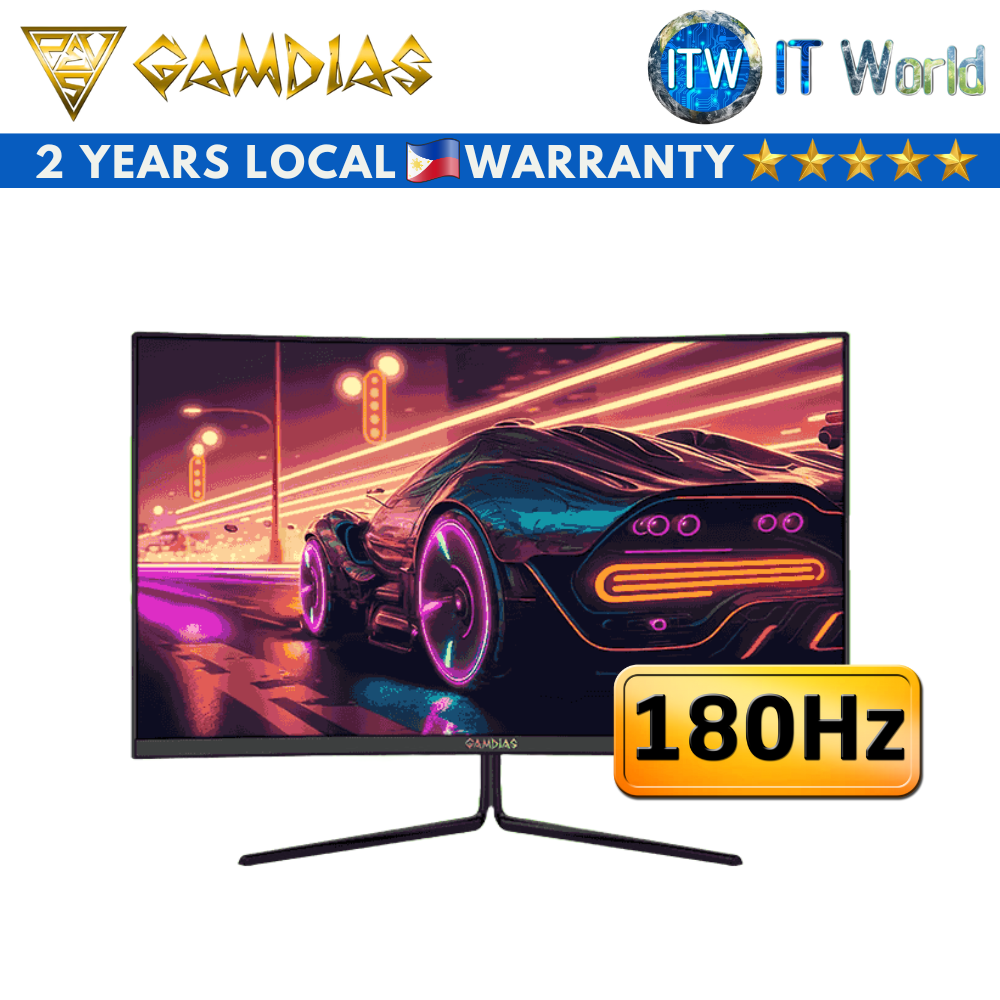

Gamdias Atlas HD24CIC - 24″ (1920 x 1080) / 180Hz / VA / 1ms(MPRT) / Monitor

Product Name: Gamdias Atlas HD24CIC - 24″ (1920 x 1080) / 180Hz / VA / 1ms(MPRT) / Monitor

Specification

Display

• Panel Size(diagonal): 23.6

• Panel Type: VA

• Panel Source: CSOT

• Panel: SG2361B02

• Flat/ Curve: Curve

• Radius of curvature: R1500

• Aspect Ratio: 16:9

• HDR support: NA

• Resolution: 1920*1080

• Bezel Type: 3 frameless

• Display Viewing Area(H*V) (mm): 521.3952(H) x 293.2848(V)

• Panel Backlight Type: ELED

• Display Surface(non-glare/ glare: non-glare

• Color Saturation (1931 NTSC) Color Gamut Coverage: 85%

• Color Saturation (1976 DCI-P3) Color Gamut Coverage: 90%

• Color Saturation (1931 sRGB) Color Gamut Coverage: 99%

• Color Saturation (1931 Adobe RGB) Color Gamut Coverage: 83%

• Color Saturation (1931 NTSC) Color Gamut Volume: 85%

• Color Saturation (1976 DCI-P3) Color Gamut Volume: 90%

• Color Saturation (1931 sRGB) Color Gamut Volume: 120%

• Color Saturation (1931 Adobe RGB) Color Gamut Volume: 90%

• Pixel Pitch (H)*(V) (mm): 0.271*0.271mm

• Brightness (cd/m2 )(Typ.): 250nit

• Brightness (nits)(Max.): 300nit

• Contrast Ratio (Typ.): TYP3000:1

• Dynamic Contrast Ratio: million

• View Angle(H/V): 178/178

• Panel bit depth: 8BIT

• Display Colors: 16.7M

• Response Time: MPRT 1ms

• Panel Refresh Rate (Max.): 48-180Hz

• Display Refresh Rate (Max.): 180HZ

I/O

• HDMI 1.4: NA

• FreeSync Range: NA

• HDMI 2.0: 2

• FreeSync Range: 48-180Hz

• DP 1.2: 1

• FreeSync Range: 48-180Hz

• DP 1.4: NA

• FreeSync Range: NA

• VGA: NA

• DVI: NA

• FreeSync Range: NA

• Audio out: 1

• USB- type A_V2.0/USB 2.0: NA

• USB- type A_V3.0/USB 3.0: NA

• USB- type B Version/USB: NA

• USB- type B QTY: NA

• USB- type C Version/Type-c: NA

• USB- type C QTY: NA

• USB- typc C Function /Type-c: NA

• USB charge /USB: NA

• Power Delivery: NA

• Speaker: NA

Mechanical Design

• Display Stand Design: V normal stand

• Tilt(angle): forerake5°±2°，lean back15°±2°

• Swivel(angle): N/A

• Pivot(angle/direction): N/A

• Height Adjustment: N/A

• VESA Mount: 75*75

• Power Button: Y 5-bit key

• OSD Button OSD: Y 5-bit key

• Back cover RGB Design: Y

• Stand RGB Design: N/A

• Kensington lock: N/A

Power

• Power Consumption: 24W Typical, 34W Max

• Power Saving Mode: Standby<=0.5W

• Power Off Mode: <0.3W

• Power Type: adapter

• Power Supply: DC 12V, Min 3A

Dimension

• Phys. Dimension with Stand (W*H*D)(mm): 538.8*184.9*412.7mm

• Phys. Dimension w/o stand (WxHxD)(mm): 538.8*91.2*322.4mm

• Box Dimension (WxHxD)(mm): 634*160*409mm

Weight

• Net Weight (kg): 3.24KG

• Gross Weight (kg): 4.71KG

Accessories

• Power Cable(1.5m): NA

• HDMI Cable Version HDMI: NA

• DP Cable Version: 1.2

• VGA Cable: NA

• DVI Cable: NA

• USB cable-type A-B Version: NA

• USB cable- type C Version: NA

• HDMI Cable QTY(1.5m/1.8M): 1

• DP Cable QTY(1.5m/1.8m): 1pc 1.5m

• USB cable type A-B QTY(1.5m/1.8m): NA

• USB cable type C QTY: NA
