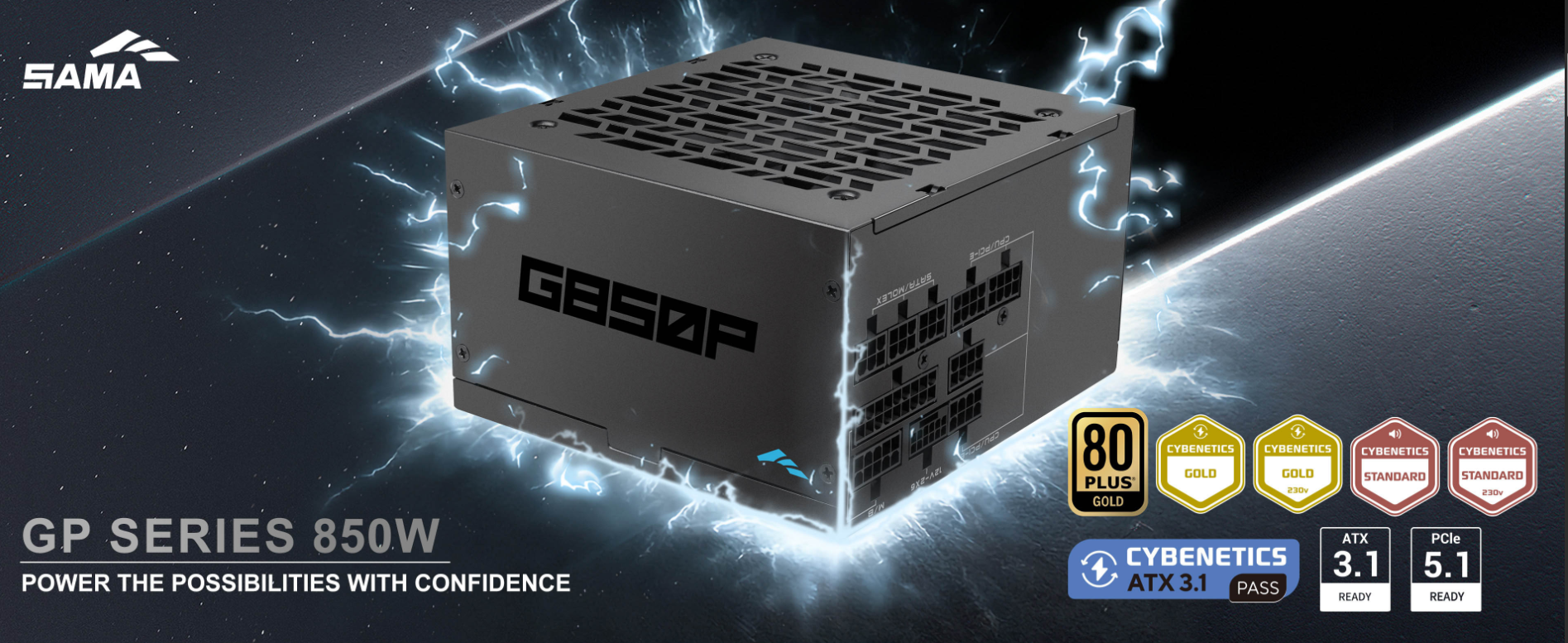

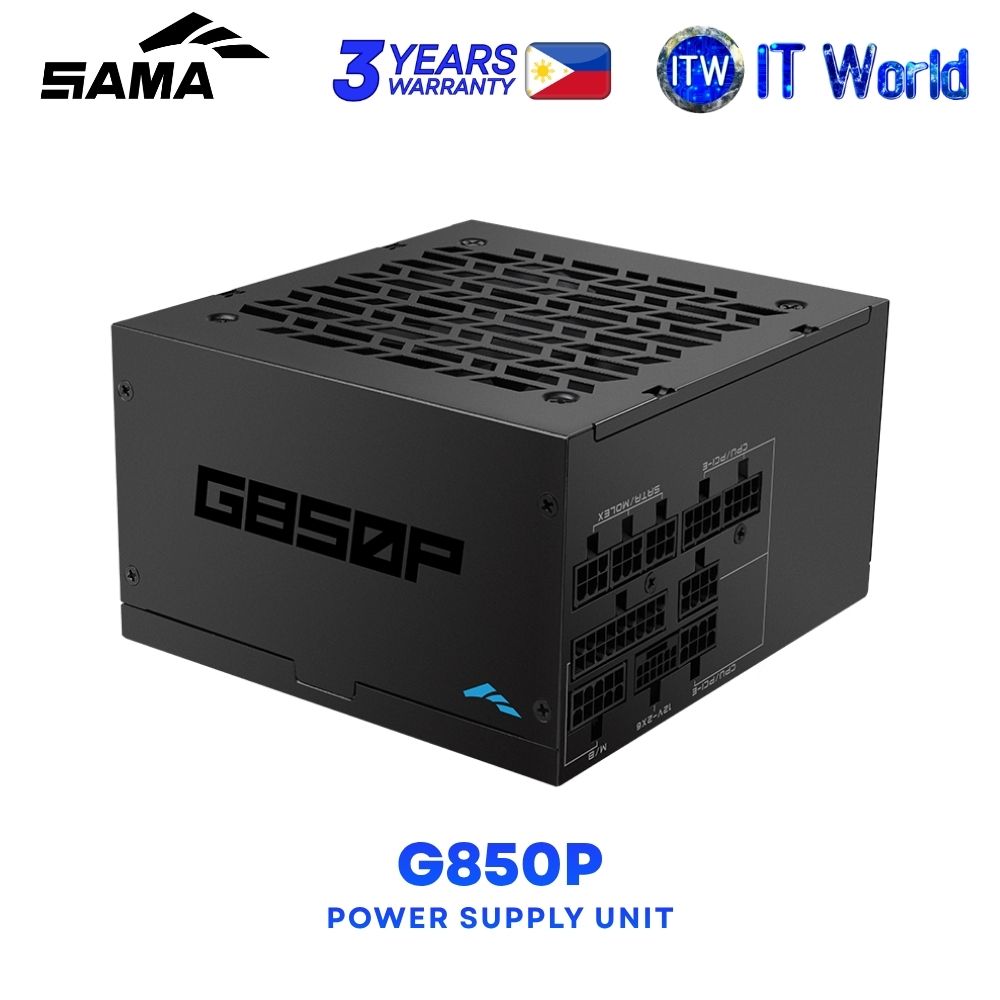

Sama G850P ATX 3.1 80Plus Gold Certified Fully Modular Power Supply Unit HAT-850yzB1-GP
Details
⚡ 850W Power Output – Delivers up to 850W of power for your PC system.
🔌 ATX 3.1 Form Factor – Built according to the ATX 3.1 specification.
🏆 80 PLUS Gold Certified – Rated Gold with >85% efficiency under typical load (50% load).
🧩 Fully Modular Design – Connect only the cables you need for a cleaner setup.
🖤 Black Color – Sleek black finish for a clean PC build appearance.
🌬️ 120mm FDB Fan – Equipped with a 120mm Fluid Dynamic Bearing fan.
🌡️ Operating Temperature – Designed for operation from 0°C to 40°C.
🛡️ Multiple Protections – OTP, OCP, OPP, SCP, OVP, UVP, SIP, and NLO protection.
⏱️ MTBF – Rated for up to 100,000 hours.
⚙️ Topology – APFC + Full Bridge LLC + SR + DC-DC.
🔋 AC Input – 100–240Vac.
Physical Dimensions
📏 Product Dimensions: 140 × 150 × 86mm (L × W × H)
📏 Converted: 15 × 14 × 8.6 cm (W × L × H)
Connectors
🔌 1 × MB ATX 24-Pin – 550mm
🔌 2 × CPU (4+4)-Pin – 700mm
🔌 1 × PCI-E (6+2)-Pin – 600mm
🔌 1 × PCI-E (6+2)-Pin + (6+2)-Pin – 550+150mm
⚡ 1 × 12V-2×6 (12+4)-Pin – 600mm
💾 2 × SATA + SATA + SATA + Molex – 450+150+150+150mm
🛡️ Certifications & Compliance
✅ Safety: CE / TUV / cTUVus / FCC / ICES / UKCA / EAC
🌱 Environmental: RoHS / WEEE / ErP 2014
