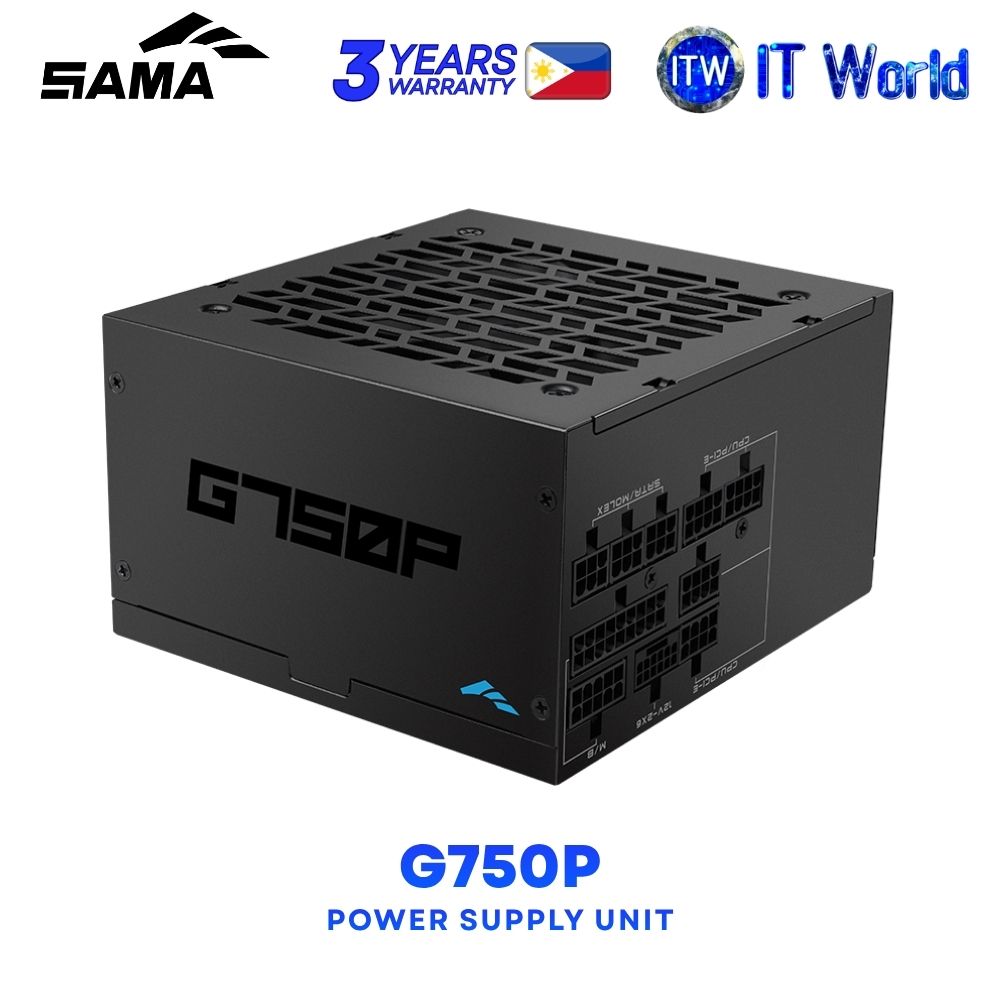

Sama G750P 750W ATX 3.1 80Plus Gold Certified Fully Modular Power Supply Unit HAT-750yzB1-GP
Details
⚡ 750W Power Output – Delivers up to 750W of power for your PC system.
🔌 ATX 3.1 Form Factor – Designed with the ATX 3.1 standard.
🧩 Fully Modular Design – Connect only the cables needed for a cleaner and more organized setup.
🏅 80PLUS Gold Certified – Features Gold certification with >85% efficiency under typical 50% load.
🖤 Black Color – Sleek black finish suitable for PC builds.
🌬️ 120mm FDB Fan – Equipped with a 120mm Fluid Dynamic Bearing fan.
🔋 AC Input: 100–240Vac
🛡️ Protection Features: OTP, OCP, OPP, SCP, OVP, UVP, SIP, and NLO.
🏗️ Topology: APFC + Full Bridge LLC + SR + DC-DC
🌡️ Operating Temperature: 0–40°C
⏳ MTBF: 100,000 Hours
🛡️ Safety Certifications: CE, TUV, cTUVus, FCC, ICES, UKCA, EAC
🌱 Environmental Compliance: RoHS, WEEE, ErP 2014
📏 Product Dimensions: 140 × 150 × 86mm (L × W × H)
Connectors
🔗 1 × MB ATX 24-Pin – 550mm
🔗 1 × CPU (4+4) Pin + (4+4) Pin – 600+150mm
🔗 1 × PCI-E (6+2) Pin – 600mm
🔗 1 × PCI-E (6+2) Pin + (6+2) Pin – 550+150mm
🔗 1 × 12V-2x6 (12+4) Pin – 600mm
🔗 2 × SATA + SATA + SATA + Molex – 450+150+150+150mm
