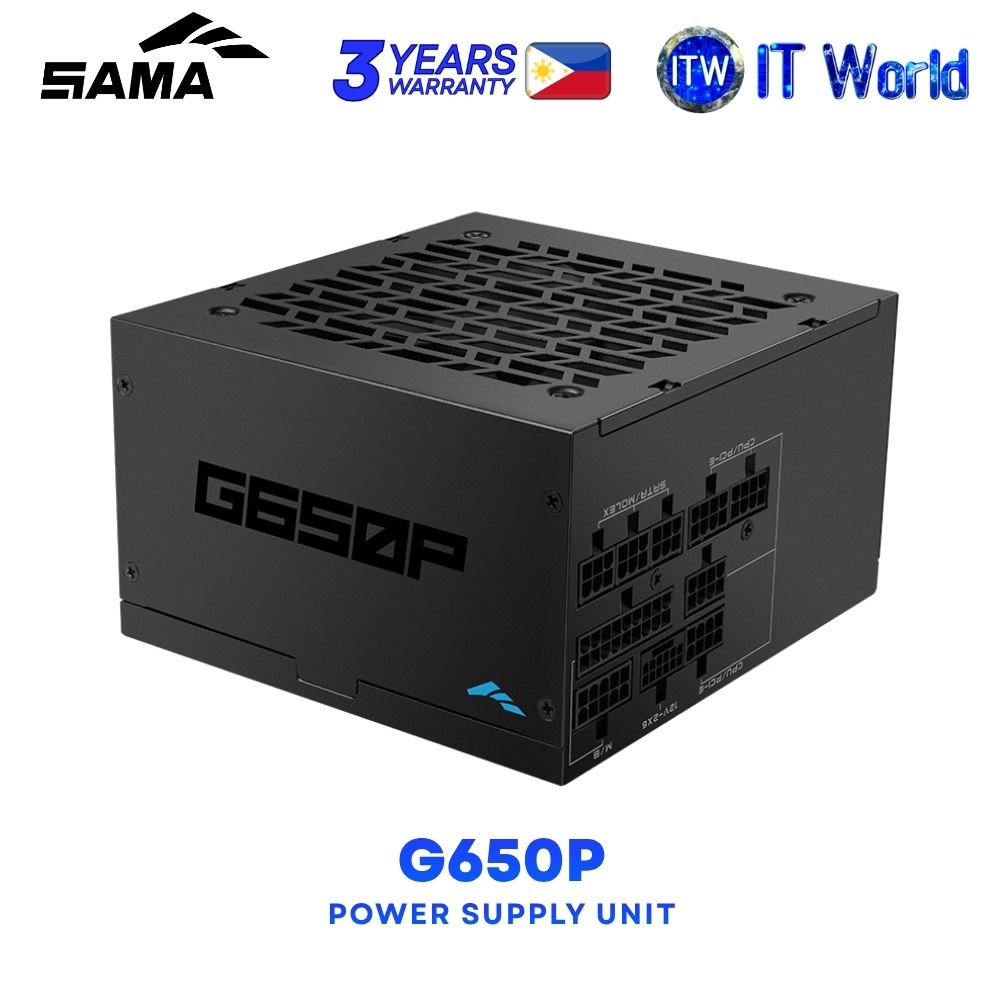

Sama G650P ATX 3.1 80+ Gold Certified Fully Modular Power Supply Unit HAT-650yzB1-GP
Specification
⚡ Power Output: 650W
🔌 Form Factor: ATX 3.1
🧩 Modularity: Fully Modular
🏆 Certification: 80PLUS Gold
⚙️ Efficiency: >85% under typical load (50% load)
🎨 Color: Black
🌬️ Fan: 120mm FDB Fan (Fluid Dynamic Bearing)
🔋 AC Input: 100–240Vac
Performance & Protection
🛡️ Protection: OTP / OCP / OPP / SCP / OVP / UVP / SIP / NLO
🏗️ Topology: APFC + Full Bridge LLC + SR + DC-DC
⏱️ MTBF: 100,000 Hours
🌡️ Operating Temperature: 0–40°C
Connectors
🔌 1× MB ATX 24-Pin — 550mm
🔌 1× CPU (4+4) Pin + (4+4) Pin — 600+150mm
🔌 1× PCI-E (6+2) Pin + (6+2) Pin — 550+150mm
🔌 1× 12V-2x6 (12+4) Pin — 600mm
🔌 2× SATA + SATA + SATA + Molex — 450+150+150+150mm
Physical Specifications
📐 PSU Dimensions: 140 × 150 × 86mm (L × W × H)
🖤 Model: G650P
🔢 Model Number / SKU: HAT-650yzB1-GP
🌱 Environmental Compliance: RoHS / WEEE / ErP 2014
✅ Safety Certifications: CE / TUV / cTUVus / FCC / ICES / UKCA / EAC
