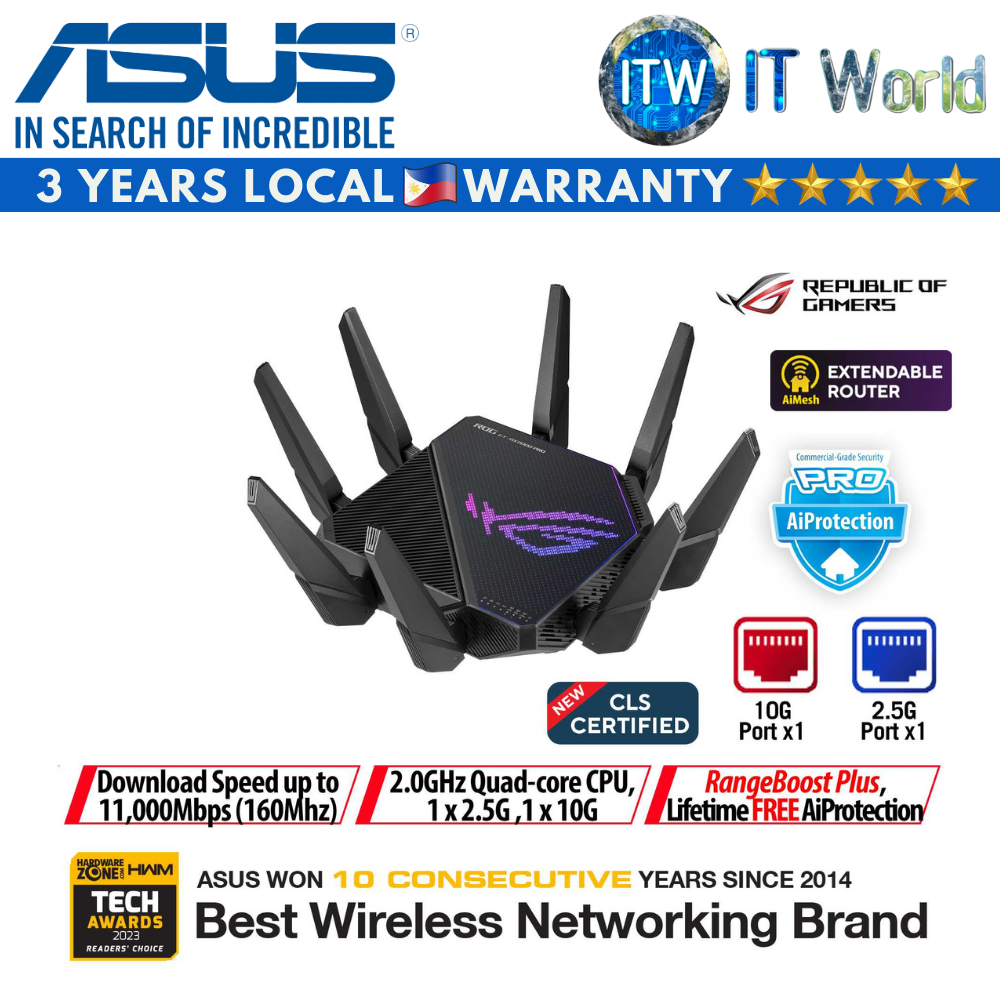

Product Name: Itw | ASUS ROG Rapture GT-AX11000/ GT-AX11000 Pro Wifi Tri-Band Gaming Router
*** ASUS ROG Rapture GT-AX11000 Wifi Tri-Band Gaming Router ***
*** ASUS ROG Rapture GT-AX11000 Pro Wifi Tri-Band Gaming Router ***
Specification
- Model Name: GT-AX11000 PRO
- Network Standard
> IEEE 802.11ax
> IPv4
> IPv6
- Product Segment: AX11000 ultimate AX performance
- AX technology: Yes
- Data Rate
> 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps
> 5G-1Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
> 5G-2Hz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps
- Antenna: External antenna x 8 (non-detachable)
- Transmit/Receive
> 2.4GHz 4x4
> 5GHz-1 4x4
> 5GHz-2 4x4
- Processor: 2.0GHz quad-core processor
- Memory: 256MB NAND flash and 1GB DDR4 RAM
- Boosts speed
> OFDMA (Orthogonal Frequency Division Multiple Access)
> Beamforming: standard-based and universal
> 1024-QAM high data rate
> 20/40/80/160 MHz bandwidth
> * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
- Operating Frequency: Tri-band Wi-Fi: 2.4 GHz / 5 GHz-1 / 5 GHz-2
- Ports
> 1 x 2.5 Gigabit WAN Port
> 1 x 10 Gigabit WAN/LAN Port
> 4 x Gigabit LAN Ports
> 1 x USB 3.2 Gen 1 Port
> 1 x USB 2.0 Port
- Button: WPS Button, LED Button, Reset Button, Power Switch
- LED Indicator
> Power x 1
> 2.4G x 1
> 5GHz-1 x 1
> 5GHz-2 x 1
> WPS x 1
> 10GE x 1
> LAN x 1
> WAN x 1
- Power Supply
> AC Input: 110V~240V(50~60Hz)
> DC Output: 19 V with max. 3.42 A ；19.5 V with max. 3.33 A
- Package content
> GT-AX11000 Pro WiFi Gaming Router
> RJ-45 Cable
> Power Adapter
> Quick Start Guide
> Warranty Card
- Product Weight (g): 2180g
- AiMesh
> AiMesh
> Primary AiMesh router
> AiMesh node
- Router APP: ASUS Router APP
- Game
> Game Boost/acceleration
> Game Radar
> WTFast
> UU boost
> ROG_First
> OpenNAT (Game Profile)
- Alexa: Support Alexa skill
- AiProtection
> AiProtection Pro
> Router Security Assessment
> Malicious site blocking
> Two-Way IPS
> Infected Device Prevention and Blocking
- Parental Control
> Parental Control
> Parental Control Customized Internet schedule
> Maximum Parental Control profile: 64
> Maximum Parental Control content filter rule: 64
- Traffic Control
> Adaptive QoS
> Bandwidth Monitor
> Bandwidth limiter
> Maximum Bandwidth limiter rule: 32
> Traditional QoS
> Traffic Monitor
> Real-time traffic monitor
> Wired Traffic Monitor
> Wireless Traffic Monitor
> Traffic Analyzer
> Traffic analysis period: Daily, Weekly, Monthly
> Website history
- Wireless
> IPv6
> MU-MIMO
> WiFi Encryption: WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, Open System
> UTF-8 SSID
> Guest Network
> Maximum Guest Network rule: 2.4 GHz x 3, 5 GHz-1 x 3, 5 GHz-2 x 3
> Guest Network Connection time limit
> Guest Network Encryption: Open system, WPA/WPA2-Personal/WPA3-Personal
> WPS
> Wi-Fi MAC address filter
> Maximum MAC filters: 64
> Wireless scheduler
> Airtime fairness
> RADIUS Client
> Universal beamforming
- WAN
> Explicit beamforming
> Internet connection Type: Automatic IP, Static IP, PPPoE, PPTP, L2TP
> Dual WAN
> WAN Aggregation
> 3G/4G LTE dongle
> Android tethering
> Port forwarding
> Maximum port forwarding rule: 64
> Port triggering
> Maximum port triggering rule: 32
> DMZ
> DDNS
> NAT Passthrough: PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
> Let's Encrypt
> Safe browsing
> DNS-over-TLS
- LAN
> DHCP Server
> IGMP snooping
> IPTV
> LAN Link Aggregation
> Manually assign IP address
> Maximum manually assign IP address rule: 128
- VPN
> VPN Client L2TP
> VPN Client OVPN
> VPN Client PPTP
> VPN Client WireGuard
> VPN Server IPSec
> VPN Server OVPN
> VPN Server PPTP
> VPN Server WireGuard
> VPN Fusion
- USB application
> File System: HFS+, NTFS, vFAT, ext2, ext3, ext4
> Safely Remove disk
> AiCloud
> Download master
> AiDisk
> Media Server
> Time Machine
> Samba Server
> FTP Server
> Shared Folder privileges
