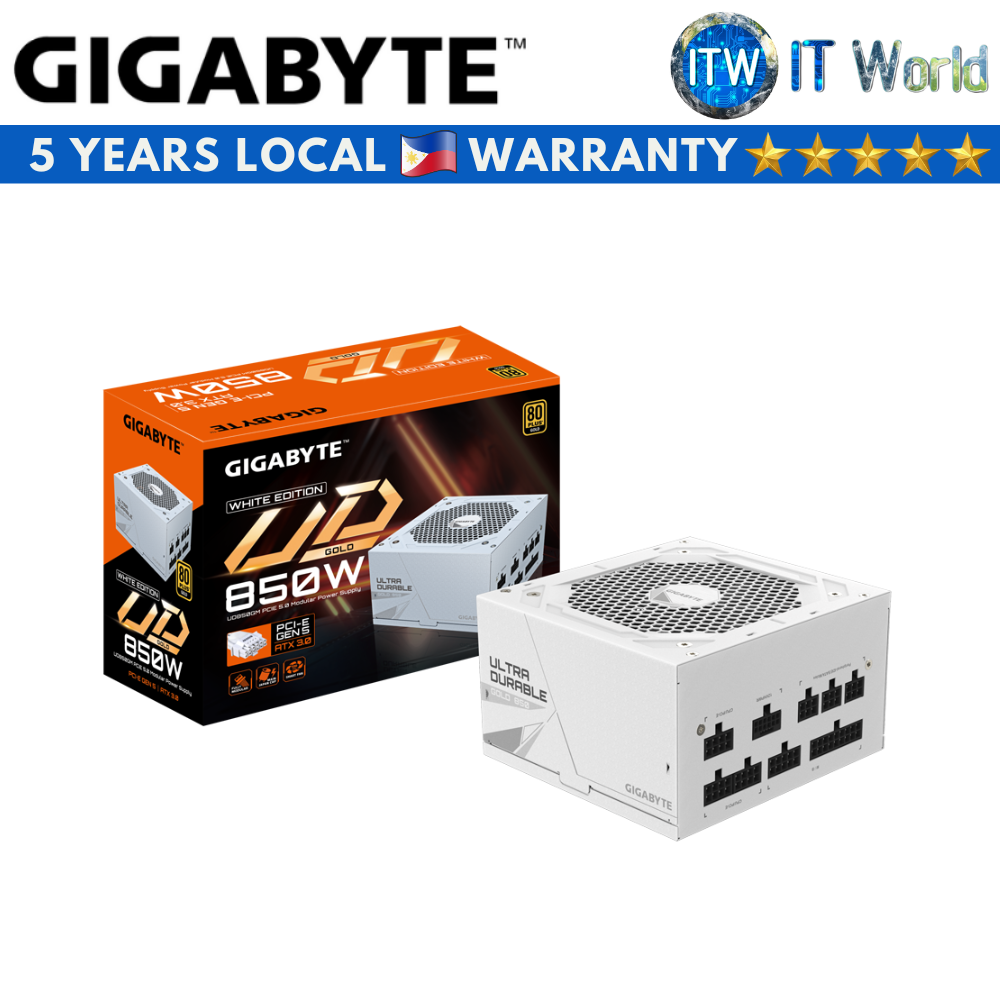

Product Name: Itw | Gigabyte UD850GM PG5W 850W 80+ Gold PCIe5.0 ATX 3.0 Modular PSU (GP-UD850GM-PG5W)
KEY FEATURE
* Ultra Durable
> Main Japanese capacitors
> Enhanced thermal solution
> 120mm smart hydraulic bearing (HYB) fan
> OVP/OPP/SCP/UVP/OCP/OTP protection
* Support PCIe Gen 5.0 graphics cards
* Support Intel ATX 3.0 standard
* 80 PLUS Gold certified
* Fully modular design
* Compact design
* 5 years warranty (Adjusted according to different regions)
Specification
* Model: GP-UD850GM PG5W
* Type: Intel Form Factor ATX 12V v3.0
* PFC: Active PFC (>0.9 typical)
* Input Voltage: 100-240 Vac (full range)
* Input Current: 12-6A
* Input Frequency: 60-50 Hz
* Output Capacity: 850W
* Dimension: 150 x 140 x 86 mm
* Fan Type: 120mm Hydraulic Bearing (HYB)fan
* 80 PLUS: Gold
* Efficiency: 90% at typical load
* MTBF: >100,000 hours
* Protection: OVP/OPP/SCP/UVP/OCP/OTP
* Power Good Signal: 100-150ms
* Hold Up Time: >16ms
* Cable Type: Flat, All white
* Connectors
> ATX/MB 20+4 Pin x 1: 610mm*1
> CPU/EPS 4+4 Pin x 2: 600mm+200mm*1
> PCI-e 16 Pin x 1: 700mm*1
> PCI-e 6+2 Pin x 4: 600mm+150mm*2
> SATA x 8: 600mm+150mm+150mm+150mm*2
> 4 Pin Peripheral x 3+4-Pin floppy x 1: 500mm+120mm+120mm+150mm*1
