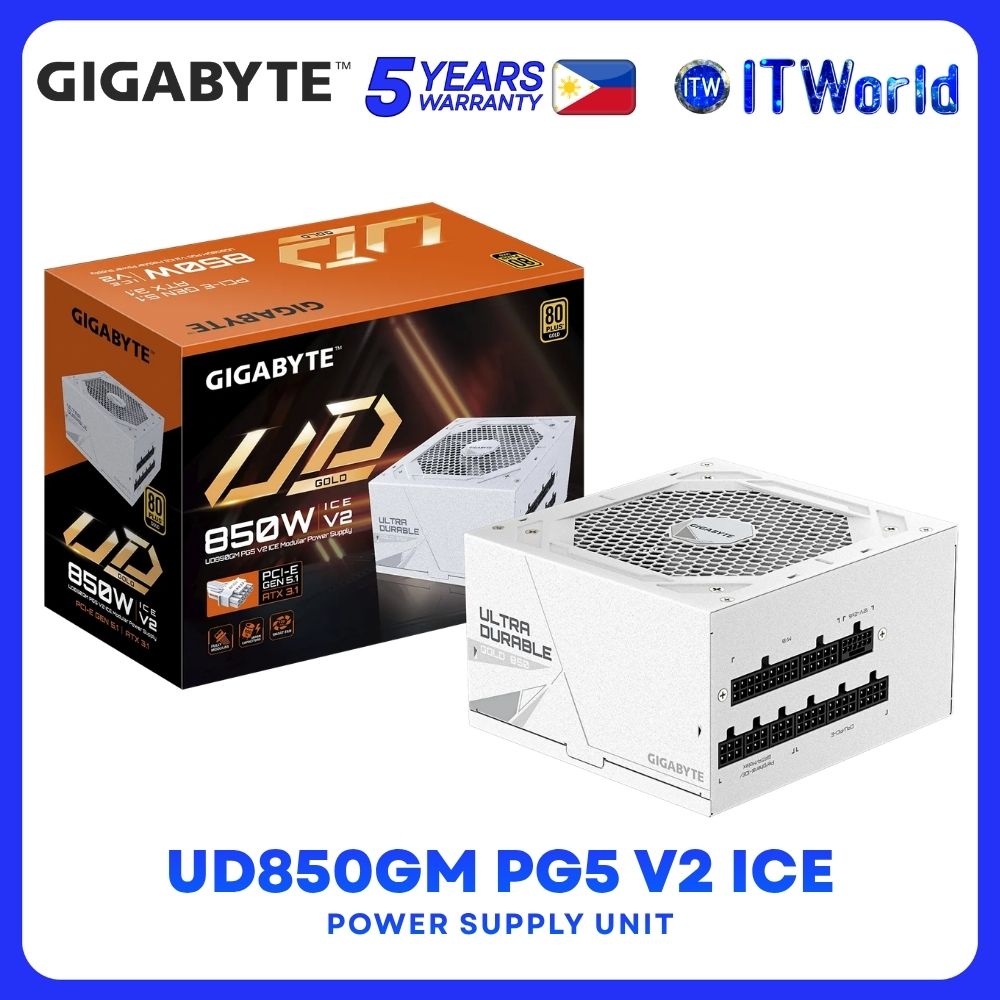

Gigabyte UD850GM PG5 V2 Ice 850W 80+ Gold Fully Modular Power Supply Unit GP-UD850GM-PG5-ICE
🔥 Power your high-performance PC with the Gigabyte UD850GM PG5 V2 Ice 850W, engineered for reliable and efficient operation. Designed with Intel ATX 3.1 and PCIe Gen 5.1 compatibility, this fully modular PSU delivers stable power while keeping cable management clean and organized.
Product Highlights
⚡ 850W Output Capacity – Delivers dependable power for modern gaming and productivity systems.
🏆 80 PLUS Gold Certified – Up to 90% efficiency at typical load for reduced power consumption.
🥇 Cybenetics Platinum Efficiency – Enhanced power efficiency performance.

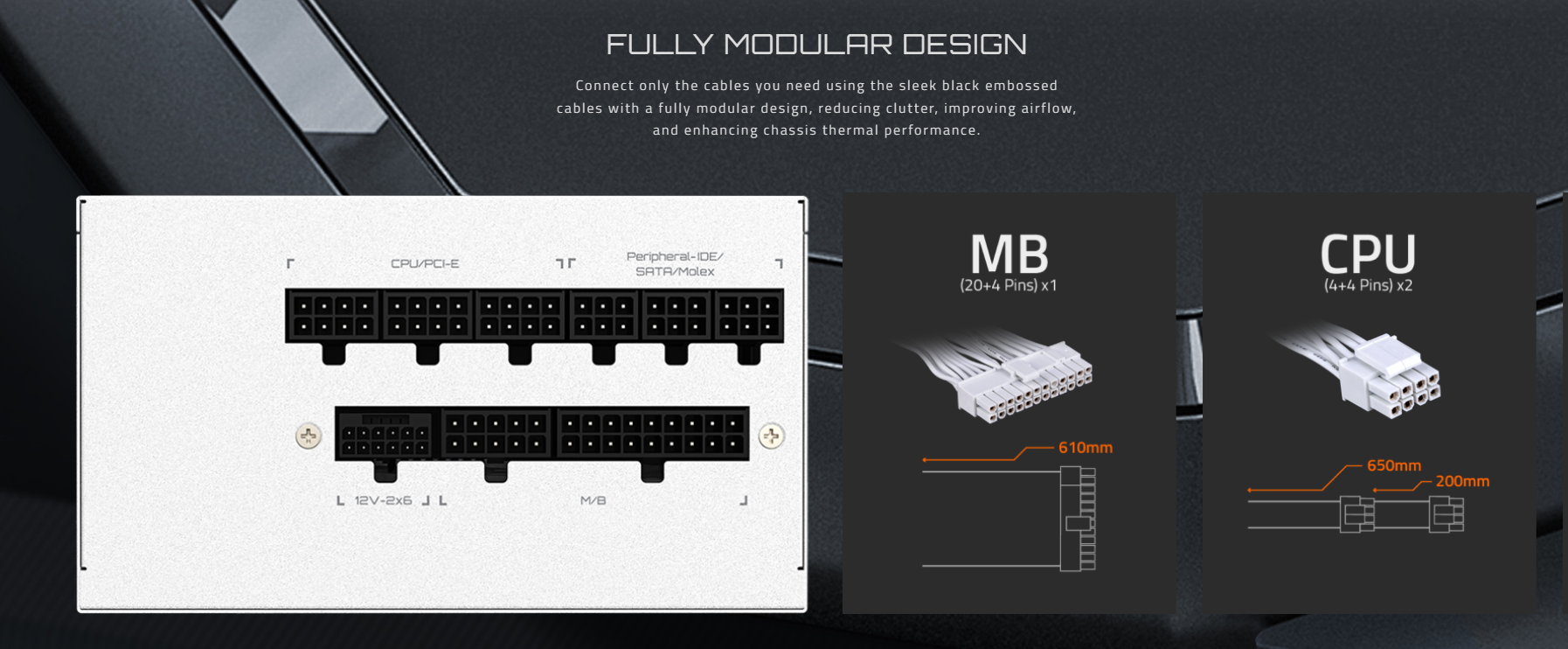

🔌 Fully Modular Design – Install only the cables you need for a cleaner PC build.
🧊 120mm Hydraulic Bearing (HYB) Smart Fan – Quiet cooling with optimized thermal performance.
🇯🇵 100% Japanese Capacitors – Built for long-lasting durability and stable power delivery.
💪 Single +12V Rail – Provides consistent and reliable power output.
📏 Compact Size – Easy installation in compatible PC cases.
🛡️ Comprehensive Protection – OVP / OPP / SCP / UVP / OCP / OTP / NLO / SIP protection for enhanced system safety.
🖥️ Intel ATX 3.1 & PCIe Gen 5.1 Ready – Supports the latest hardware platforms.
🤍 All-White Embossed Cables – Clean aesthetic for white-themed PC builds.
Specifications
🏷️ Model: GP-UD850GM PG5 ICE
🔋 Output Capacity: 850W
🖥️ Form Factor: Intel ATX 12V v3.1
⚡ PFC: Active PFC (>0.9 Typical)
🔌 Input Voltage: 100–240Vac (Full Range)
🔄 Input Frequency: 50–60Hz
⚙️ Input Current: 15–6.5A
🥇 Efficiency: 90% at Typical Load
🏅 80 PLUS Rating: Gold
⏳ MTBF: >100,000 Hours
🌬️ Cooling Fan: 120mm Hydraulic Bearing (HYB)
📐 PSU Dimensions: 150 × 140 × 86 mm
⏱️ Power Good Signal: 100–150ms
⏲️ Hold Up Time: >16ms
🤍 Cable Type: Embossed, All White
🔌 Connectors
🔹 20+4 Pin ATX x1 (610mm)
🔹 CPU/EPS 4+4 Pin x2 (650mm + 200mm)
🔹 PCI-e 6+2 Pin x4 (600mm + 150mm)
🔹 PCI-e 12+4 Pin x1 (700mm)
🔹 SATA x8 (600mm + 150mm + 150mm + 150mm)
🔹 4-Pin Peripheral x3 + Floppy x1 (500mm + 150mm + 150mm + 150mm)
