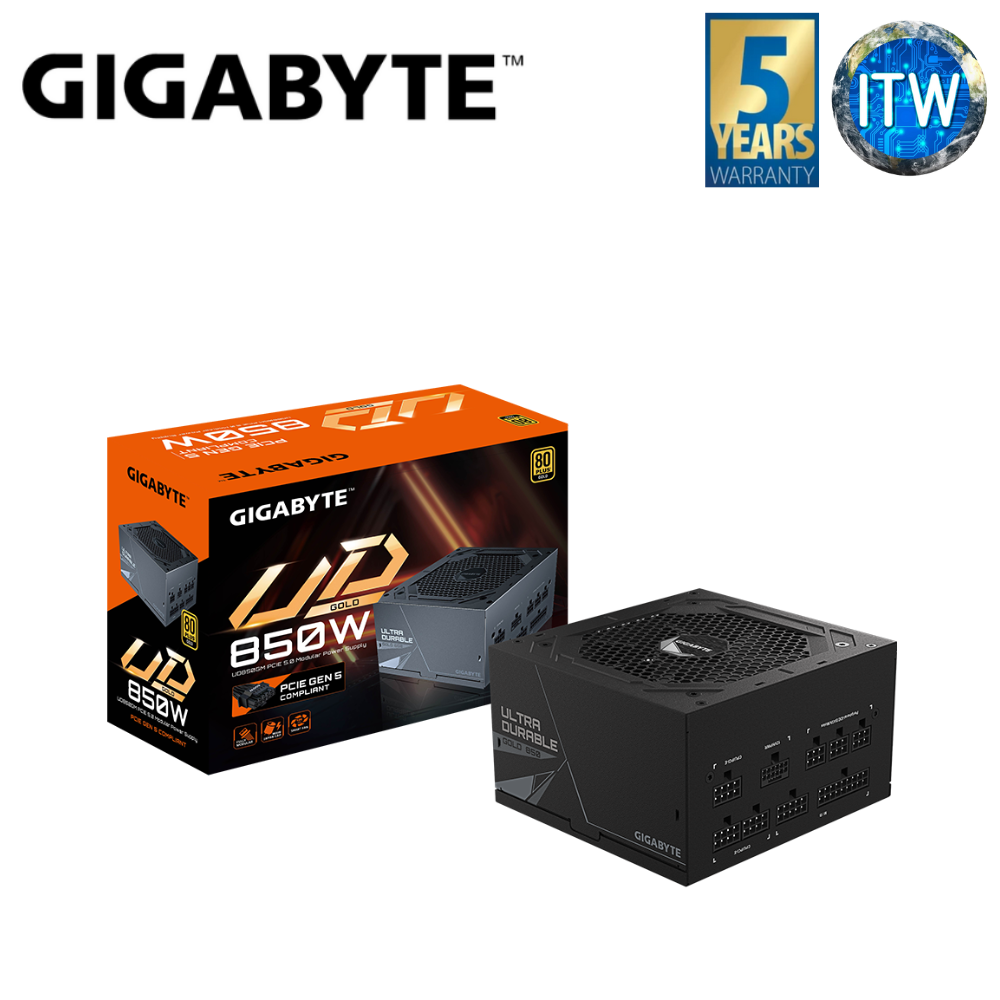

Gigabyte UD850GM 850W 80+ Gold PCIe 5.0 Fully Modular PSU

Product Name: ITW | Gigabyte UD850GM 850W 80+ Gold PCIe 5.0 Fully Modular PSU

KEY FEATURE

■ Ultra Durable

■ Main Japanese capacitors

■ Enhanced thermal solution

■ 120mm smart hydraulic bearing (HYB) fan

■ OVP/OPP/SCP/UVP/OCP/OTP protection

■ Support PCIe Gen 5.0 graphics card

■ High-quality native 16-pin cable supports 600W output

■ 80 PLUS Gold certified

■ Fully modular design

■ Compact design

■ 5 years warranty (Adjusted according to different regions)

Specification

✎ Model: GP-UD850GM PG5

✎ Type: Intel Form Factor ATX 12V

✎ PFC: Active PFC (>0.9 typical)

✎ Input Voltage: 100-240 Vac (full range)

✎ Input Current: 12-6A

✎ Input Frequency: 60-50 Hz

✎ Output Capacity: 850W

✎ Dimension: 150 x 140 x 86 mm

✎ Fan Type: 120mm Hydraulic Bearing(HYB)fan

✎ 80 PLUS: Gold

✎ Efficiency: 90% at typical load

✎ MTBF: >100,000 hours

✎ Protection: OVP/OPP/SCP/UVP/OCP/OTP

✎ Power Good Signal: 100-150ms

✎ Hold Up Time: >16ms

✎ Cable Type: Flat, All black

✎ Connectors:

■ ATX/MB 20+4 Pin x 1: 610mm*1

■ CPU/EPS 4+4 Pin x 2: 600mm+200mm*1

■ PCI-e 12+4 Pin x 1: 700mm*1

■ PCI-e 6+2 Pin x 4: 600mm+150mm*2

■ SATA x 8:

■ 600mm+150mm+150mm+150mm*2

■ 4 Pin Peripheral x 3+4-Pin floppy x 1: 500mm+120mm+120mm+150mm*1
