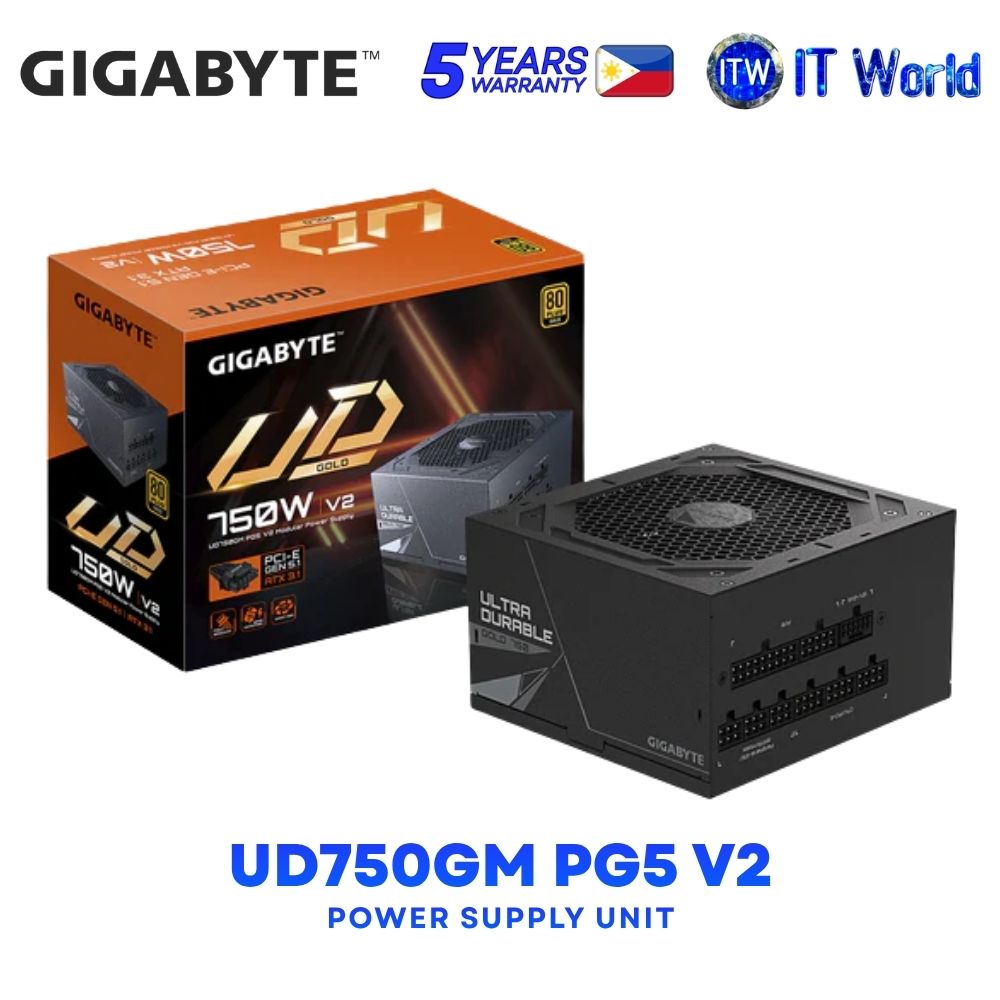

Gigabyte UD750GM PG5 V2 750W 80+ Gold Certified Fully Modular Power Supply Unit GP-UD750GM-PG5-V2
Details
🔋 750W Output Capacity – Provides a 750W power capacity with a powerful single +12V rail.
🏆 80 PLUS Gold Certified – Delivers up to 90% efficiency at typical load and features Cybenetics Platinum efficiency.
🔌 Fully Modular Design – Helps provide a cleaner and more organized cable setup with modular connectivity.
⚙️ Intel ATX 3.1 & PCIe Gen 5.1 Ready – Designed with support for the latest Intel ATX 3.1 and PCIe Gen 5.1 standards.
🧱 Ultra Durable Build – Equipped with 100% Japanese capacitors for reliable operation.
🌬️ 120mm HYB Fan – Features a 120mm Hydraulic Bearing (HYB) fan with an optimized thermal solution.
🛡️ Multiple Protections – Includes OVP, OPP, SCP, UVP, OCP, OTP, NLO, and SIP protection features.
📏 Compact Size – Measures 150 x 140 x 86mm, offering a compact ATX form factor.
🔧 Active PFC – Active PFC with >0.9 typical power factor.
Specification
⚡ Input Voltage: 100–240 Vac (full range)
🔌 Input Current: 15–6.5A
📡 Input Frequency: 50–60 Hz
⏱️ MTBF: >100,000 hours
⏳ Hold Up Time: >16ms
📶 Power Good Signal: 100–150ms
🖤 Cable Type: Embossed, all black
Connectors
🔗 ATX/MB 20+4 Pin x1 – 610mm
🔗 CPU/EPS 4+4 Pin x2 – 650mm + 200mm
🔗 PCI-e 6+2 Pin x4 – 600mm + 150mm
🔗 PCI-e 12+4 Pin x1 – 700mm
🔗 SATA x8 – 600mm + 150mm + 150mm + 150mm
🔗 4-Pin Peripheral x3 + 4-Pin Floppy x1 – 500mm + 150mm + 150mm + 150mm
