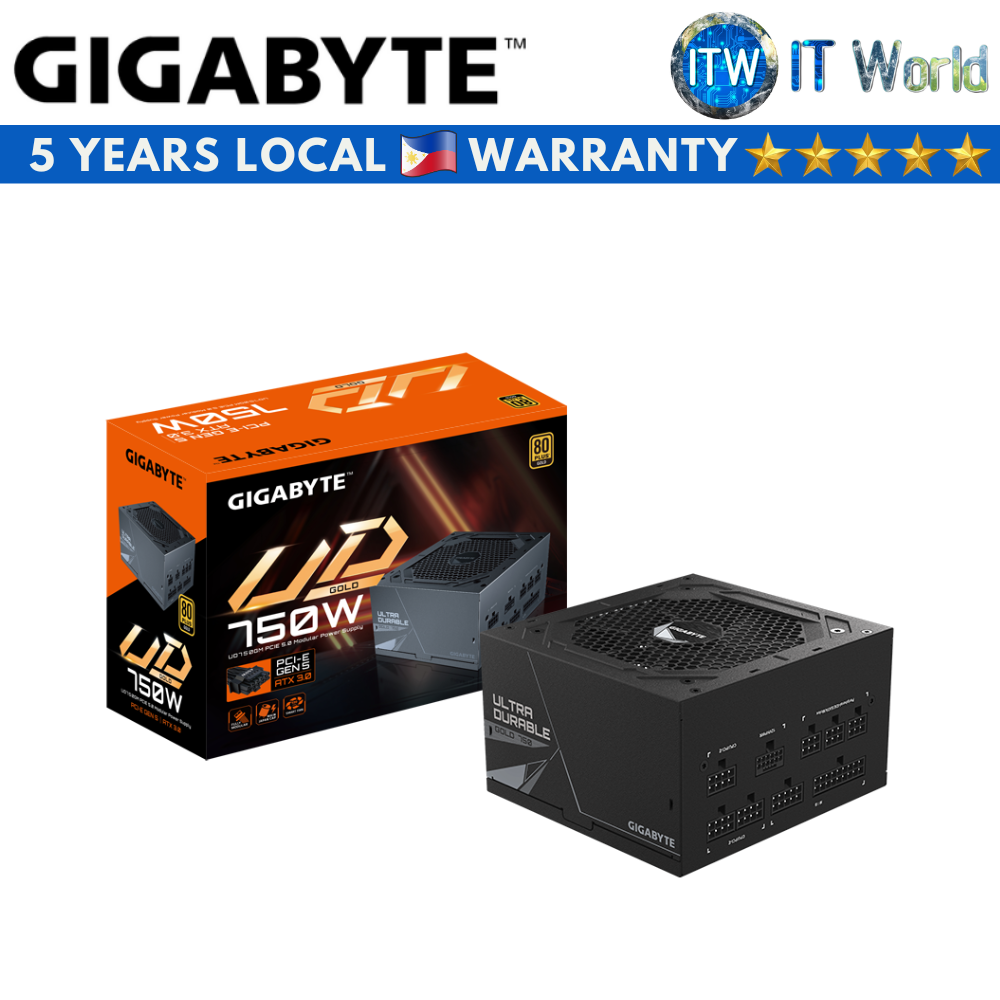

Gigabyte UD750GM PG5 750W 80+ Gold Fully Modular Power Supply Unit (GP-UD750GM-PG5)

Product Name: Itw | Gigabyte UD750GM PG5 750W 80+ Gold Fully Modular Power Supply Unit (GP-UD750GM-PG5)

KEY FEATURE

* Ultra Durable

> Main Japanese capacitors

> Enhanced thermal solution

> 120mm smart hydraulic bearing (HYB) fan

> OVP/OPP/SCP/UVP/OCP/OTP protection

* Support PCIe Gen 5.0 graphics cards

* Support Intel ATX 3.0 standard

* 80 PLUS Gold certified

* Fully modular design

* Compact design

* 5 years warranty (Adjusted according to different regions)

Specification

* Model: GP-UD750GM PG5

* Type: Intel Form Factor ATX 12V v3.0

* PFC: Active PFC (>0.9 typical)

* Input Voltage: 100-240 Vac (full range)

* Input Current: 12-6A

* Input Frequency: 60-50 Hz

* Output Capacity: 750W

* Dimension: 150 x 140 x 86mm

* Fan Type: 120mm Hydraulic Bearing(HYB)fan

* 80 PLUS: Gold

* Efficiency: 90% at typical load

* MTBF: >100,000 hours

* Protection: OVP/OPP/SCP/UVP/OCP/OTP

* Power Good Signal: 100-150ms

* Hold Up Time: >16ms

* Cable Type: Flat, All black

* Connectors

> ATX/MB 20+4 Pin x 1 : 610mm*1

> CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

> PCIe 16 Pin x 1: 700mm*1

> PCIe 6+2 Pin x 4 : 600mm+150mm*2

> SATA x 8: 600mm+150mm+150mm+150mm*2

> 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
