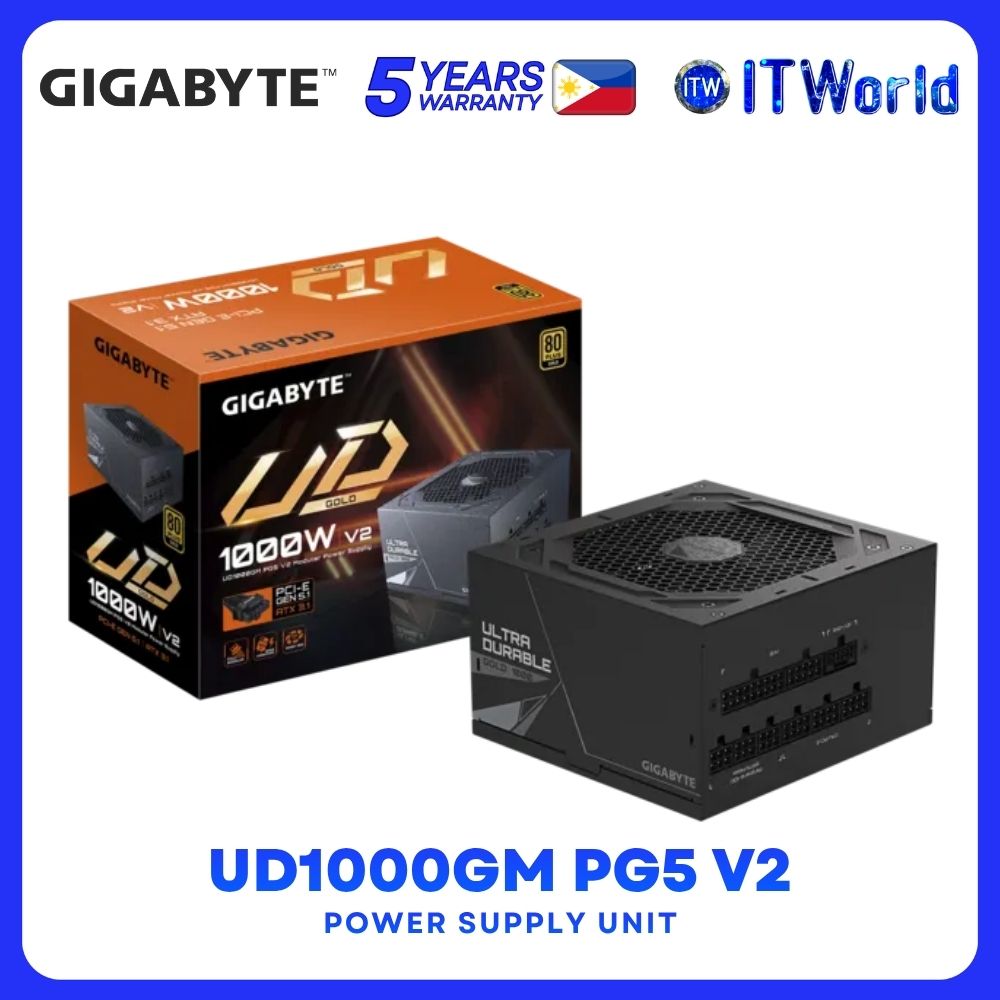

Gigabyte UD1000GM PG5 V2 1000W 80+ Gold Fully Modular Power Supply Unit GP-UD1000GM-PG5-V2
⚡🔥 Power your next-gen gaming or workstation build with the reliable and efficient Gigabyte UD1000GM PG5 V2 — engineered for stable high-performance computing, PCIe Gen 5.1 compatibility, and premium-grade durability.

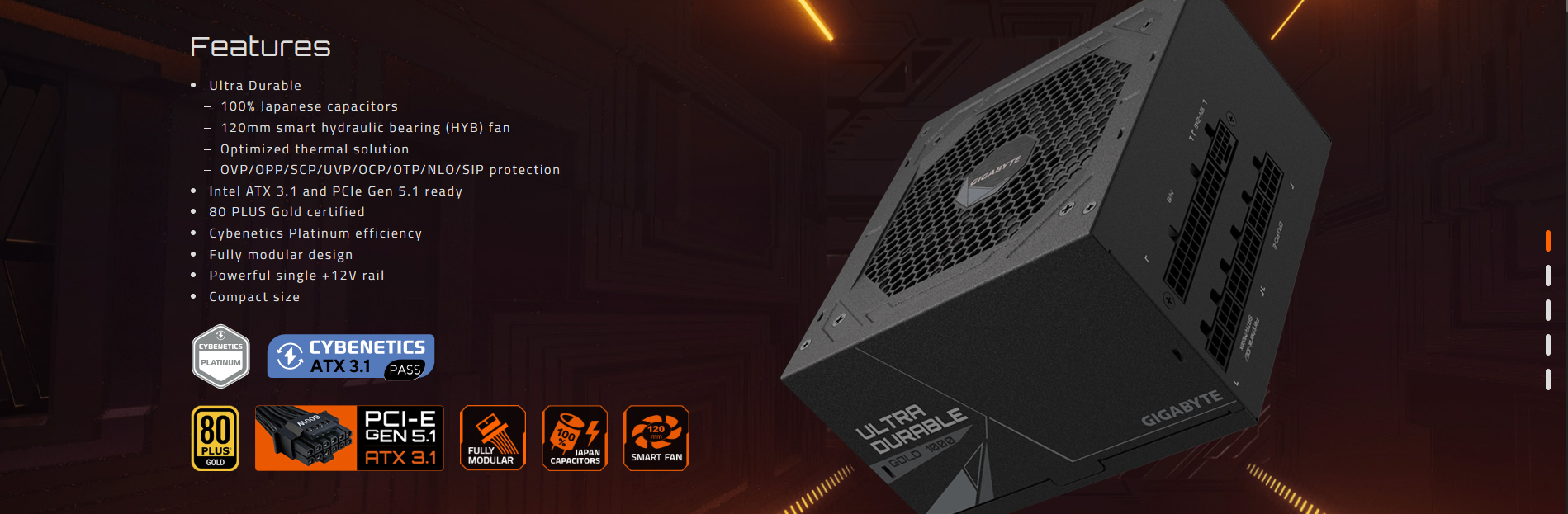

✨ Product Highlights:
🔋 1000W High Power Output — Ideal for high-end gaming PCs and creator workstations
🏅 80 PLUS Gold Certified — Up to 90% efficiency at typical load
⚙️ Intel ATX 3.1 & PCIe Gen 5.1 Ready for modern GPU compatibility
🛡️ Cybenetics Platinum Efficiency Certified
🇯🇵 100% Japanese Capacitors for reliable long-term performance
🌪️ 120mm Smart Hydraulic Bearing (HYB) Fan for efficient cooling and quieter operation
❄️ Optimized Thermal Solution for stable system temperatures
🔌 Fully Modular Design for cleaner cable management
⚡ Powerful Single +12V Rail for dependable power delivery
🔒 Advanced Protection Features:
✔️ OVP
✔️ OPP
✔️ SCP
✔️ UVP
✔️ OCP
✔️ OTP
✔️ NLO
✔️ SIP
📋 Specifications:
🔹 Model: GP-UD1000GM PG5 V2
🔹 Form Factor: Intel ATX 12V v3.1
🔹 PFC: Active PFC (>0.9 typical)
🔹 Input Voltage: 100-240 Vac (Full Range)
🔹 Input Current: 15-6.5A
🔹 Input Frequency: 60-50 Hz
🔹 Efficiency: 90% at typical load
🔹 MTBF: >100,000 hours
🔹 Fan Type: 120mm Hydraulic Bearing (HYB) Fan
🔹 Cable Type: Embossed All-Black Cables
🔹 Compact PSU Size: 150 x 140 x 86 mm
🔌 Connectors:
✔️ ATX/MB 20+4 Pin x 1
✔️ CPU/EPS 4+4 Pin x 2
✔️ PCI-e 6+2 Pin x 4
✔️ PCI-e 12+4 Pin x 1
✔️ SATA x 8
✔️ 4-Pin Peripheral x3 + 4-Pin Floppy x 1
