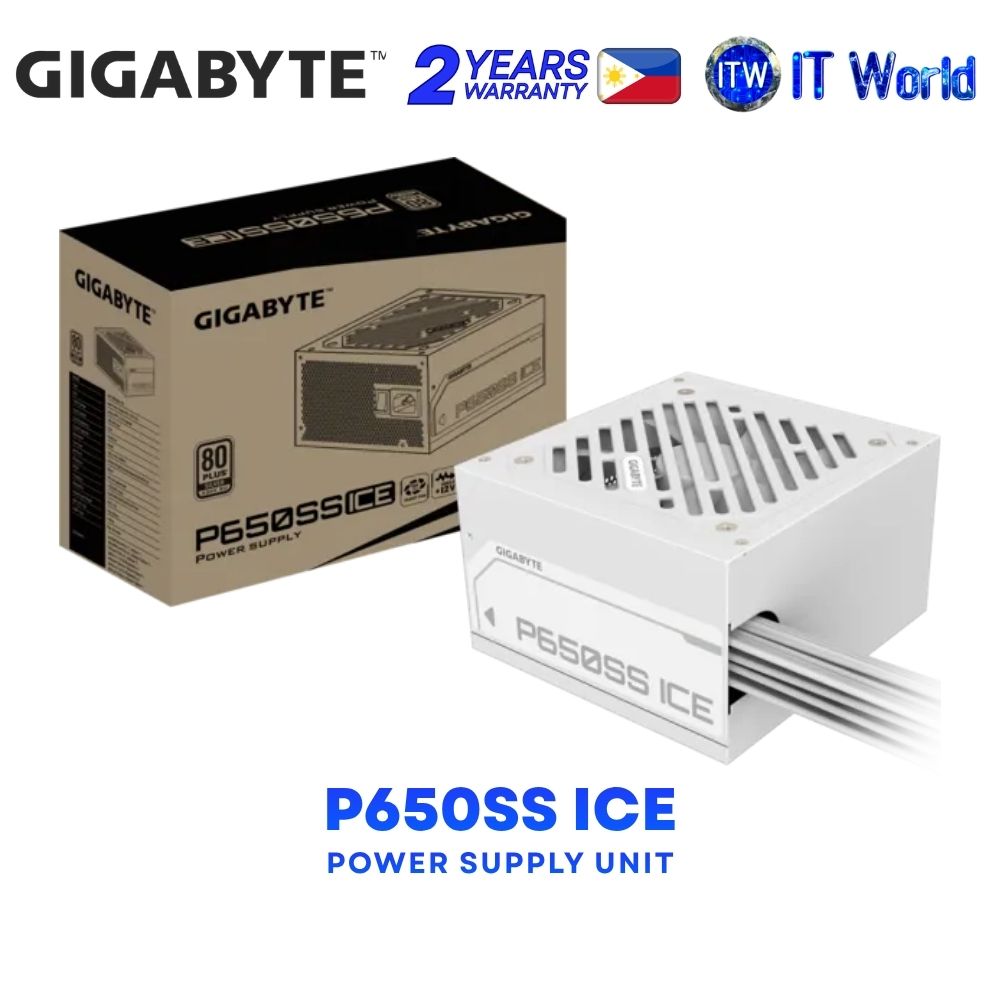

Gigabyte P650SS ICE 650W 80Plus Silver Fluid Dynamic Bearing Power Supply Unit GP-P650SS-ICE

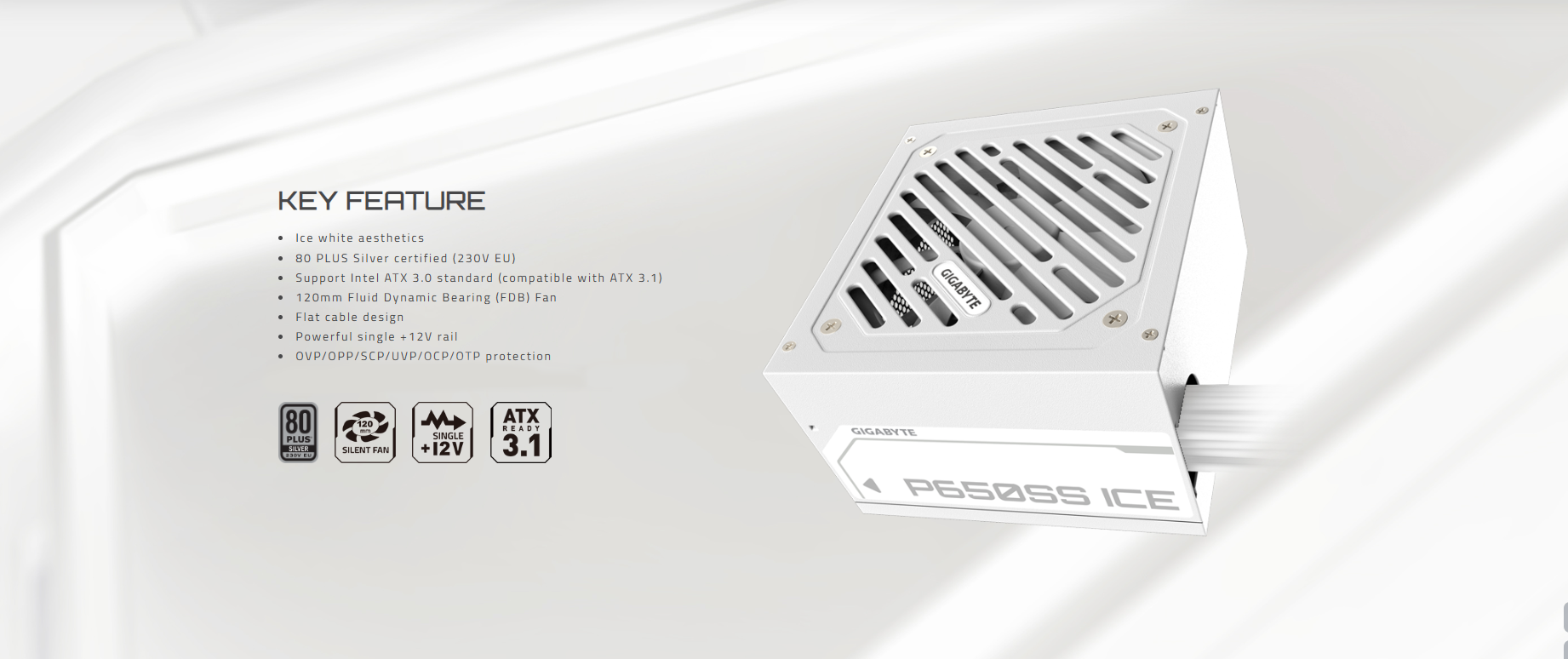

Key Features
❄️ Ice White Aesthetics – Clean all-white design for a stylish setup.
🏆 80 PLUS Silver Certified – 90% efficiency at typical load (230V EU).
⚙️ Intel ATX 3.0 Standard – Compatible with ATX 3.1.
🌀 120mm FDB Fan – Fluid Dynamic Bearing fan for cooling.
🔌 Flat Cable Design – All-white flat cables for a clean build.
💪 Powerful Single +12V Rail – Designed for stable power delivery.
🛡️ Multiple Protections – OVP, OPP, SCP, UVP, OCP, and OTP protection.
⏱️ MTBF: >100,000 hours
⚡ Output Capacity: 650W
🔋 Active PFC: >0.9 typical
Specifications
📋 Form Factor: Intel ATX 12V v3.0, compatible with ATX 3.1
📋 Input Voltage: 155–240 Vac
📋 Input Current: 6.3A
📋 Input Frequency: 50–60 Hz
📋 Power Good Signal: 100–150ms
📋 Hold Up Time: >16ms
📋 Fan: 120mm Fluid Dynamic Bearing (FDB)
📋 Cable Type: Flat, All White
📋 Dimensions: 150 x 140 x 86 mm
Connectors
🔌 ATX/MB: 20+4 Pin x 1 – 600mm
🔌 CPU/EPS: 4+4 Pin x 2 – 650mm + 120mm
🔌 PCI-e: 6+2 Pin x 2 – 600mm
🔌 SATA + Peripheral: SATA x 3 + 4 Pin Peripheral x 1
🔌 SATA + Peripheral: SATA x 2 + 4 Pin Peripheral x 2
