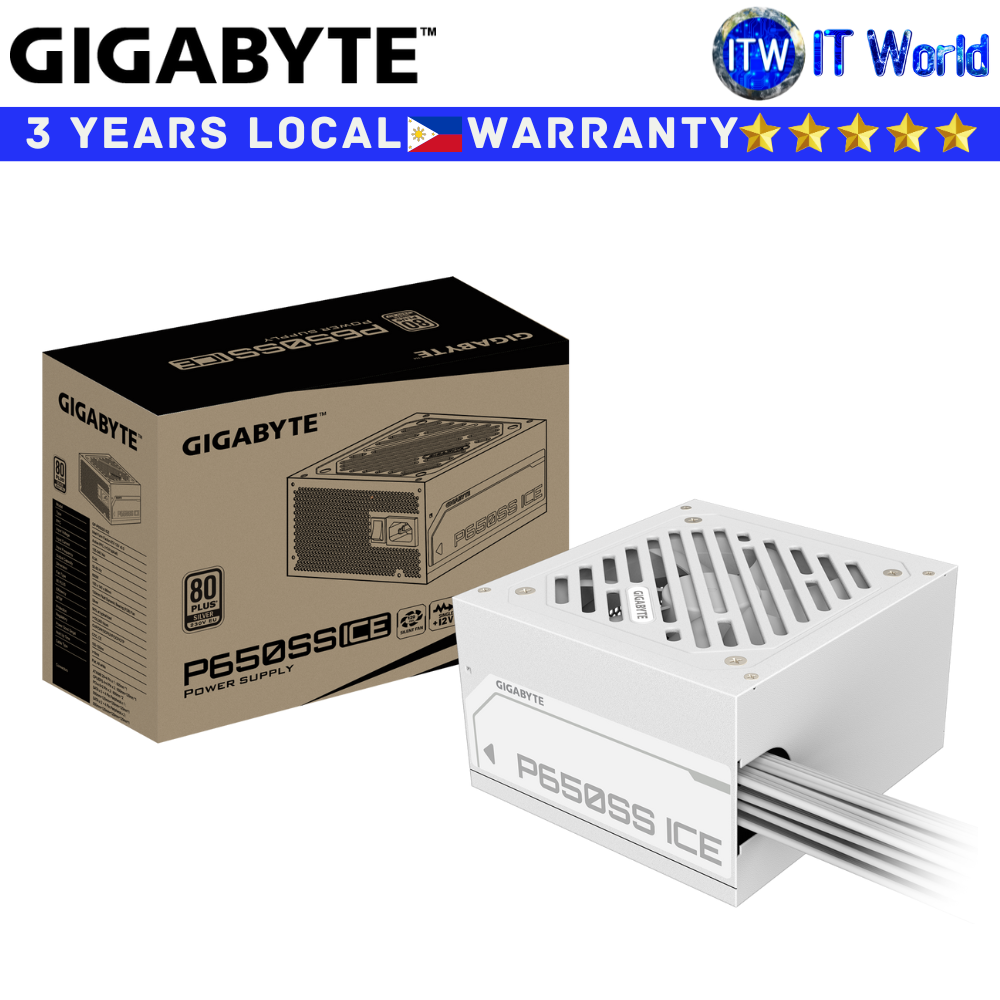

Gigabyte PSU 650W Power Supply Unit P650SS 80+ Silver Fluid Dynamic Bearing (GP-P650SS) | itw

Product Name: Itw | Gigabyte PSU 650W Power Supply Unit P650SS 80+ Silver Fluid Dynamic Bearing (GP-P650SS)

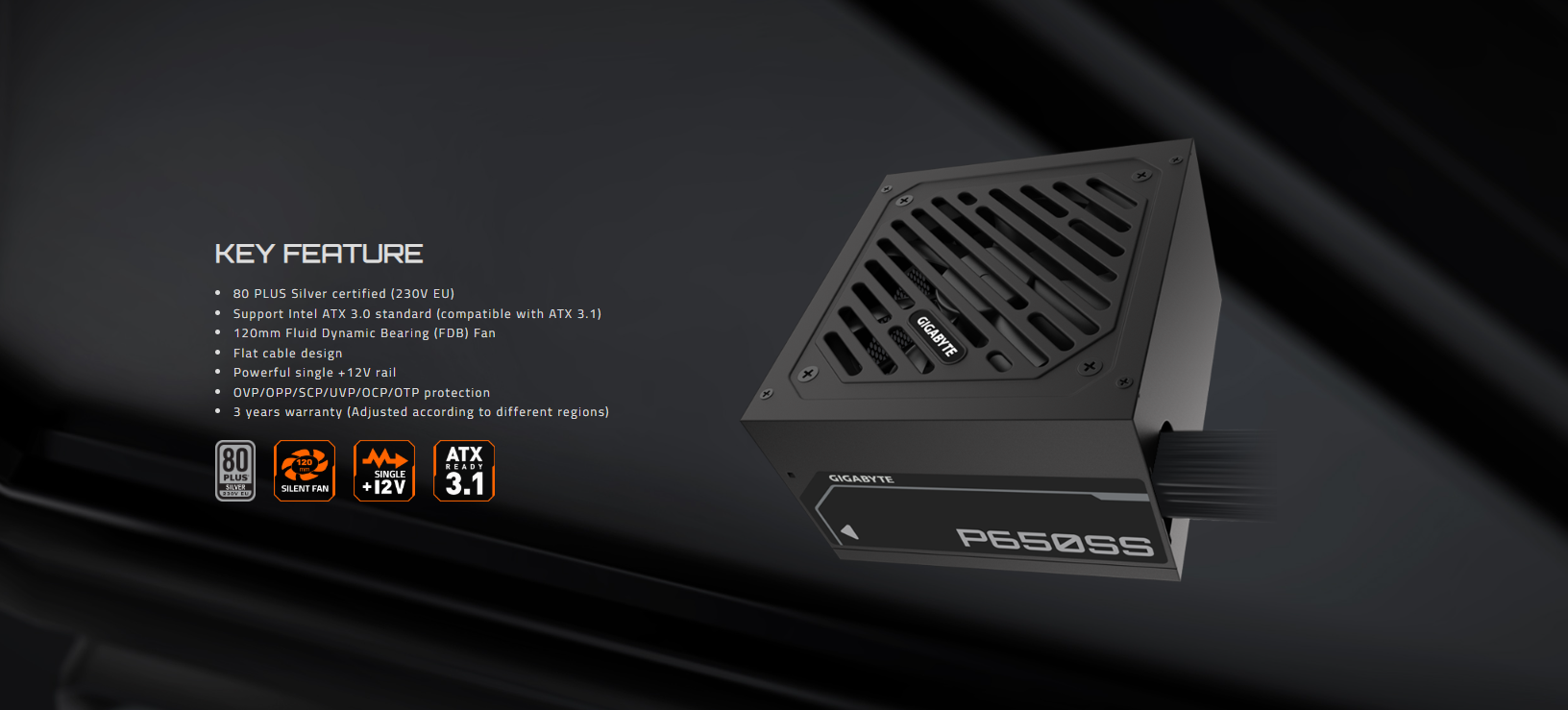

KEY FEATURE

- 80 PLUS Silver certified (230V EU)

- Support Intel ATX 3.0 standard (compatible with ATX 3.1)

- 120mm Fluid Dynamic Bearing (FDB) Fan

- Flat cable design

- Powerful single +12V rail

- OVP/OPP/SCP/UVP/OCP/OTP protection

Specification

Model: GP-P650SS

Type: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

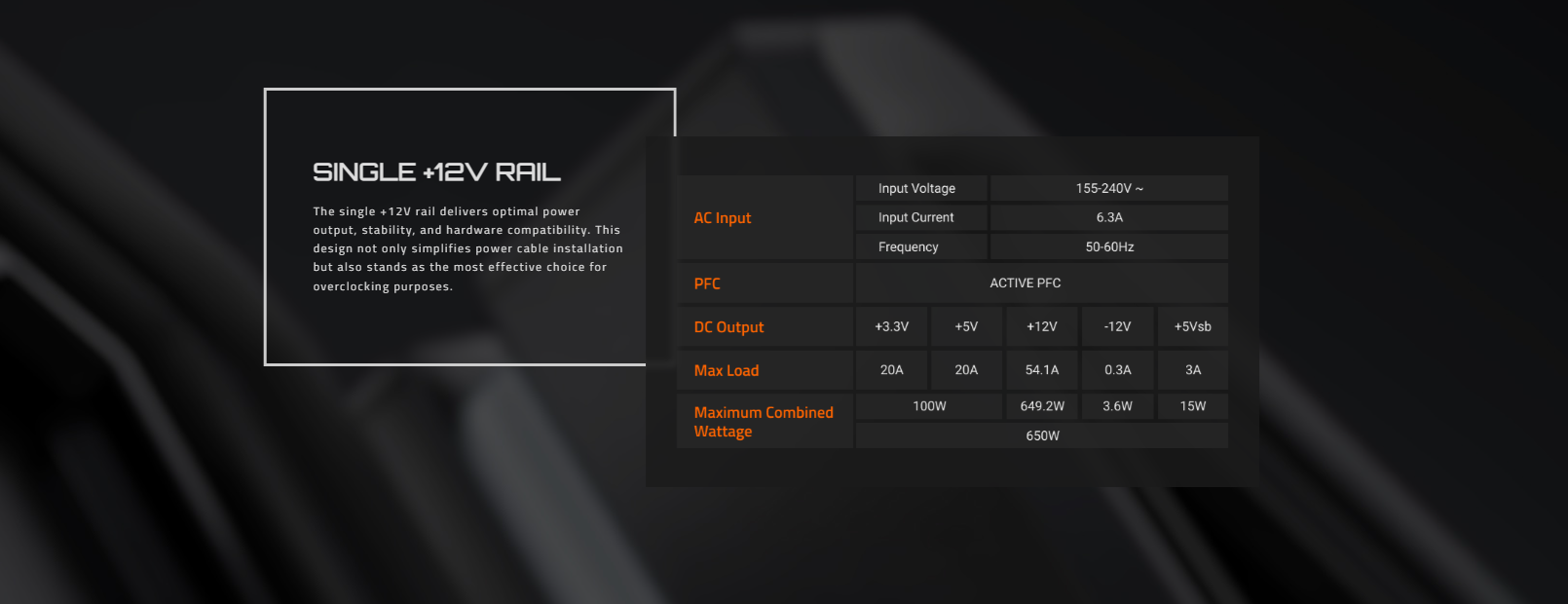

PFC: Active PFC (>0.9 typical)

Input Voltage: 155-240 Vac

Input Current: 6.3A

Input Frequency: 50-60 Hz

Output Capacity: 650W

Dimensions: 150 x 140 x 86 mm

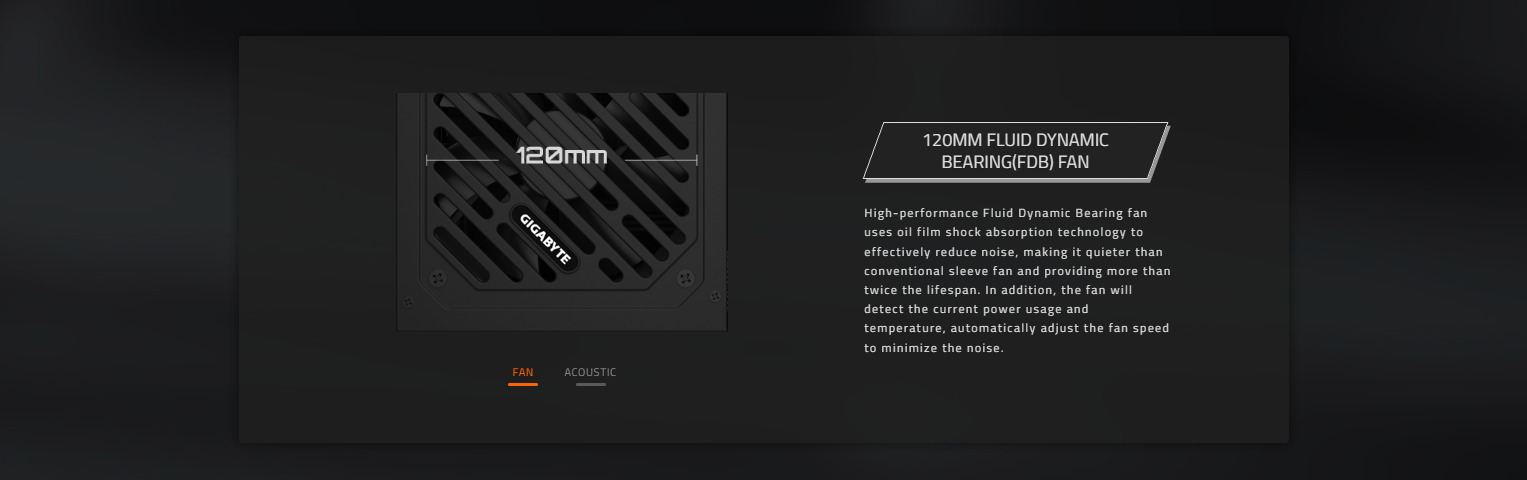

Fan Type: 120mm Fluid Dynamic Bearing (FDB) fan

80 PLUS: Silver

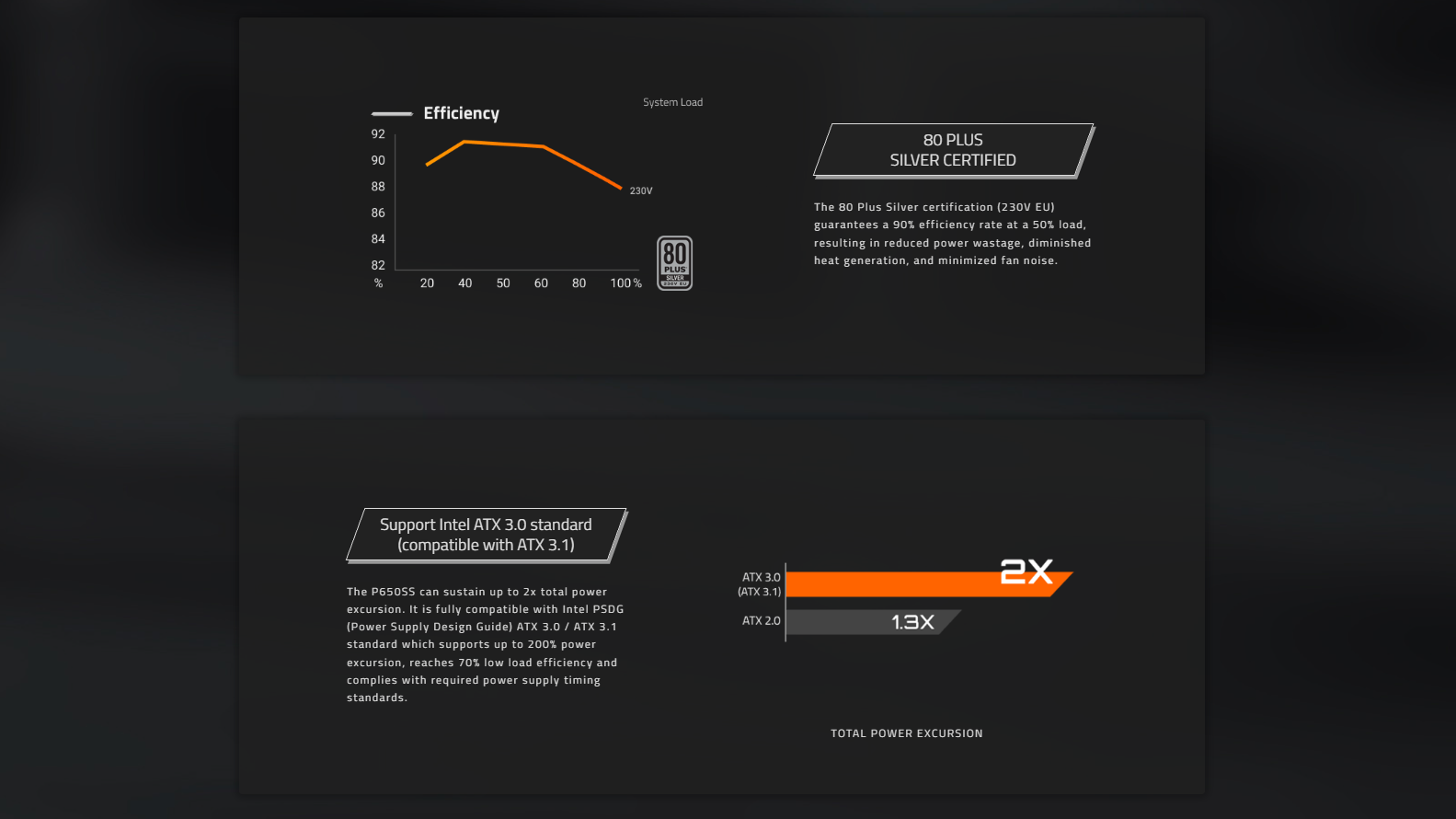

Efficiency: 90% at typical load (230V EU)

MTBF: >100,000 hours

Protections: OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal: 100-150ms

Hold Up Time: >16ms

Cable Type: Flat, All black

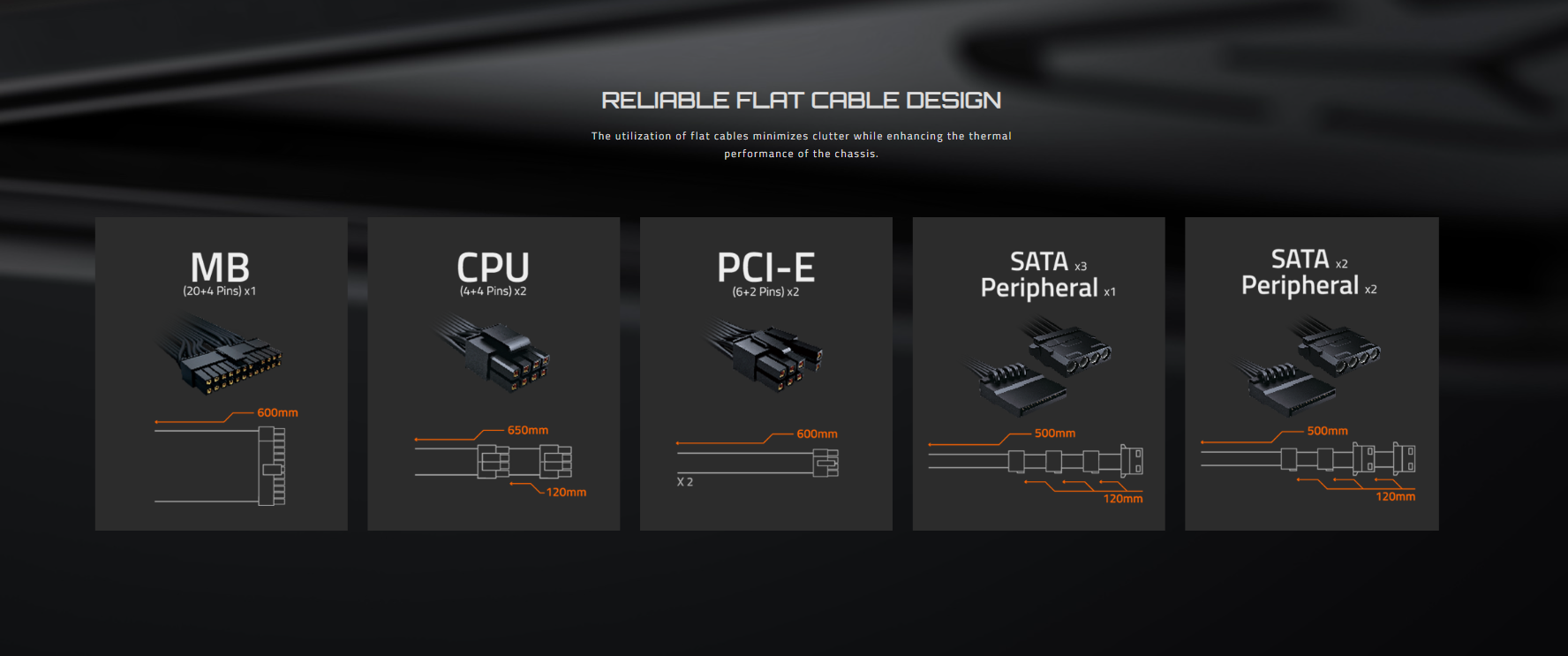

Connectors:

- ATX/MB 20+4 Pin x 1 : 600mm*1

- CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1

- PCI-e 6+2 Pin x 2 : 600mm*2

- SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1

- SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
