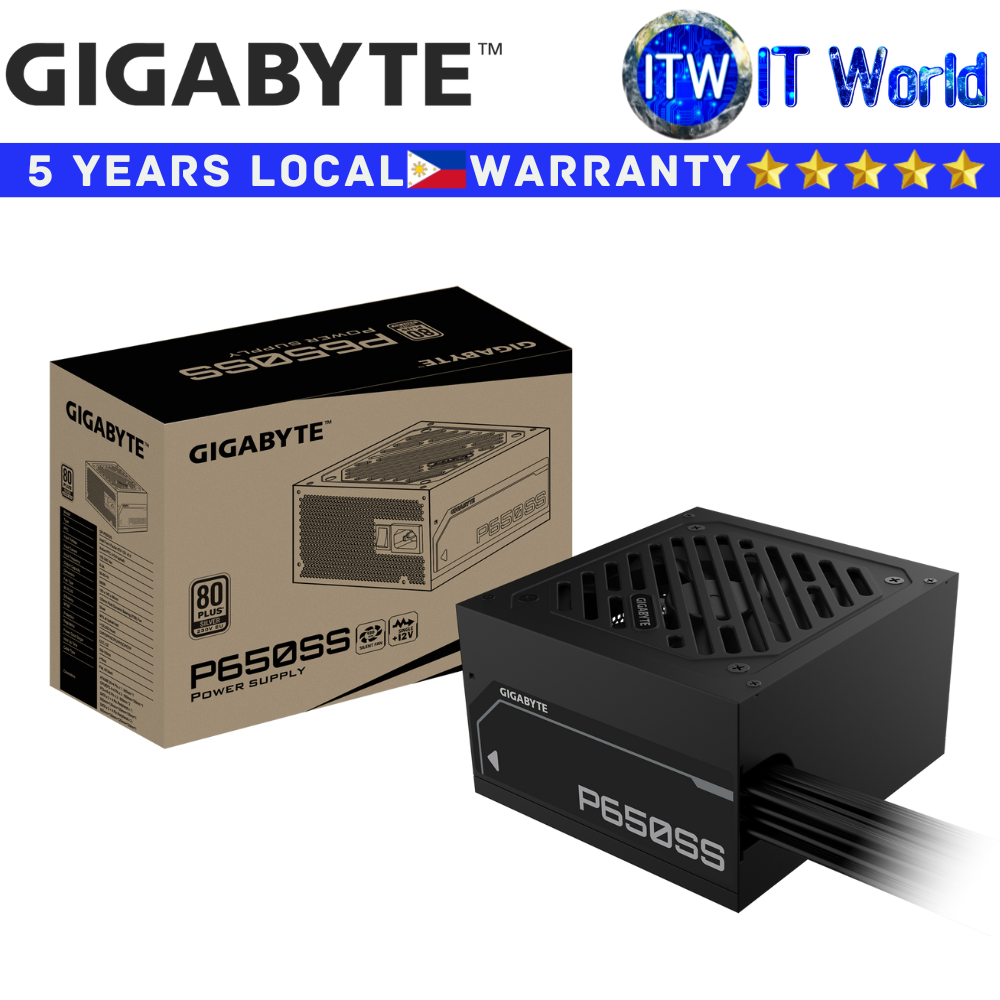

Product Name: Itw | Gigabyte PSU 650W Power Supply Unit P650SS 80+ Silver Fluid Dynamic Bearing (GP-P650SS)
KEY FEATURE
- 80 PLUS Silver certified (230V EU)
- Support Intel ATX 3.0 standard (compatible with ATX 3.1)
- 120mm Fluid Dynamic Bearing (FDB) Fan
- Flat cable design
- Powerful single +12V rail
- OVP/OPP/SCP/UVP/OCP/OTP protection
Specification
Model: GP-P650SS
Type: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
PFC: Active PFC (>0.9 typical)
Input Voltage: 155-240 Vac
Input Current: 6.3A
Input Frequency: 50-60 Hz
Output Capacity: 650W
Dimensions: 150 x 140 x 86 mm
Fan Type: 120mm Fluid Dynamic Bearing (FDB) fan
80 PLUS: Silver
Efficiency: 90% at typical load (230V EU)
MTBF: >100,000 hours
Protections: OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal: 100-150ms
Hold Up Time: >16ms
Cable Type: Flat, All black
Connectors:
- ATX/MB 20+4 Pin x 1 : 600mm*1
- CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1
- PCI-e 6+2 Pin x 2 : 600mm*2
- SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
- SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
