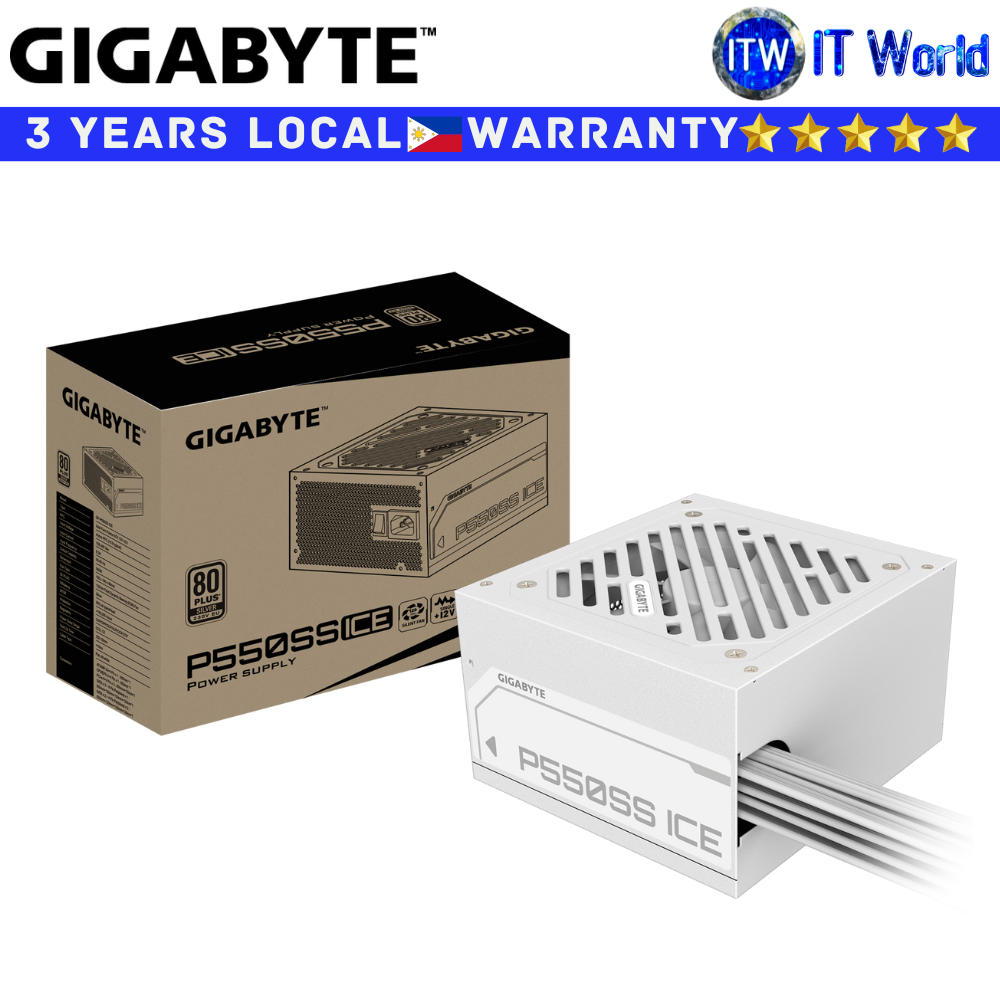

Itw | Gigabyte PSU 550W Power Supply Unit P550SS Ice 80+ Silver Active PFC White (GP-P550SS-ICE)

Product Name: Itw | Gigabyte PSU 550W Power Supply Unit P550SS Ice 80+ Silver Active PFC White (GP-P550SS-ICE)

Key Features

* Ice white aesthetics

* 80 PLUS Silver certified (230V EU)

* Support Intel ATX 3.0 standard (compatible with ATX 3.1)

* 120mm Fluid Dynamic Bearing (FDB) Fan

* Flat cable design

* Powerful single +12V rail

* OVP/OPP/SCP/UVP/OCP/OTP protection

Specification

> Model: GP-P550SS ICE

> Type: Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

> PFC: Active PFC (>0.9 typical)

> Input Voltage: 155-240 Vac

> Input Current: 6.3A

> Input Frequency: 50-60Hz

> Output Capacity: 550W

> Dimension: 150 x 140 x 86mm

> Fan Type: 120mm Fluid Dynamic Bearing (FDB) fan

> 80 PLUS: Silver

> Efficiency: 90% at typical load (230V EU)

> MTBF: >100,000 hours

> Protection: OVP / OPP / SCP / UVP / OCP / OTP

> Power Good Signal: 100-150ms

> Hold Up Time: >16ms

> Cable Type: Flat, All white

> Connectors

- ATX/MB 20+4 Pin x 1: 600mm*1

- CPU/EPS 4+4 Pin x 1: 650mm*1

- PCI-e 6+2 Pin x 2: 600mm+120mm*1

- SATA x 3 + 4 Pin Peripheral x 1: 500mm + 120mm + 120mm + 120mm*1

- SATA x 2 + 4 Pin Peripheral x 2: 500mm + 120mm + 120mm + 120mm*1
