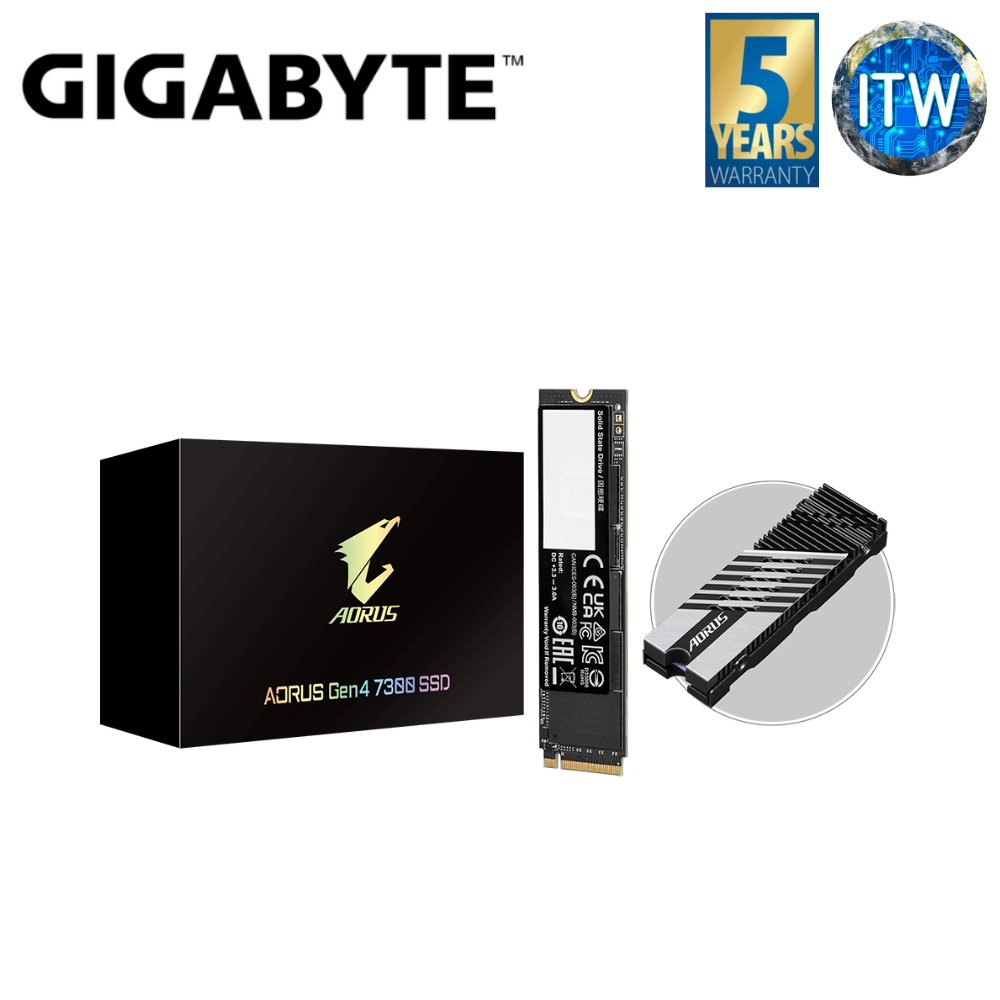

Gigabyte Aorus Gen4 7300 2TB PCIe4.0x4 NVMe 1.4 Internal SSD w/ Heatsink (GP-AG4732TB)

Product Name: ITW | Gigabyte Aorus Gen4 7300 2TB PCIe4.0x4 NVMe 1.4 Internal SSD w/ Heatsink (GP-AG4732TB)

■ Form Factor: M.2 2280

■ Interface: PCI-Express 4.0 x4, NVMe 1.4

■ Total Capacity: 2000GB*

■ Sequential Read Speed: up to 7300 MB/s**

■ Sequential Write speed: up to 6850 MB/s**

■ Wear Leveling, Over-Provision technologies

■ TRIM & S.M.A.R.T supported

■ AES-256 Supported

■ High Efficient Heat Spreader with Nanocarbon Coating

■ Warranty: Limited 5-years

*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.

**Speeds based on internal testing. Actual performance may vary.

Specification

✎ Interface: PCI-Express 4.0 x4, NVMe 1.4

✎ Form Factor: M.2 2280

✎ Total Capacity: 2000GB

✎ NAND: 3D TLC NAND Flash

✎ External DDR Cache: DDR4L 2GB

✎ Sequential Read speed: Up to 7300 MB/s

✎ Sequential Write speed: Up to 6850 MB/s

✎ Dimension: 80 x 22 x 2.3 mm (with heatsink: 80.5 x 11.25 x 23.5 mm)

✎ Mean time between failure (MTBF): 1.6 million hours

✎ Power Consumption (Active): Average: R : 8.1W, W : 7.4W

✎ Power Consumption(Idle)(ASPT on): <30mW

✎ Temperature (Operating): 0°C to 70°C

✎ Temperature (Storage): -40°C to 85°C

✎ Warranty

■ Limited 5-years or 1400TBW.

■ Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )

*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.

■ When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)

✎ Note

■ Test system configuration: configuration may vary by models, we will choose the latest platform for verification.

■ Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.

■ Speeds based on internal testing. Actual performance may vary.

■ 1GB = 1 billion bytes. Actual useable capacity may vary.

✎ Test Configuration

■ OS: Windows 11 22H2 (OS build 22621.819)

■ CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G

■ Memory: DDR5 5600 16GBx2

■ Chipset: AM5 X670 (X670E AORUS MASTER)
