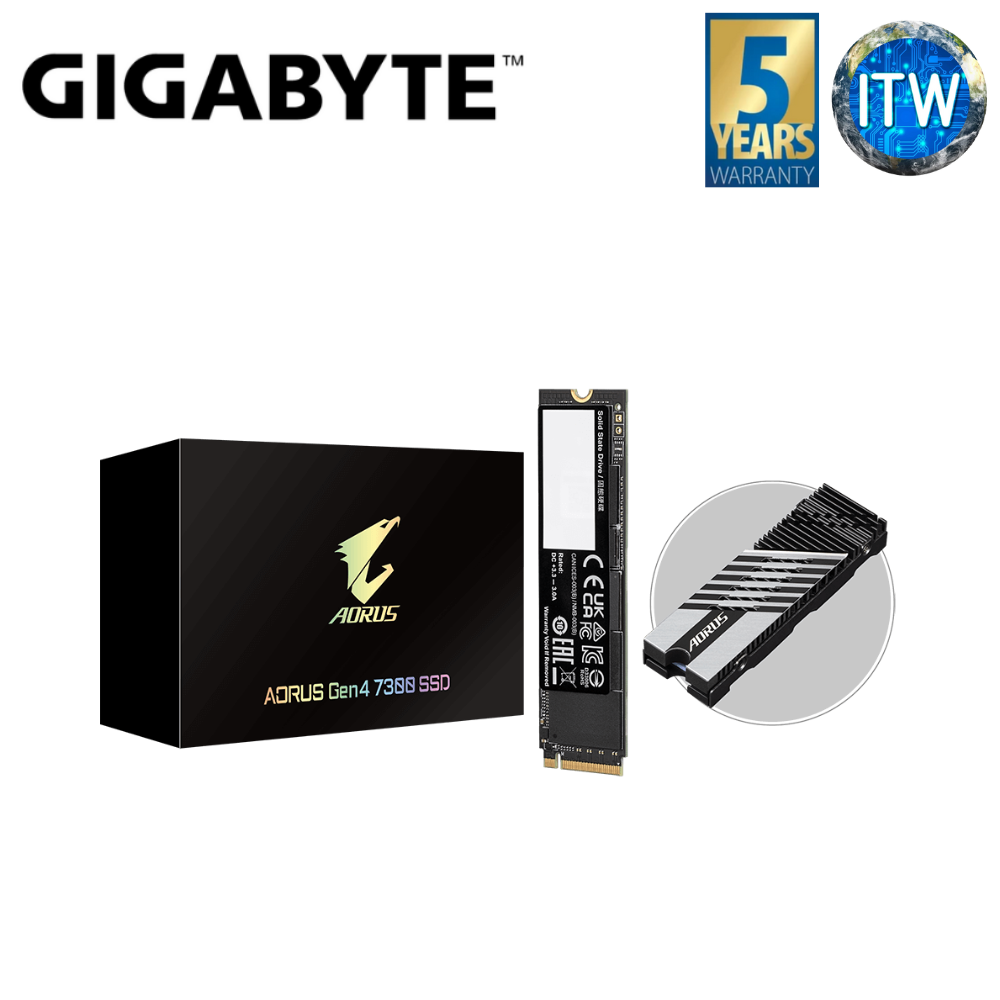

Product Name: ITW | Gigabyte Aorus Gen4 7300 2TB PCIe4.0x4 NVMe 1.4 Internal SSD w/ Heatsink (GP-AG4732TB)
■ Form Factor: M.2 2280
■ Interface: PCI-Express 4.0 x4, NVMe 1.4
■ Total Capacity: 2000GB*
■ Sequential Read Speed: up to 7300 MB/s**
■ Sequential Write speed: up to 6850 MB/s**
■ Wear Leveling, Over-Provision technologies
■ TRIM & S.M.A.R.T supported
■ AES-256 Supported
■ High Efficient Heat Spreader with Nanocarbon Coating
■ Warranty: Limited 5-years
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.
Specification
✎ Interface: PCI-Express 4.0 x4, NVMe 1.4
✎ Form Factor: M.2 2280
✎ Total Capacity: 2000GB
✎ NAND: 3D TLC NAND Flash
✎ External DDR Cache: DDR4L 2GB
✎ Sequential Read speed: Up to 7300 MB/s
✎ Sequential Write speed: Up to 6850 MB/s
✎ Dimension: 80 x 22 x 2.3 mm (with heatsink: 80.5 x 11.25 x 23.5 mm)
✎ Mean time between failure (MTBF): 1.6 million hours
✎ Power Consumption (Active): Average: R : 8.1W, W : 7.4W
✎ Power Consumption(Idle)(ASPT on): <30mW
✎ Temperature (Operating): 0°C to 70°C
✎ Temperature (Storage): -40°C to 85°C
✎ Warranty
■ Limited 5-years or 1400TBW.
■ Limited warranty based on 5 years or 1400TBW, whichever comes first. (*TBW is evaluated by JEDEC workload standard. )
*TBW (Terabyte Written): Terabytes Written is the total amount of data that can be written into a SSD before it is likely to fail.
■ When the usage of an NVME SSD as indicated by the "Percentage Used" (SMART ID: 05) in SMART page of "GIGABYTE SSD toolbox" reaches 100 means out of warranty. (A new unused product will show the number of 0)
✎ Note
■ Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
■ Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark and IOmeter 1.1.0.
■ Speeds based on internal testing. Actual performance may vary.
■ 1GB = 1 billion bytes. Actual useable capacity may vary.
✎ Test Configuration
■ OS: Windows 11 22H2 (OS build 22621.819)
■ CPU: AMD Ryzen 9 7950X 16-Core Processor 4.5G
■ Memory: DDR5 5600 16GBx2
■ Chipset: AM5 X670 (X670E AORUS MASTER)
