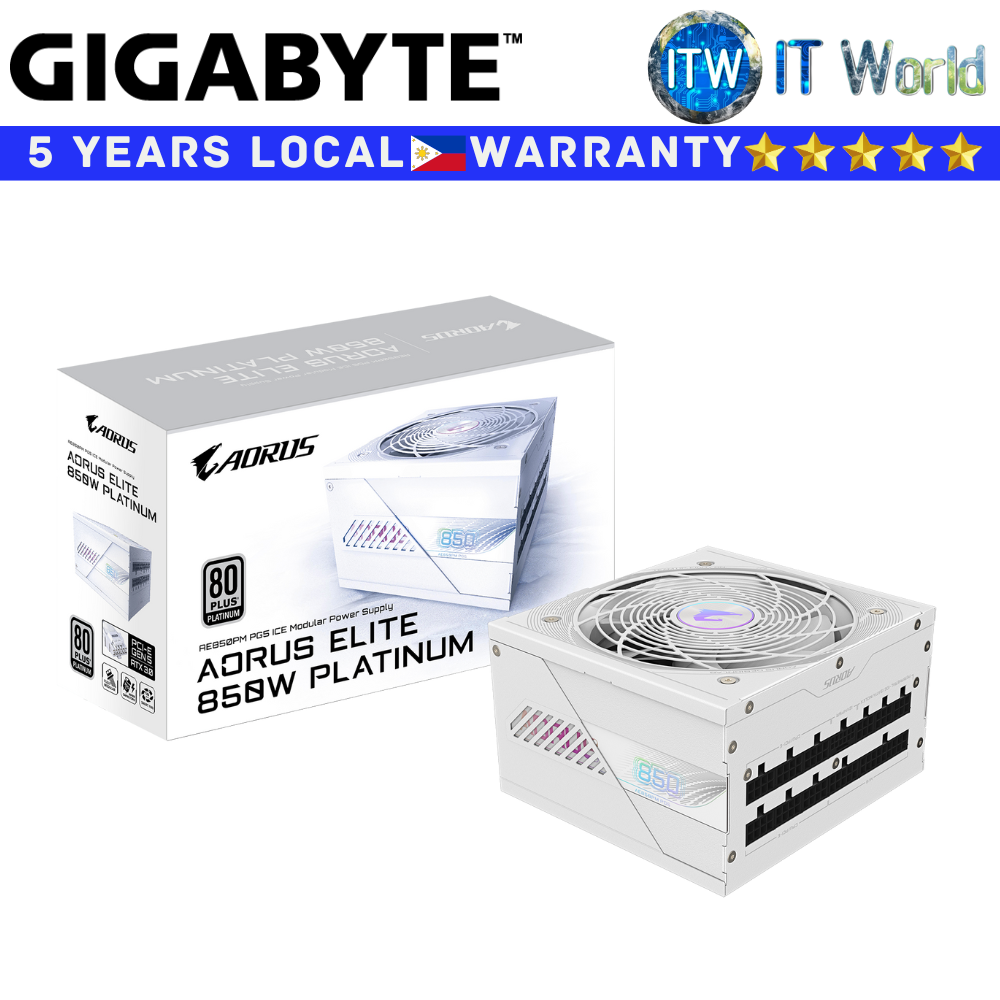

Gigabyte Aorus Elite PSU 850W Power Supply Unit AE850PM PG5 Ice Modular (GP-AE850PM-PG5-ICE)

Product Name: Itw | Gigabyte Aorus Elite PSU 850W Power Supply Unit AE850PM PG5 Ice Modular (GP-AE850PM-PG5-ICE)

Key Feature

* ATX 3.0 and PCIe Gen 5.0 ready

* 80 PLUS Platinum certified

* 100% Japanese capacitors

* 120mm smart Fluid Dynamic Bearing (FDB) fan

* Compact design

* Fully modular design

* Powerful single +12V rail

* OVP / OPP / SCP / UVP / OCP / OTP protection

Specification

* Model: GP-AE850PM PG5 ICE

* Type: Intel Form Factor ATX 12V v3.0

* PFC: Active PFC (>0.9 typical)

* Input Voltage: 100-240 Vac (full range)

* Input Current: 12-6A

* Input Frequency: 60-50 Hz

* Output Capacity: 850W

* Dimension150 x 140 x 86mm

* Fan Type120mm Fluid Dynamic Bearing (FDB) Fan

* 80 PLUS: Platinum

* Efficiency: 92% at typical load

* MTBF: >100,000 hours

* Protection: OVP / OPP / SCP / UVP / OCP / OTP

* Power Good Signal: 100-150ms

* Hold Up Time: >16ms

* Cable Type: Flat, All white

* Connectors

> ATX/MB 20+4 Pin x 1: 650mm*1

> CPU/EPS 4+4 Pin x 2: 700mm*2

> PCI-e 16 Pin x 1: 700mm*1

> PCI-e 6+2 Pin x 6: 650mm+150mm*2, 750mm*2

> SATA x 8: 600mm+150mm+150mm+150mm*2

> 4 Pin Peripheral x 4: 500mm+150mm+150mm+150mm*1
