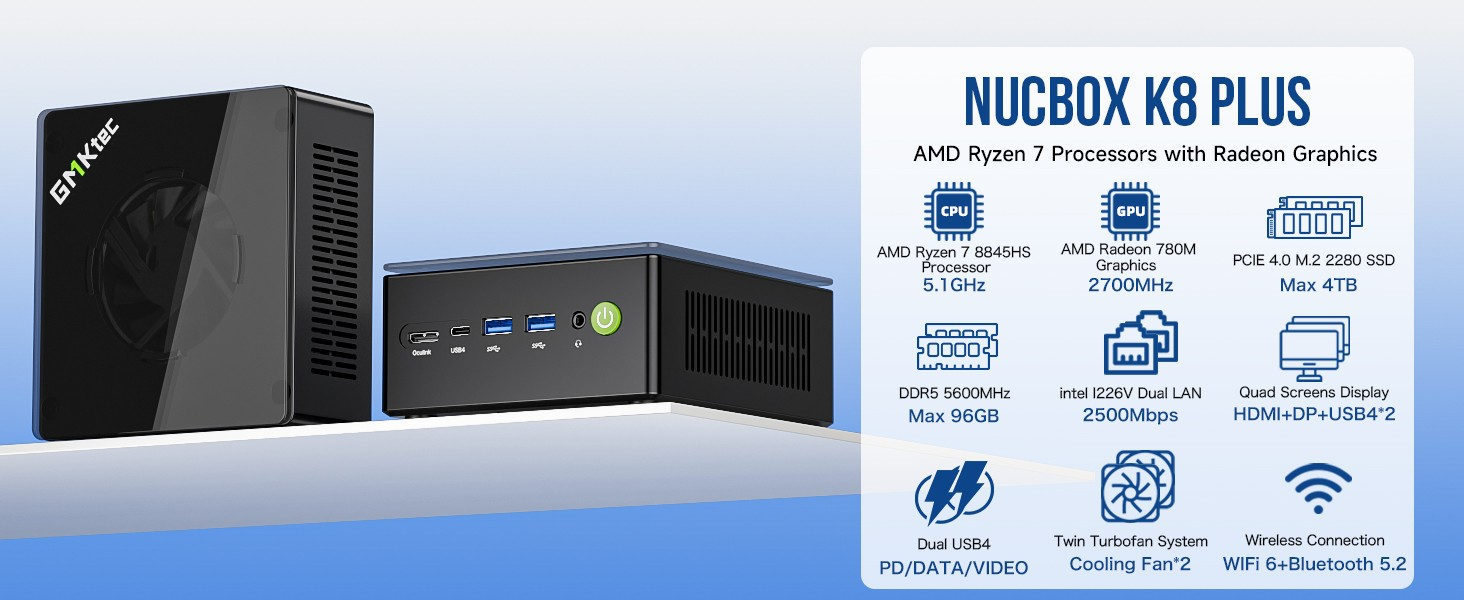

Product Name: Itw | GMKtec Mini PC All in One Desktop Nucbox AMD Ryzen 7 8845HS (GMK-K8+/8845HS/32/1TB/BK)
Specification
CPU:

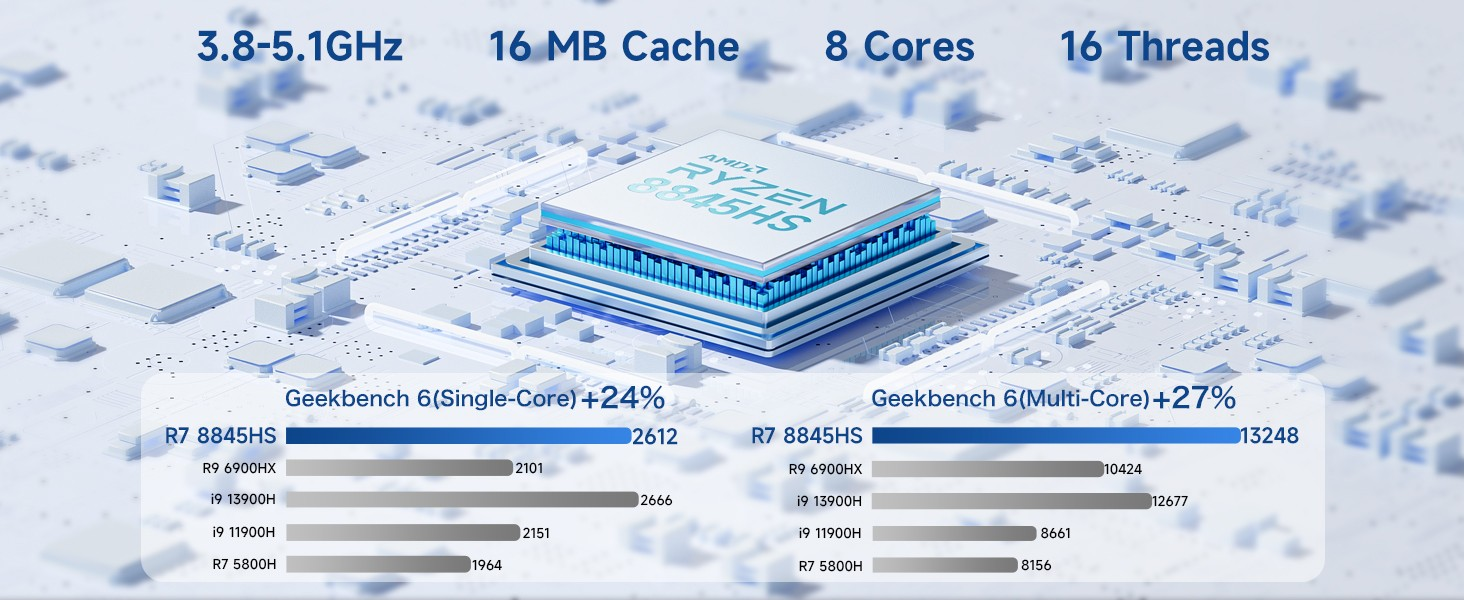

- AMD Ryzen™ 7 8845HS, 8 cores/16 threads, TSMC 4nm FinFET technology, up to 5.1 GHz

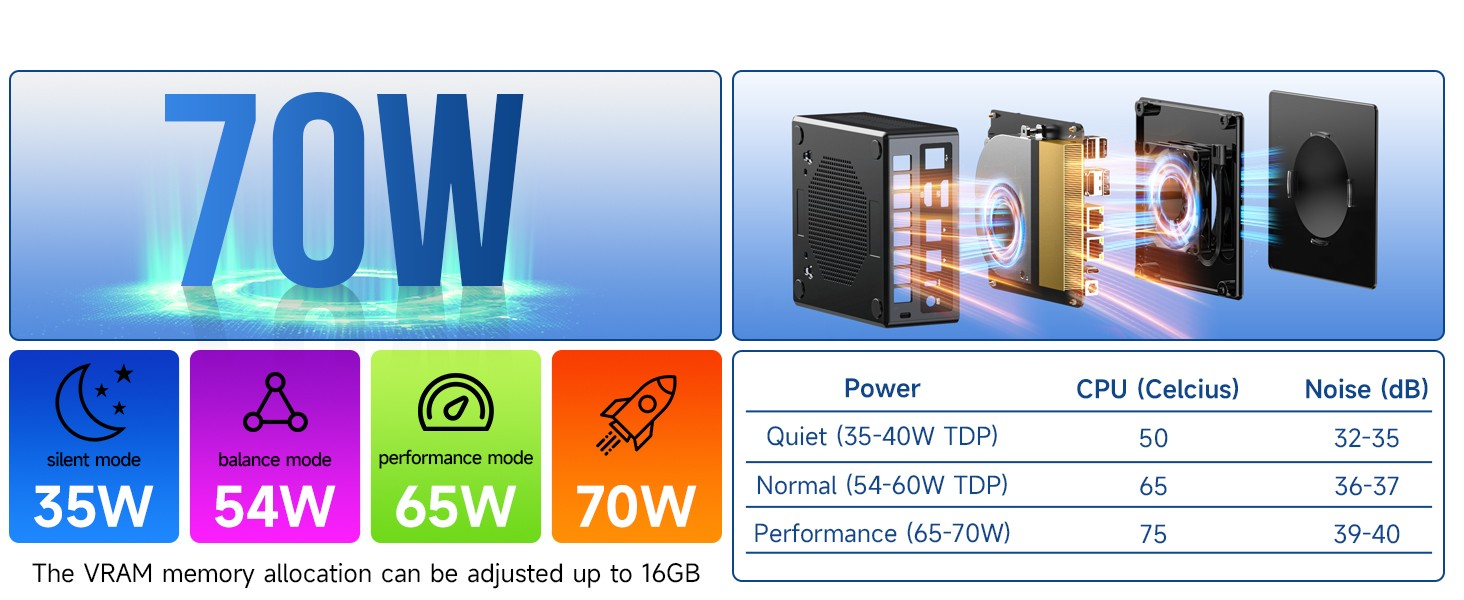

- 8 MB L2 Cache/16 MB L3 Cache, TDP: 35~54 W, Max TDP 70 W, stable at 65 W
GPU:
- AMD Radeon™ 780M, 12 cores, 2700 MHz GPU frequency
- Performance almost on par with an NVIDIA GTX 1650 Ti, supports FSR 2.0+
Execution units: 12

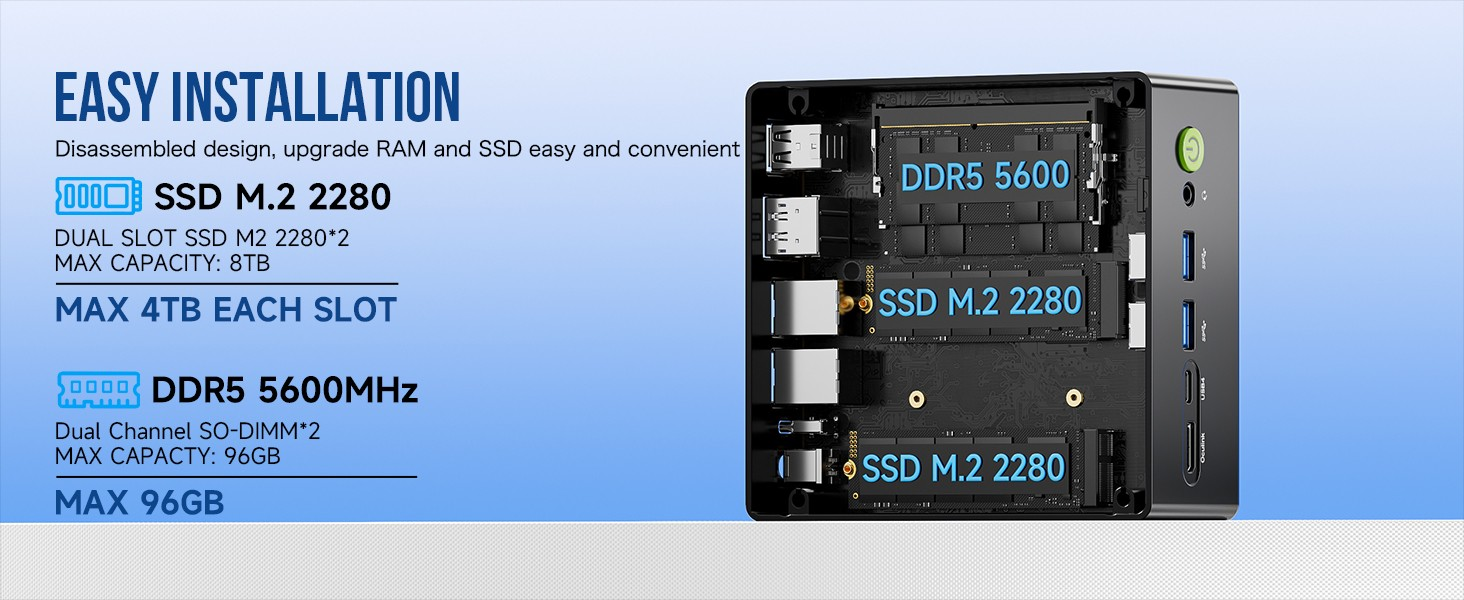

Memory (RAM):
- DDR5 5600 MT/s, SO-DIMM*2, 32 GB available
- No support for DDR4
Maximum storage capacity: SO-DIMM*2, supports up to 48GB
Memory (ROM):
- PCIe 4.0 M.2 2280 SSD, 1TB available
- Supports PCIe 3.0/4.0 only, no SATA hard drives
Memory expansion: M.2 2280 PCIe 4.0 up to 4TB*2, supports 2280*2 nVMEX4 SSD @ PCIe GEN4 X4

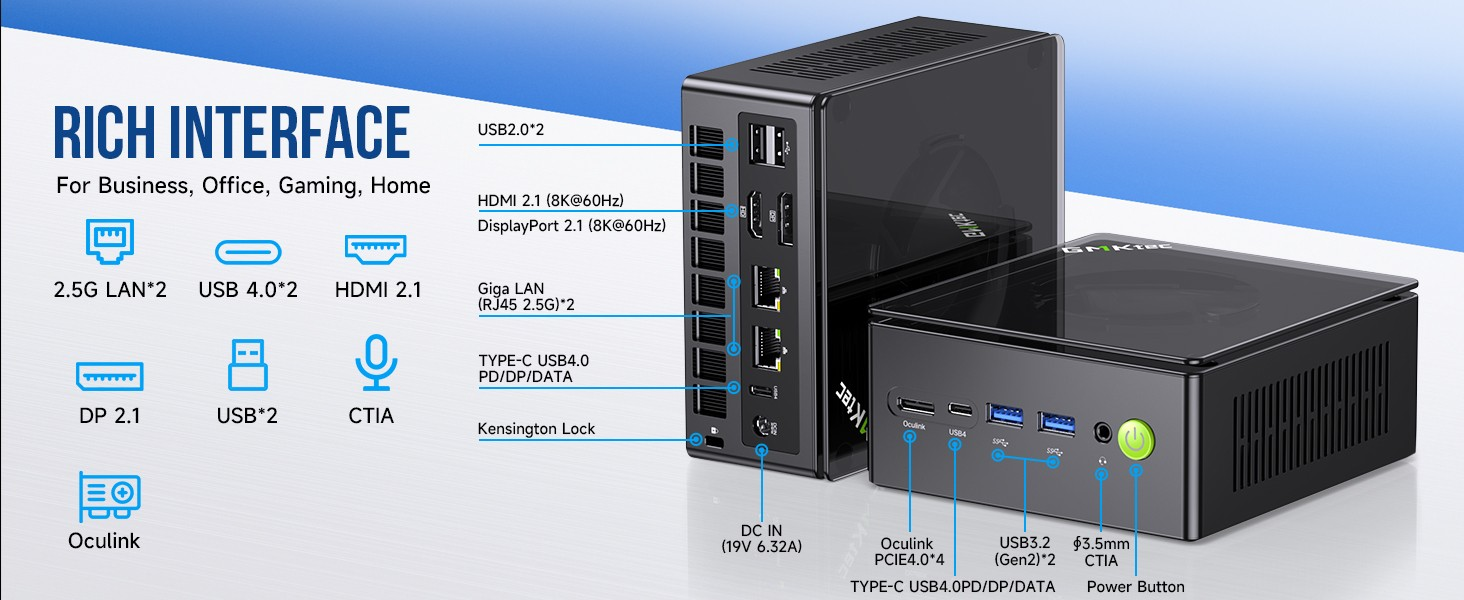

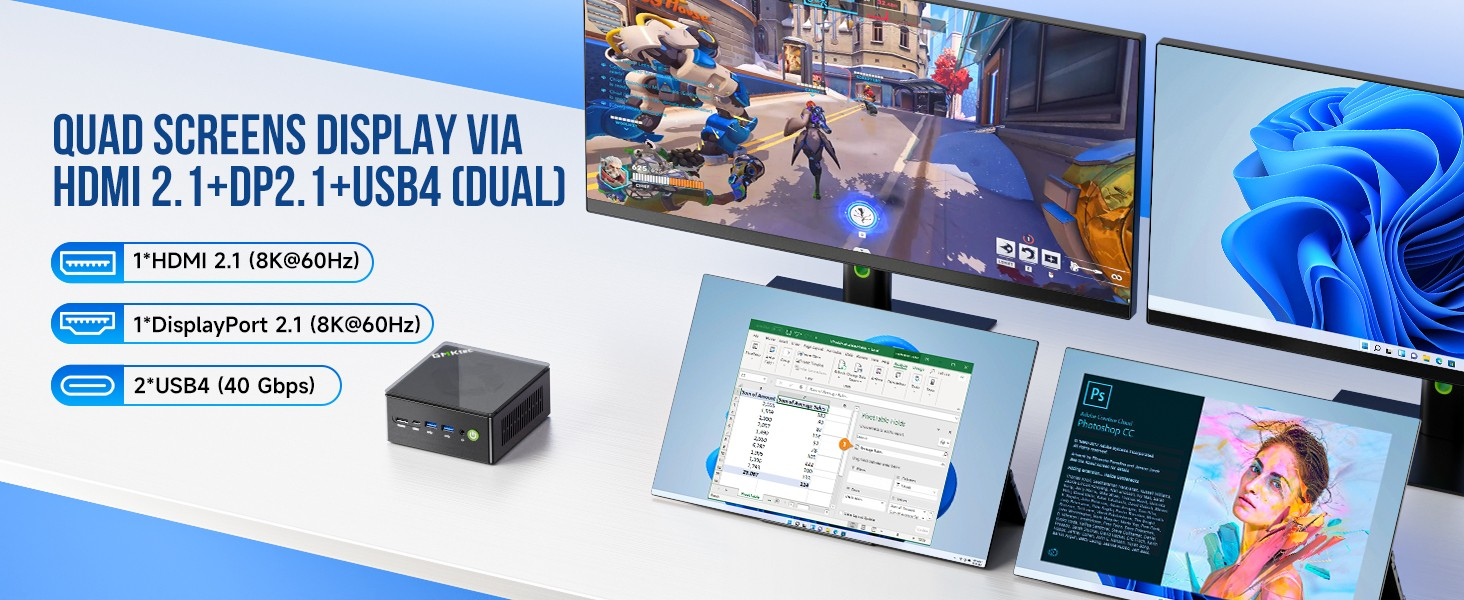

Video:

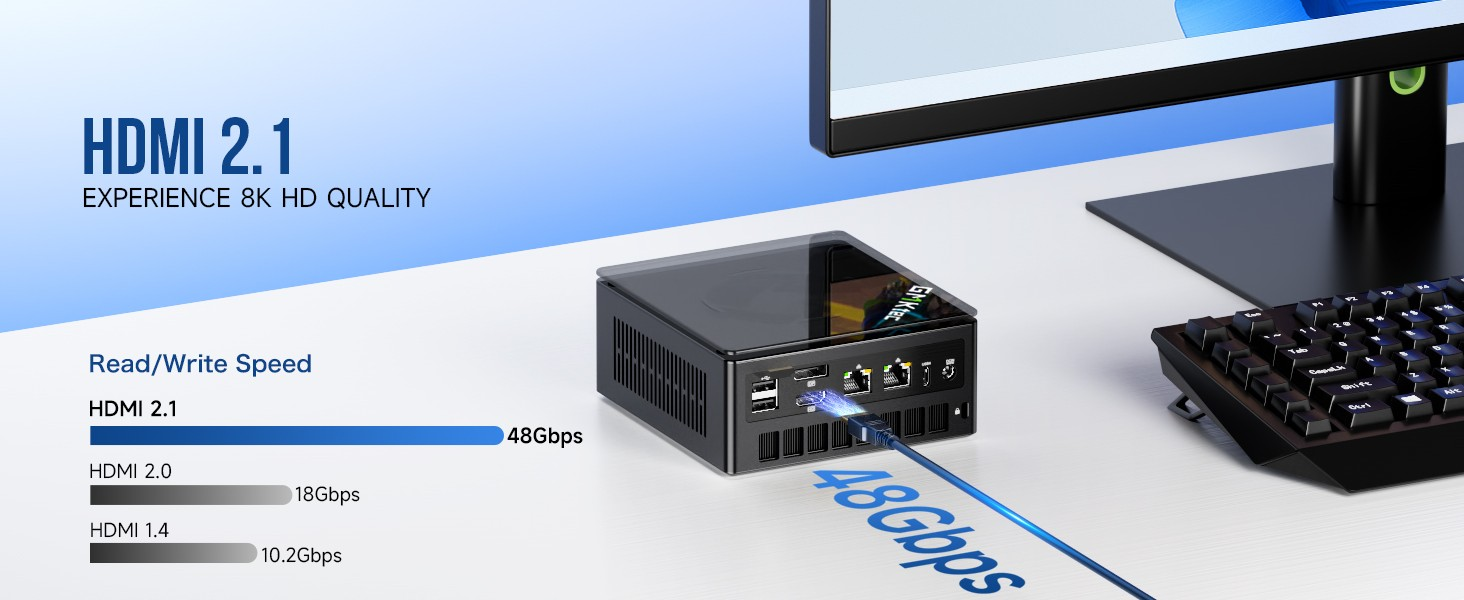

- HDMI 2.1 (8K@60Hz) *1
- 8K: HDMI/DP supports up to 60Hz (at 240Hz monitor settings), 8K at 120Hz (at 120Hz monitor settings), 4K: HDMI/DP supports up to 60Hz, 120Hz, 2K: HDMI supports up to 144Hz
DP Output: DisplayPort 2.1 (8K@60Hz) *1

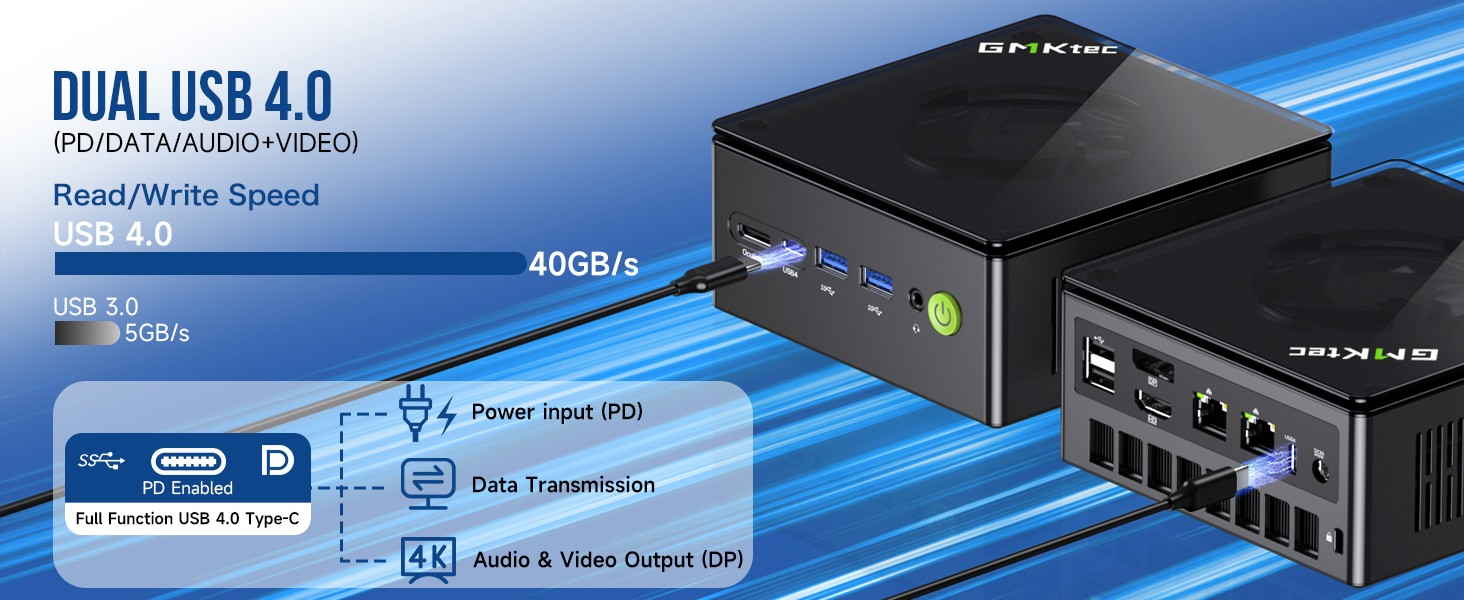

Type-C port:
- USB4*2, supports USB4=40Gbps, supports PD3.0/DP1.4/USB 3.2 10GB/s
- Fully functional
Audio:
- ∮3.5mm, CTIA
- American Standard
Charging port: DC IN 5525 connector

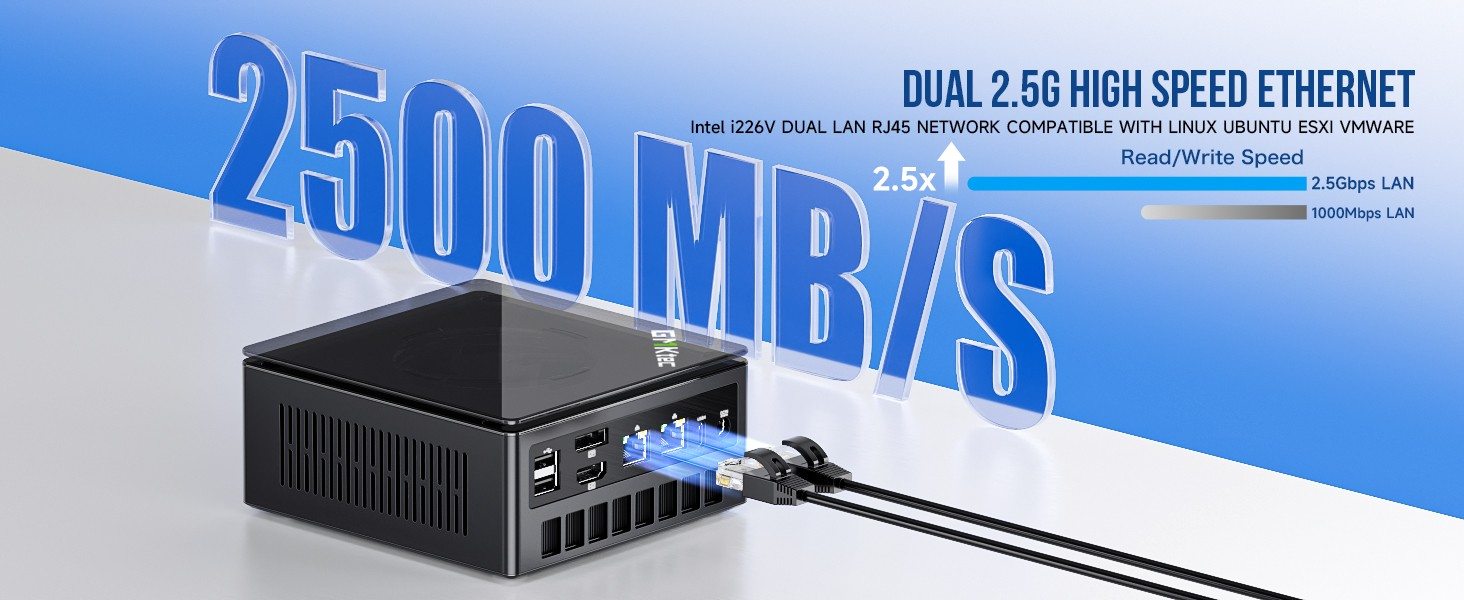

Ethernet (RJ45):
- Giga LAN (RJ45)*2, 2.5G
- Intel I226V*2

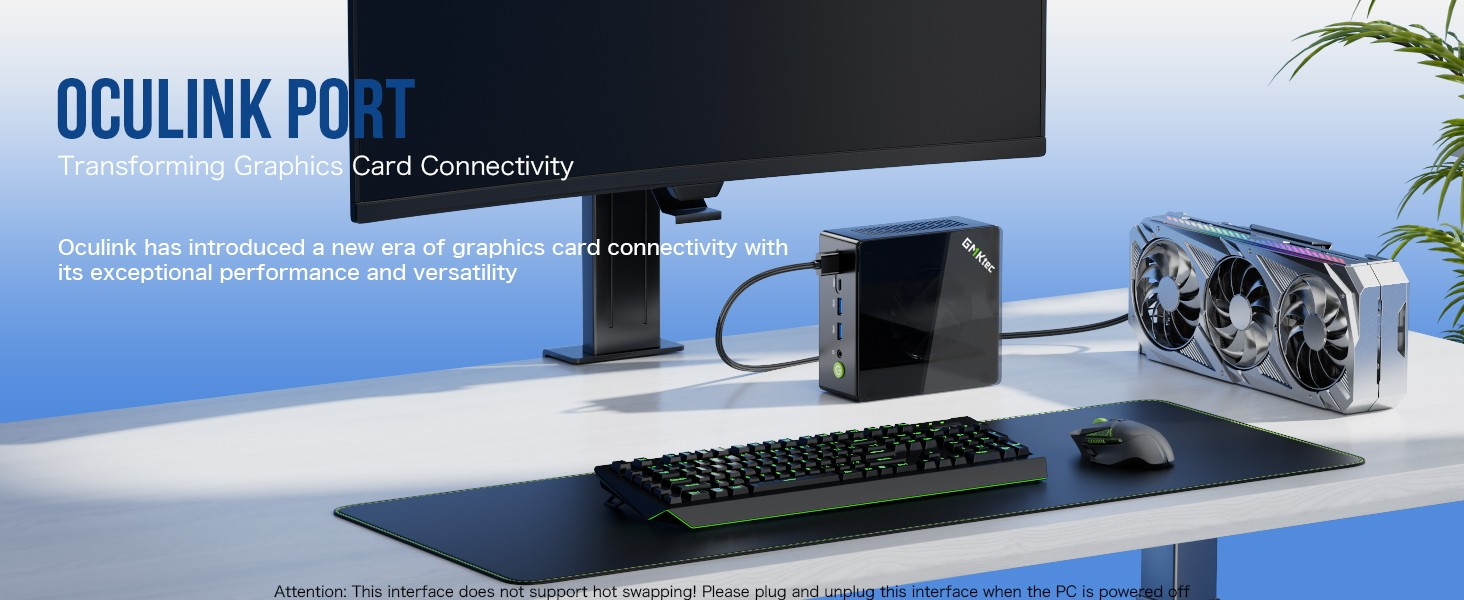

Oculink:
- PCIe GEN4 X4
- Oculink port does not support hot-swapping. Please only disconnect the connection when the power is off. With power on, removing and plugging it in can cause damage to the motherboard.
DMIC: Onboard DMIC Digital Microphone Chip
TF: Card Reader Unsupported
Keyboard: Supports external keyboard
Indicator: White Power Indicator Light

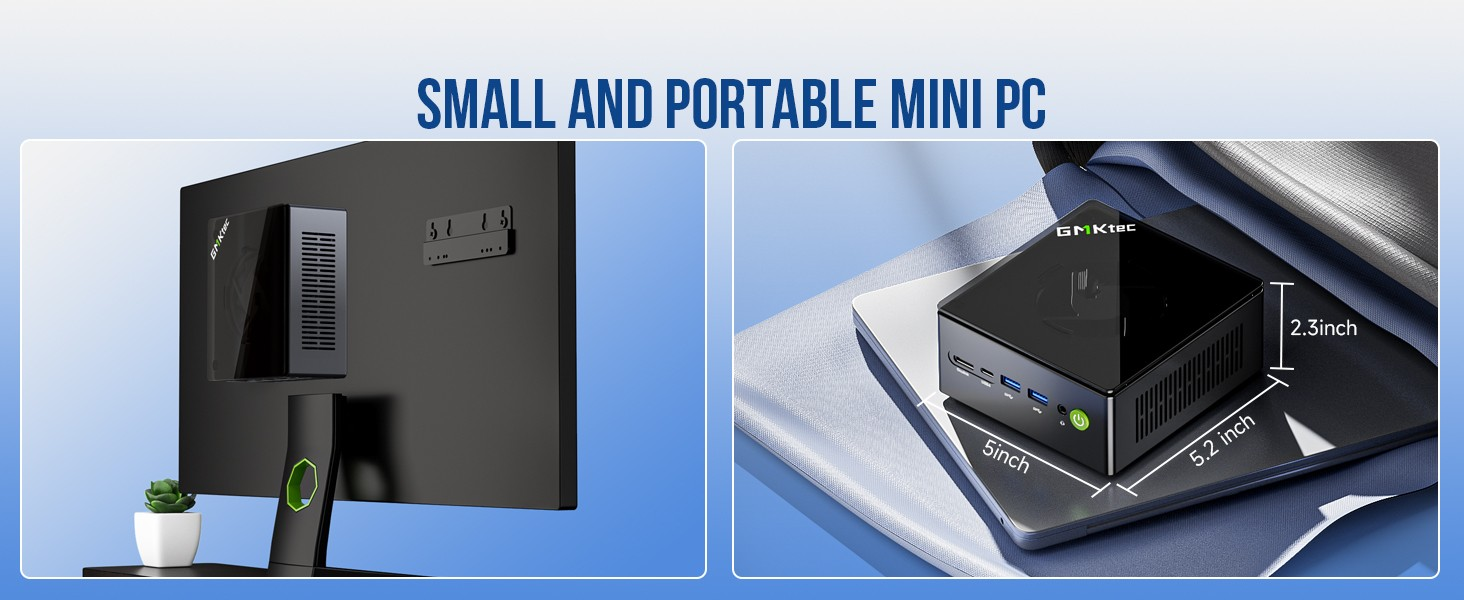

Metrics: 132mm*125mm*58mm
Weight (naked device): Approx. 1049.3 g (incl. package)
