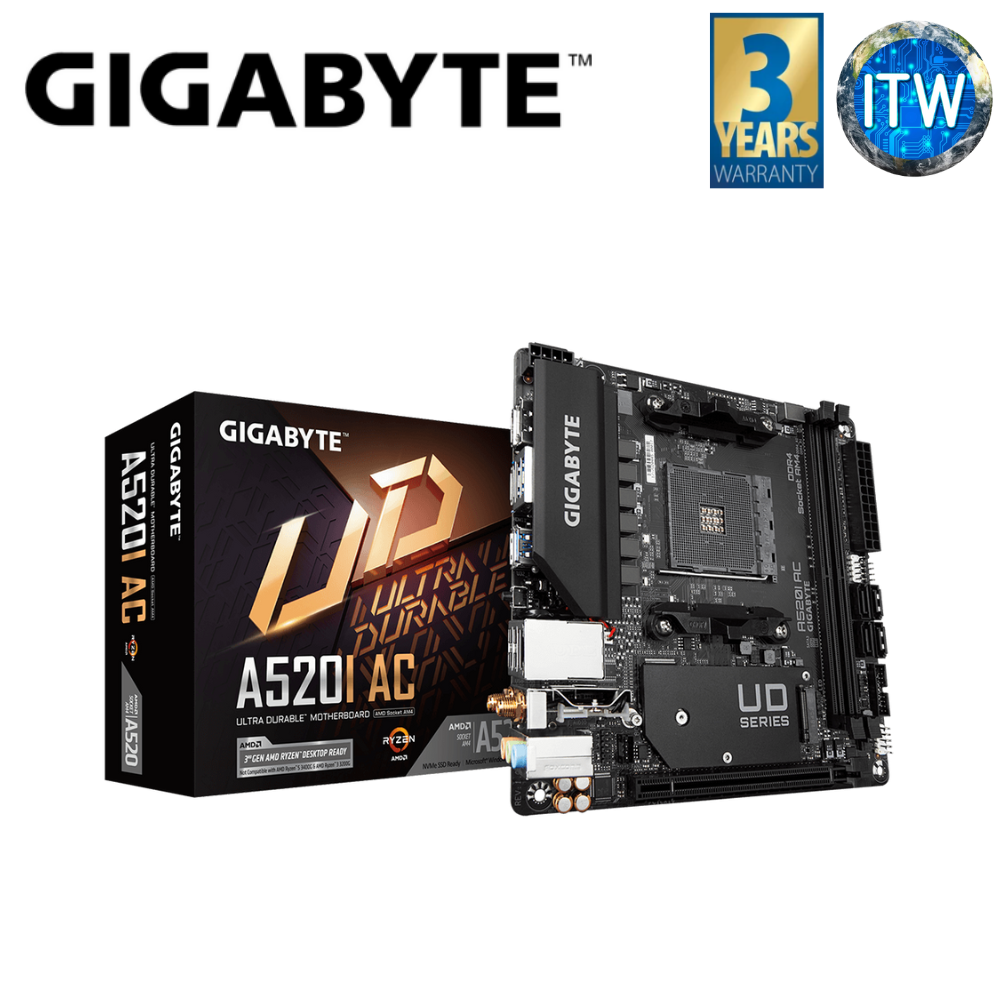

Product Name: ITW | Gigabyte A520I AC Mini-ITX AM4 DDR4 Ultra Durable Motherboard
AMD A520 Mini-ITX Ultra Durable Motherboard with Direct 6 Phases Digital VRM, Onboard Intel 802.11ac WIFI, Realtek GbE LAN with Bandwidth Management, PCIe 3.0 x4 M.2, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus
■ Supports AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
■ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
■ Direct 6 Phases Digital VRM Solution with 55A DrMOS
■ Ultra-Fast NVMe PCIe 3.0 x4 M.2
■ Onboard Intel® Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable™ Antenna
■ Realtek GbE LAN with Bandwidth Management
■ DisplayPort, Dual HDMI for for Multiple Display
■ RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
■ Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
■ Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
■ Anti-Sulfur Resistors Design
Specification
CPU
✎ AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Chipset
✎ AMD A520
Memory
✎ 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
✎ Support for DDR4 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
✎ Dual channel memory architecture
✎ Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
✎ Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
✎ Support for Extreme Memory Profile (XMP) memory modules
Audio
✎ Realtek® Audio CODEC
✎ High Definition Audio
✎ 2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN
✎ Realtek® GbE LAN chip (10/100/1000 Mbit)
Wireless Communication module
✎ Intel® Wi-Fi AC 3168 (For PCB rev. 1.0/1.2/1.3)/Intel® Wi-Fi AC 9260 (For PCB rev. 1.1)1.1)/ Realtek® Wi-Fi AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) (For PCB rev. 1.4)
■ WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
■ BLUETOOTH 4.2
■ Support for 11ac wireless standard and up to 433 Mbps data rate
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
✎ Integrated in the CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Storage Interface
✎ Integrated in the CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
✎ Chipset
■ 4 x SATA 6Gb/s connectors
■ Support for RAID 0, RAID 1, and RAID 10
USB
✎ Integrated in the CPU: 4 x USB 3.2 Gen 1 ports on the back panel
✎ Chipset
■ 2 x USB 3.2 Gen 1 ports available through the internal USB header
■ 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Back Panel Connectors
✎ 1 x DisplayPort
✎ 2 x HDMI ports
✎ 4 x USB 3.2 Gen 1 ports
✎ 2 x USB 2.0/1.1 ports
✎ 1 x Q-Flash Plus button
✎ 1 x RJ-45 ports
✎ 2 x SMA antenna connectors (1T1R)
✎ 3 x audio jacks
Form Factor
✎ Mini-ITX; 17.0cm x 17.0cm
