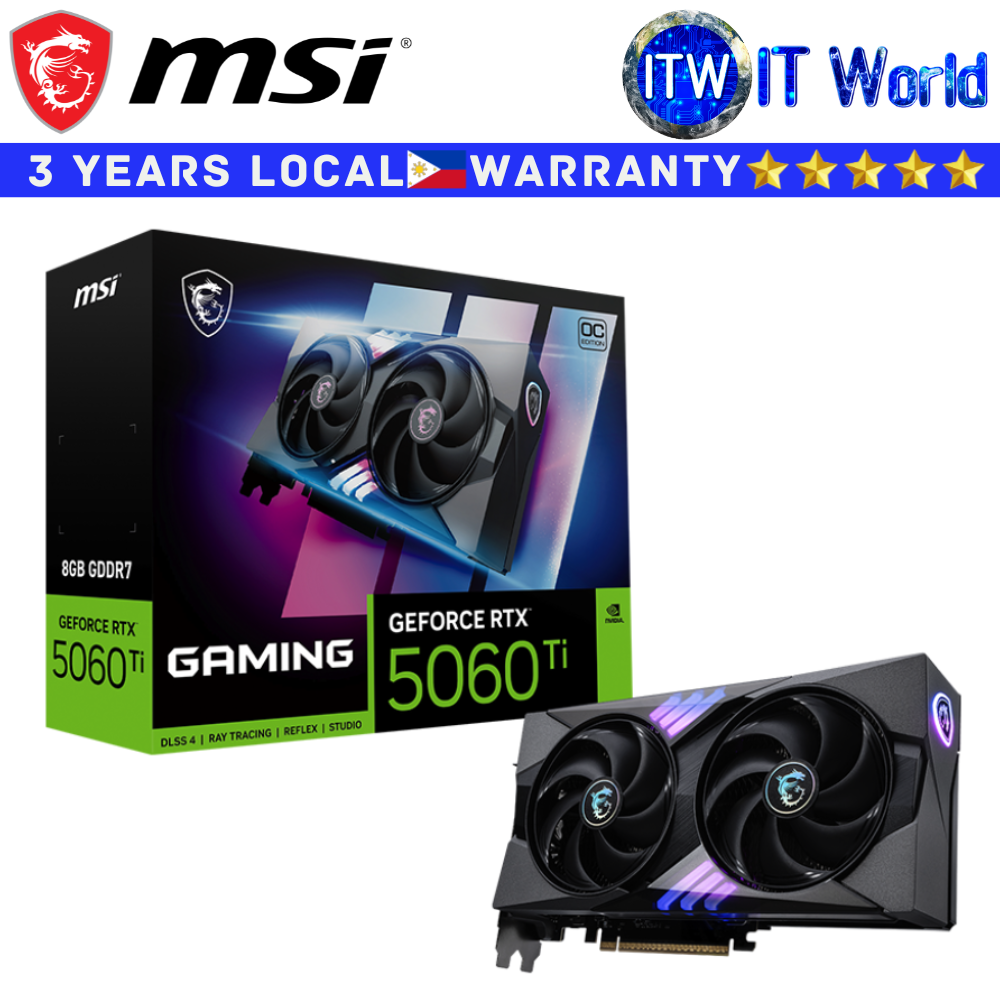

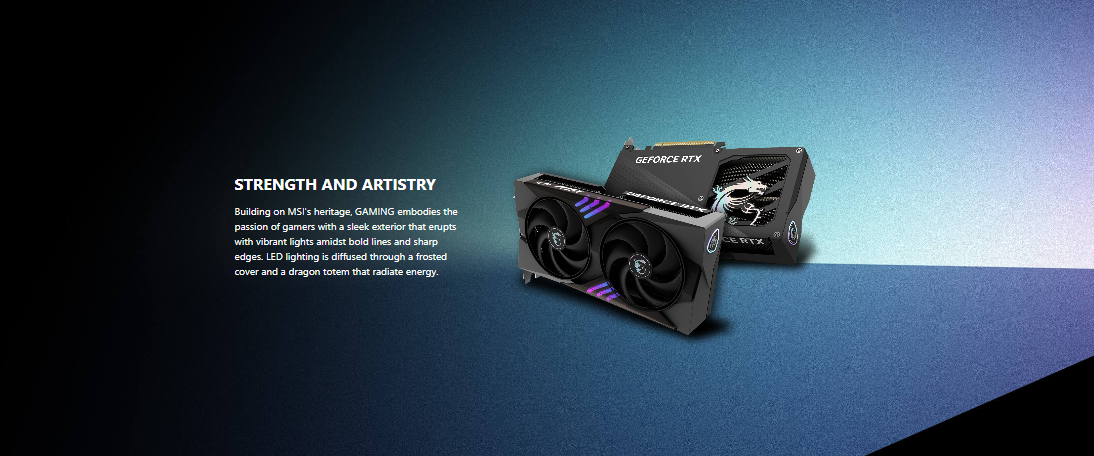

Product Name: Itw | MSI RTX 5060 Ti 8GB GDDR7 Gaming OC Geforce Graphic Card

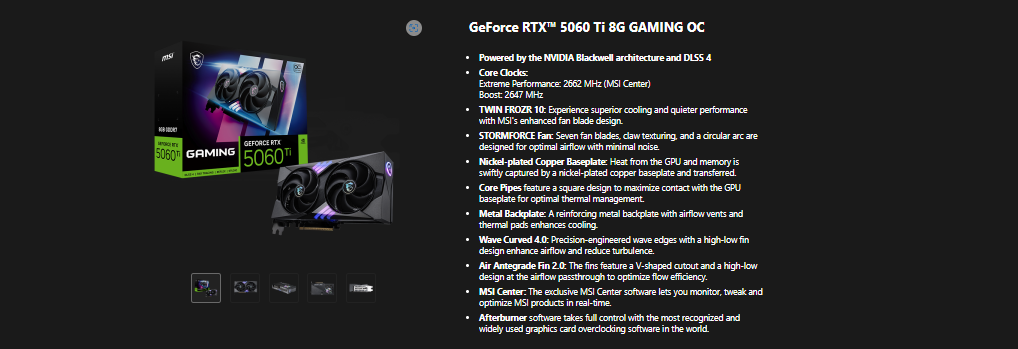

* GeForce RTX™ 5060 Ti 8G GAMING OC

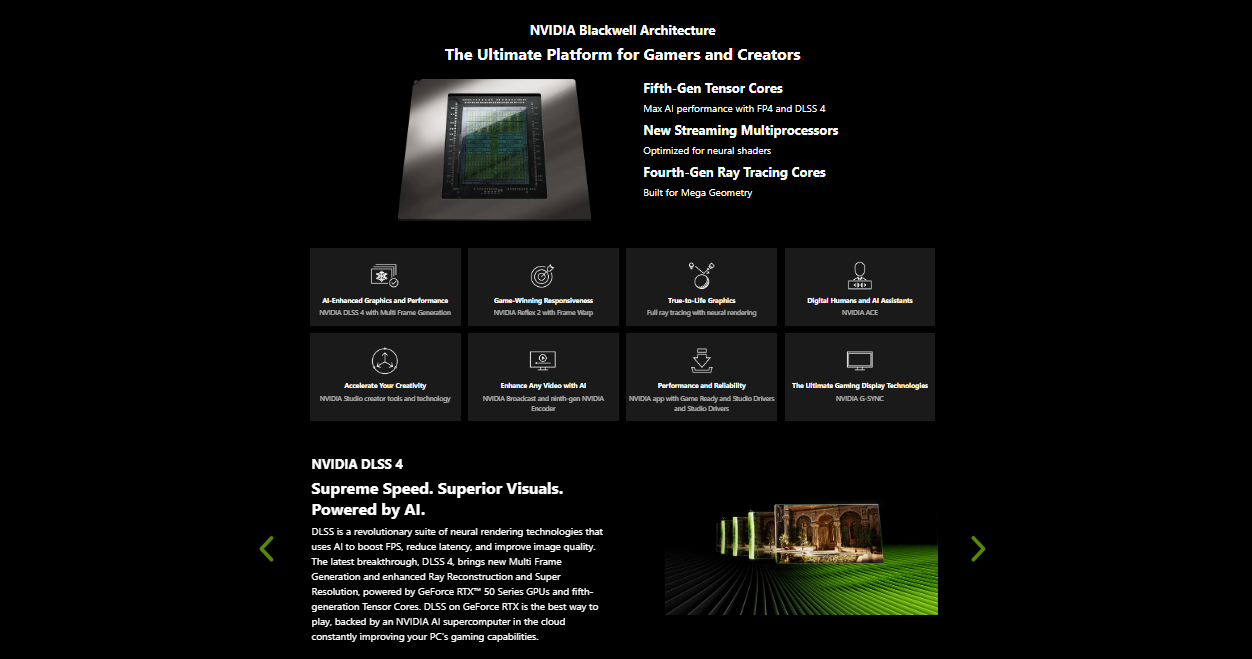

- Powered by the NVIDIA Blackwell architecture and DLSS 4
- Core Clocks:
Extreme Performance: 2662 MHz (MSI Center)
Boost: 2647 MHz

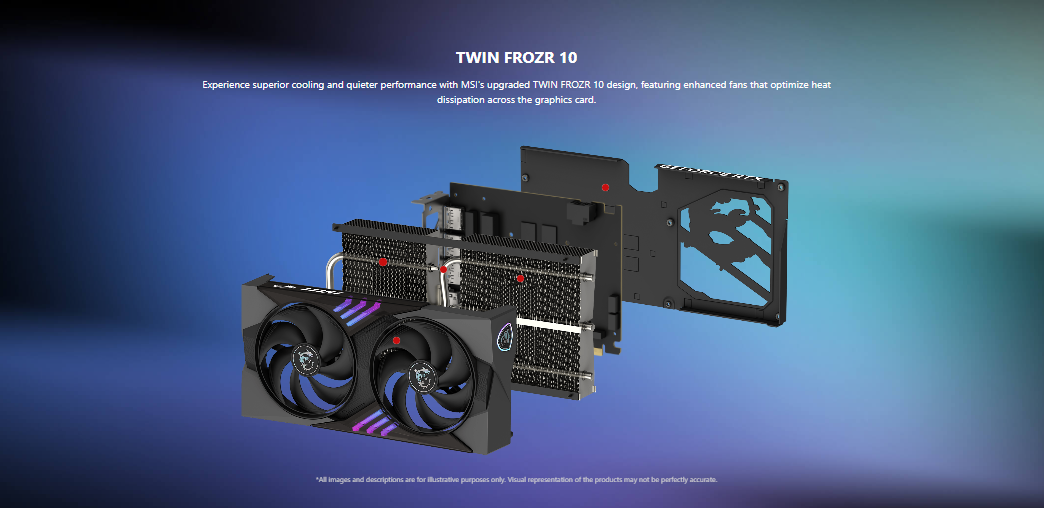

- TWIN FROZR 10: Experience superior cooling and quieter performance with MSI's enhanced fan blade design.
- STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
- Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
- Core Pipes feature a square design to maximize contact with the GPU baseplate for optimal thermal management.
- Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
- Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
- Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.

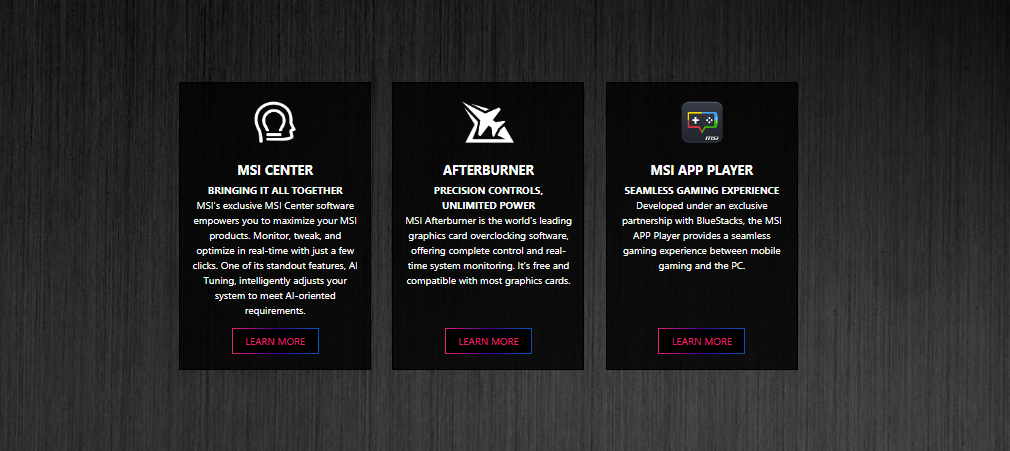

- MSI Center: The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.
- Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
Specification
Marketing Name: GeForce RTX™ 5060 Ti 8G GAMING OC
Model Name: G506T-8GC
Graphics Processing Unit: NVIDIA® GeForce RTX™ 5060 Ti
Interface: PCI Express® Gen 5 x16 (uses x8)
Core Clocks:
- Extreme Performance: 2662 MHz (MSI Center)
- Boost: 2647 MHz
CUDA® CORES: 4608 Units
Memory Speed: 28 Gbps
Memory: 8GB GDDR7
Memory Bus: 128-bit
Output:
- DisplayPort x 3 (v2.1b)
- HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)
HDCP Support: Y
Power consumption: 180 W
Power connectors: 8-pin x1
Recommended PSU: 600W
Card Dimension (mm): 247 x 135 x 51 mm
Weight (Card / Package): 768 g / 1219 g
DirectX Version Support: 12 Ultimate
OpenGL Version Support: 4.6
Maximum Displays: 4
G-SYNC® technology: Y
Digital Maximum Resolution: 7680 x 4320
