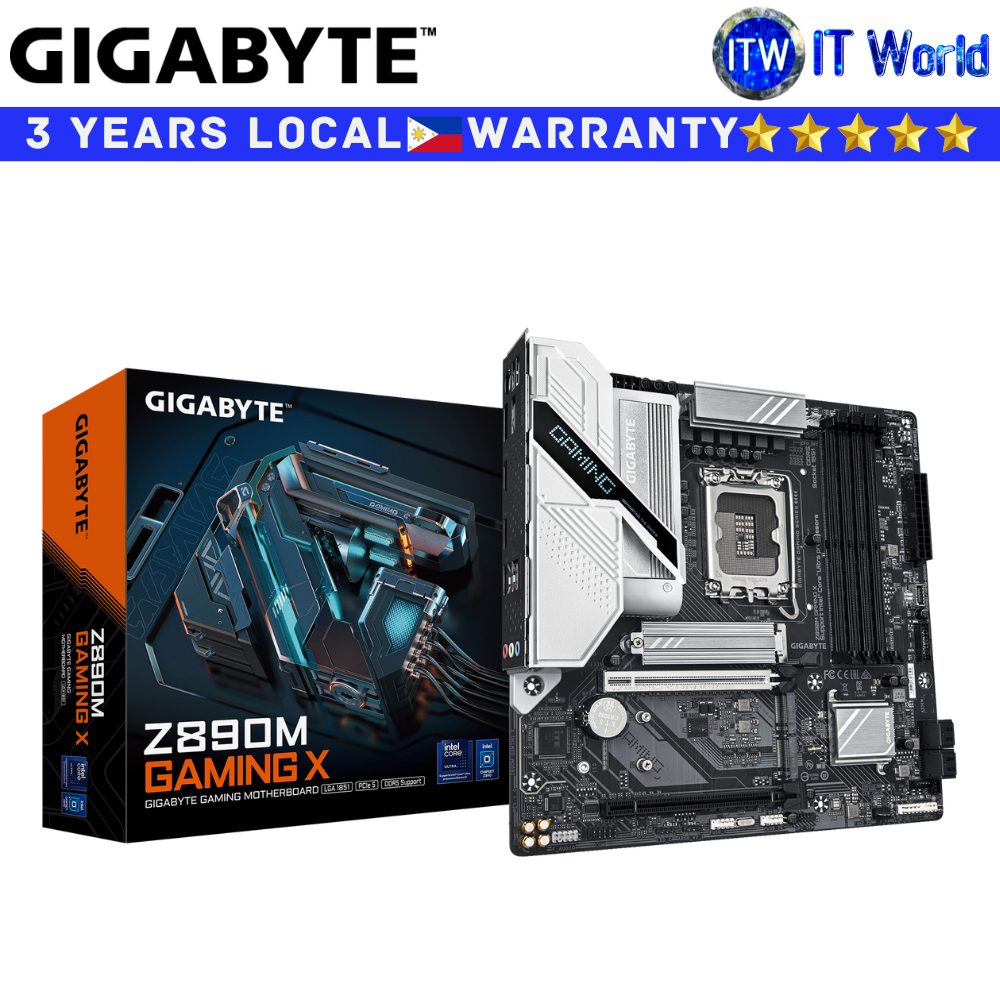

Product Name: Itw | Gigabyte Motherboard Z890M Gaming X microATX LGA1851 DDR5 (GA-Z890M-GAMING-X)
Key Features
> Supports Intel® Core™ Ultra processors (Series 2)
> Digital 8+1+2 phases VRM solution
> D5 Bionic Corsa: for Infinite Memory Performance
> AI Perfdrive: Provides optimal and customized BIOS preset profile for users
> Premium Compatibility: 4*DDR5 with XMP Memory Module Support
> PCIe EZ-Latch: PCIe slots with Quick Release & Screwless Design
> Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
> New Power Monitor in HWinfo for real-time monitoring on CPU power phases
> Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
> Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
> Fast Networking: 2.5GbE LAN
> Extended Connectivity: HDMI, DisplayPort
Specification
CPU
> LGA1851 socket: Support for Intel® Core™ Ultra Processors
> L3 cache varies with CPU
Chipset
> Intel® Z890 Express Chipset
Memory
> Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
> Dual channel memory architecture
> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for Extreme Memory Profile (XMP) memory modules
> Support CUDIMM memory module
Onboard Graphics
> Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
- 2 x DisplayPorts, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 2.1 version.
Audio
> Realtek® Audio CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
LAN
> Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
> CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
> Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
> CPU: 1 x M.2 connector (Socket 3, M key, type 2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
> Chipset
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0x4/x2 SSD support) (M2N_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
> Chipset
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 2 x USB 2.0/1.1 ports on the back panel
> Chipset+2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
> 1 x 24-pin ATX main power connector
> 1 x 8-pin ATX 12V power connector
> 1 x CPU fan header
> 1 x CPU fan/water cooling pump header
> 1 x system fan header
> 1 x system fan/water cooling pump header
> 2 x addressable RGB Gen2 LED strip headers
> 1 x RGB LED strip header
> 3 x M.2 Socket 3 connectors
> 4 x SATA 6Gb/s connectors
> 1 x front panel header
> 1 x front panel audio header
> 1 x USB Type-C® header, with USB 3.2 Gen 1 support
> 1 x USB 3.2 Gen 1 header
> 2 x USB 2.0/1.1 headers
> 2 x Thunderbolt™ add-in card connectors
> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
> 1 x serial port header
> 1 x Clear CMOS jumper
Back Panel Connectors
> 1 x PS/2 keyboard/mouse port
> 3 x USB 3.2 Gen 1 ports
> 2 x USB 2.0/1.1 ports
> 1 x HDMI port (Note)
> 2 x DisplayPorts (Note)
> 1 x RJ-45 port
> 3 x audio jacks
(Note) Actual support may vary by CPU.
Form Factor
> Micro ATX Form Factor; 24.4cm x 24.4cm
