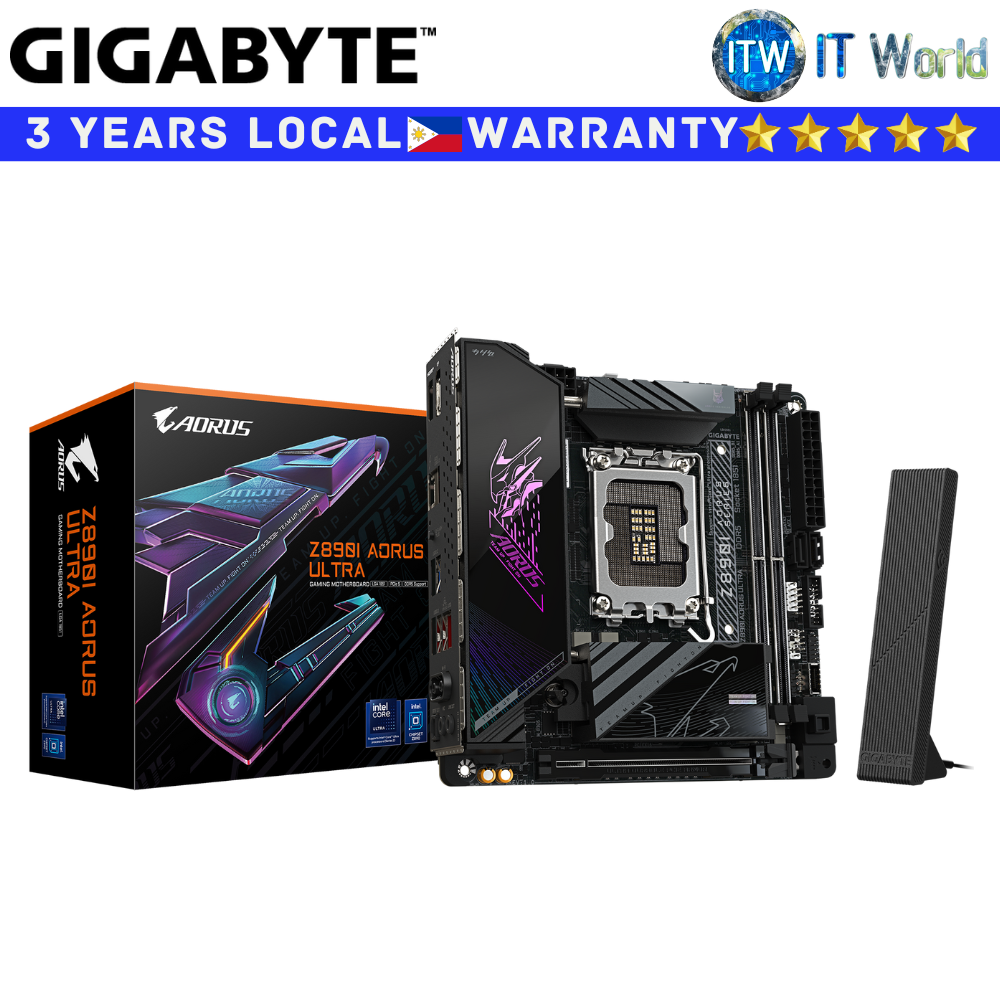

Product Name: Itw | Gigabyte Motherboard Z890I Aorus Ultra mini-ITX LGA1851 DDR5 (GA-Z890I-AORUS-ULTRA)
Key Features
> Supports Intel® Core™ Ultra processors (Series 2)
> Digital 8+1+2 phases VRM solution
> D5 Bionic Corsa for Infinite Memory Performance
> AI Perfdrive: Provides optimal and customized BIOS preset profile for users
> Premium Compatibility: 2*DDR5 with XMP Memory Module Support
> WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
> EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
> EZ-Latch Click: M.2 heatsinks with screwless design
> Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
> New Power Monitor in HWinfo for real-time monitoring on CPU power phases
> Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4
> Efficient Thermal: VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard Ext.
> Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
> Extended Connectivity: THUNDERBOLT™ 4 Type-C with DP-Alt , HDMI , DisplayPort
> PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card
Specification
CPU
> LGA1851 socket: Support for Intel® Core™ Ultra Processors
> L3 cache varies with CPU
Chipset
> Intel® Z890 Express Chipset
Memory
> Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
> Dual channel memory architecture
> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for Extreme Memory Profile (XMP) memory modules
> Support CUDIMM memory module
Audio
> Realtek® Audio CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out
LAN
> Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
> Intel® Wi-Fi 7 BE202 (BE200NGW M)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots
> CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface
> CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
> Chipset
- 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 2 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0 and RAID 1 support for SATA storage devices
USB
> CPU: 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
*Support up to 40Gbps with Thunderbolt devices
*Support up to 20Gbps with USB4 devices
*Support up to 10Gbps with USB 3.2 devices
> Chipset
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 2 x USB 2.0/1.1 ports available through the internal USB headers
> Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Back Panel Connectors
> 1 x DisplayPort (Note)
> 1 x HDMI port (Note)
> 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
> 3 x USB 3.2 Gen 2 Type-A ports (red)
> 2 x USB 3.2 Gen 1 ports
> 1 x Q-Flash Plus button
> 1 x RJ-45 port
> 2 x antenna connectors (2T2R)
> 2 x audio jacks
> 1 x optical S/PDIF Out connector
> (Note) Actual support may vary by CPU.
Form Factor
> Mini-ITX; 17.0cm x 17.0cm
