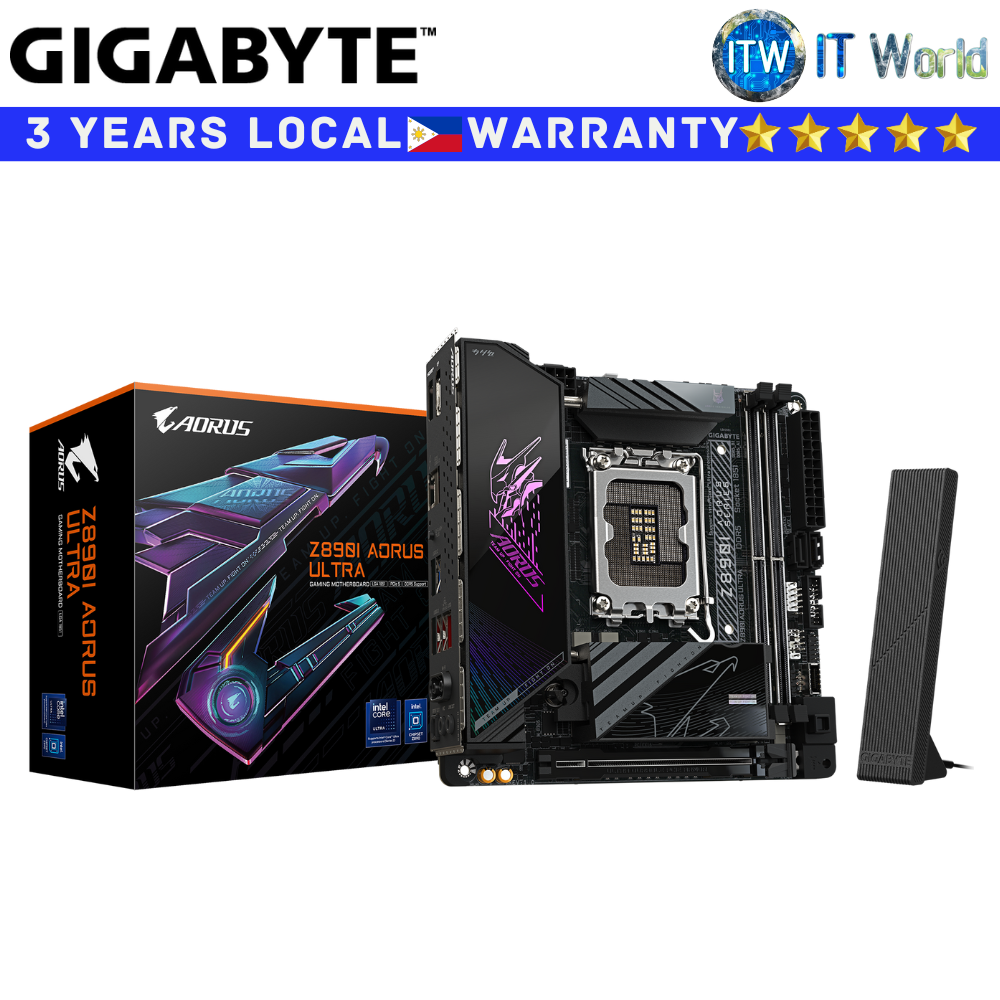

Gigabyte Motherboard Z890I Aorus Ultra mini-ITX LGA1851 DDR5 (GA-Z890I-AORUS-ULTRA)

Product Name: Itw | Gigabyte Motherboard Z890I Aorus Ultra mini-ITX LGA1851 DDR5 (GA-Z890I-AORUS-ULTRA)

Key Features

> Supports Intel® Core™ Ultra processors (Series 2)

> Digital 8+1+2 phases VRM solution

> D5 Bionic Corsa for Infinite Memory Performance

> AI Perfdrive: Provides optimal and customized BIOS preset profile for users

> Premium Compatibility: 2*DDR5 with XMP Memory Module Support

> WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

> EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design

> EZ-Latch Click: M.2 heatsinks with screwless design

> Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

> New Power Monitor in HWinfo for real-time monitoring on CPU power phases

> Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4

> Efficient Thermal: VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING & M.2 Thermal Guard Ext.

> Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

> Extended Connectivity: THUNDERBOLT™ 4 Type-C with DP-Alt , HDMI , DisplayPort

> PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Specification

CPU

> LGA1851 socket: Support for Intel® Core™ Ultra Processors

> L3 cache varies with CPU

Chipset

> Intel® Z890 Express Chipset

Memory

> Support for DDR5 9200(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

> 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

> Dual channel memory architecture

> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate innon-ECC mode)

> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

> Support for Extreme Memory Profile (XMP) memory modules

> Support CUDIMM memory module

Audio

> Realtek® Audio CODEC

> High Definition Audio

> 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN

> Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

> Intel® Wi-Fi 7 BE202 (BE200NGW M)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Expansion Slots

> CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Storage Interface

> CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

> Chipset

- 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

- 2 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0 and RAID 1 support for SATA storage devices

USB

> CPU: 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel

*Support up to 40Gbps with Thunderbolt devices

*Support up to 20Gbps with USB4 devices

*Support up to 10Gbps with USB 3.2 devices

> Chipset

- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

- 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 2 x USB 2.0/1.1 ports available through the internal USB headers

> Chipset+USB 3.2 Gen 1 Hub: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Back Panel Connectors

> 1 x DisplayPort (Note)

> 1 x HDMI port (Note)

> 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)

> 3 x USB 3.2 Gen 2 Type-A ports (red)

> 2 x USB 3.2 Gen 1 ports

> 1 x Q-Flash Plus button

> 1 x RJ-45 port

> 2 x antenna connectors (2T2R)

> 2 x audio jacks

> 1 x optical S/PDIF Out connector

> (Note) Actual support may vary by CPU.

Form Factor

> Mini-ITX; 17.0cm x 17.0cm
