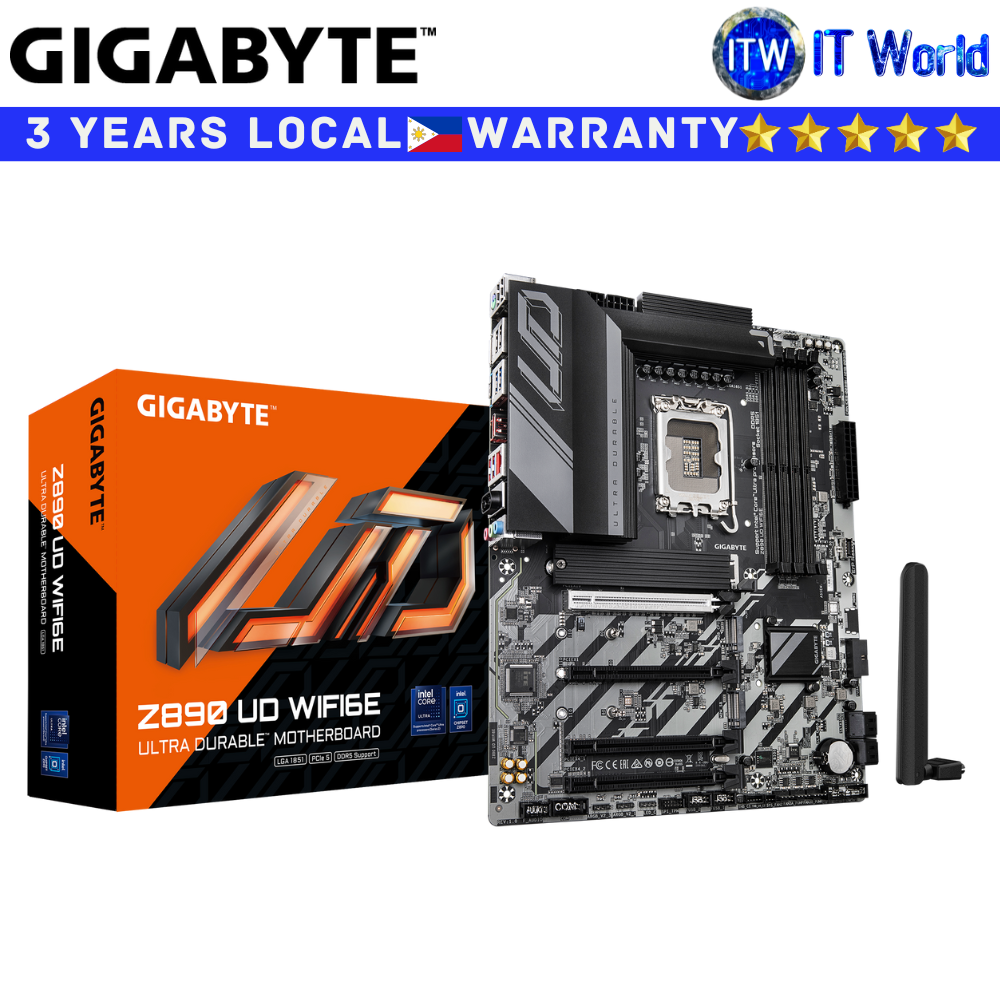

Product Name: Itw | Gigabyte Motherboard Z890 UD Wifi6E ATX LGA1851 DDR5 (GA-Z890-UD-WIFI6E)
Key Features
> Supports Intel® Core™ Ultra processors (Series 2)
> Digital twin 12+1+2 phases VRM solution
> D5 Bionic Corsa for Infinite Memory Performance
> AI Perfdrive: Provides optimal and customized BIOS preset profile for users
> Premium Compatibility: 4*DDR5 with XMP Memory Module Support
> WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
> EZ-Latch: PCIe x16 Slot with Quick Release Design
> Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
> New Power Monitor in HWinfo for real-time monitoring on CPU power phases
> Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
> Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
> Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax
> Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort
Specification
CPU
> LGA1851 socket: Support for Intel® Core™ Ultra Processors
> L3 cache varies with CPU
Chipset
> Intel® Z890 Express Chipset
Memory
> Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
> Dual channel memory architecture
> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for Extreme Memory Profile (XMP) memory modules
> Support CUDIMM memory module
Onboard Graphics
> Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
(Graphics specifications may vary depending on CPU support.)
Audio
> Realtek® Audio CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
LAN
> Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
> Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
> Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
Expansion Slots
> CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
> Chipset
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage Interface
> CPU
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
> Chipset
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
> RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
> CPU: 1 x USB4® USB Type-C® port on the back panel
> Chipset
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
> Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Back Panel Connectors
> 4 x USB 2.0/1.1 ports
> 1 x PS/2 keyboard/mouse port
> 1 x DisplayPort (Note)
> 4 x USB 3.2 Gen 1 ports
> 1 x USB4® USB Type-C® port (DisplayPort (Note))
> 1 x USB 3.2 Gen 2 Type-A port (red)
> 1 x RJ-45 port
> 2 x SMA antenna connectors (2T2R)
> 3 x audio jacks
(Note) Actual support may vary by CPU.
Form Factor
> ATX; 30.5cm x 24.4cm
