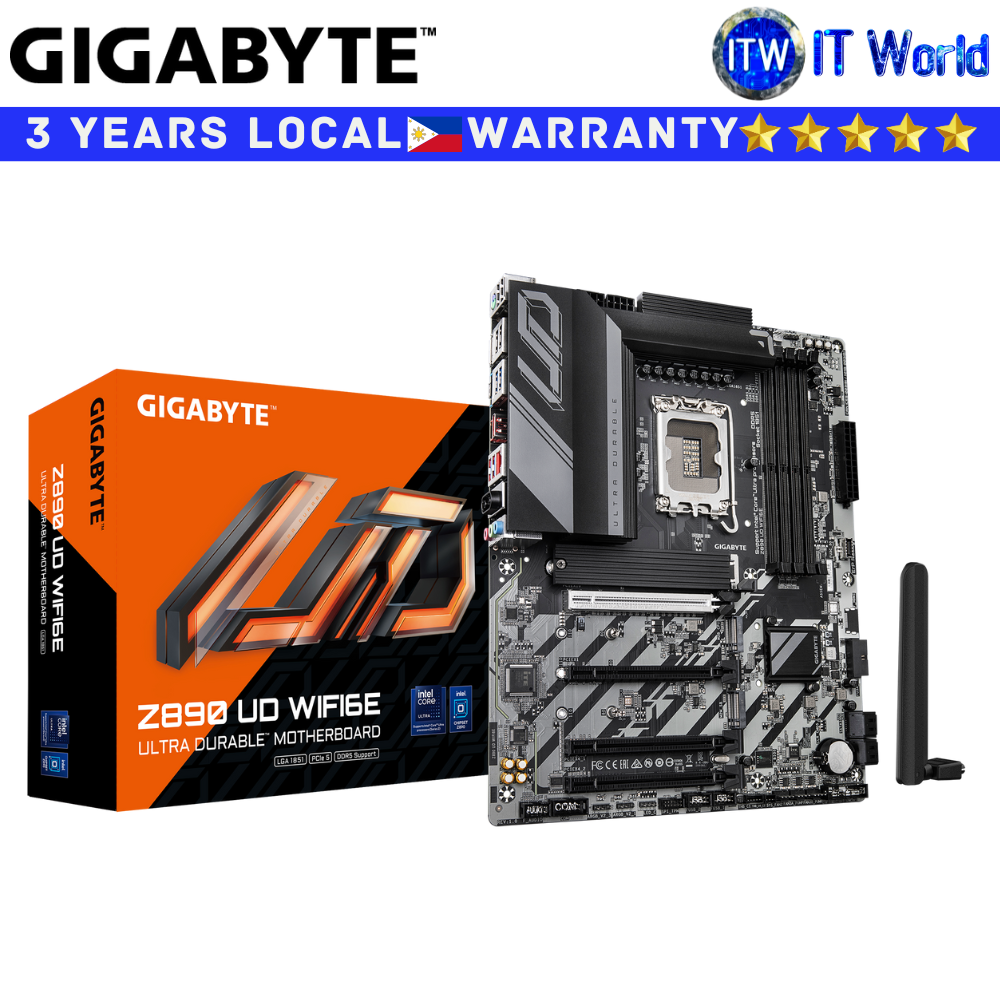

Gigabyte Motherboard Z890 UD Wifi6E ATX LGA1851 DDR5 (GA-Z890-UD-WIFI6E)

Product Name: Itw | Gigabyte Motherboard Z890 UD Wifi6E ATX LGA1851 DDR5 (GA-Z890-UD-WIFI6E)

Key Features

> Supports Intel® Core™ Ultra processors (Series 2)

> Digital twin 12+1+2 phases VRM solution

> D5 Bionic Corsa for Infinite Memory Performance

> AI Perfdrive: Provides optimal and customized BIOS preset profile for users

> Premium Compatibility: 4*DDR5 with XMP Memory Module Support

> WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

> EZ-Latch: PCIe x16 Slot with Quick Release Design

> Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

> New Power Monitor in HWinfo for real-time monitoring on CPU power phases

> Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4

> Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard

> Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax

> Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort

Specification

CPU

> LGA1851 socket: Support for Intel® Core™ Ultra Processors

> L3 cache varies with CPU

Chipset

> Intel® Z890 Express Chipset

Memory

> Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

> Dual channel memory architecture

> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

> Support for Extreme Memory Profile (XMP) memory modules

> Support CUDIMM memory module

Onboard Graphics

> Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz

- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

(Graphics specifications may vary depending on CPU support.)

Audio

> Realtek® Audio CODEC

> High Definition Audio

> 2/4/5.1/7.1-channel

LAN

> Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

> Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

> Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

Expansion Slots

> CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

> Chipset

- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)

Storage Interface

> CPU

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)

> Chipset

- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors

> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

> RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB

> CPU: 1 x USB4® USB Type-C® port on the back panel

> Chipset

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

> Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Back Panel Connectors

> 4 x USB 2.0/1.1 ports

> 1 x PS/2 keyboard/mouse port

> 1 x DisplayPort (Note)

> 4 x USB 3.2 Gen 1 ports

> 1 x USB4® USB Type-C® port (DisplayPort (Note))

> 1 x USB 3.2 Gen 2 Type-A port (red)

> 1 x RJ-45 port

> 2 x SMA antenna connectors (2T2R)

> 3 x audio jacks

(Note) Actual support may vary by CPU.

Form Factor

> ATX; 30.5cm x 24.4cm
