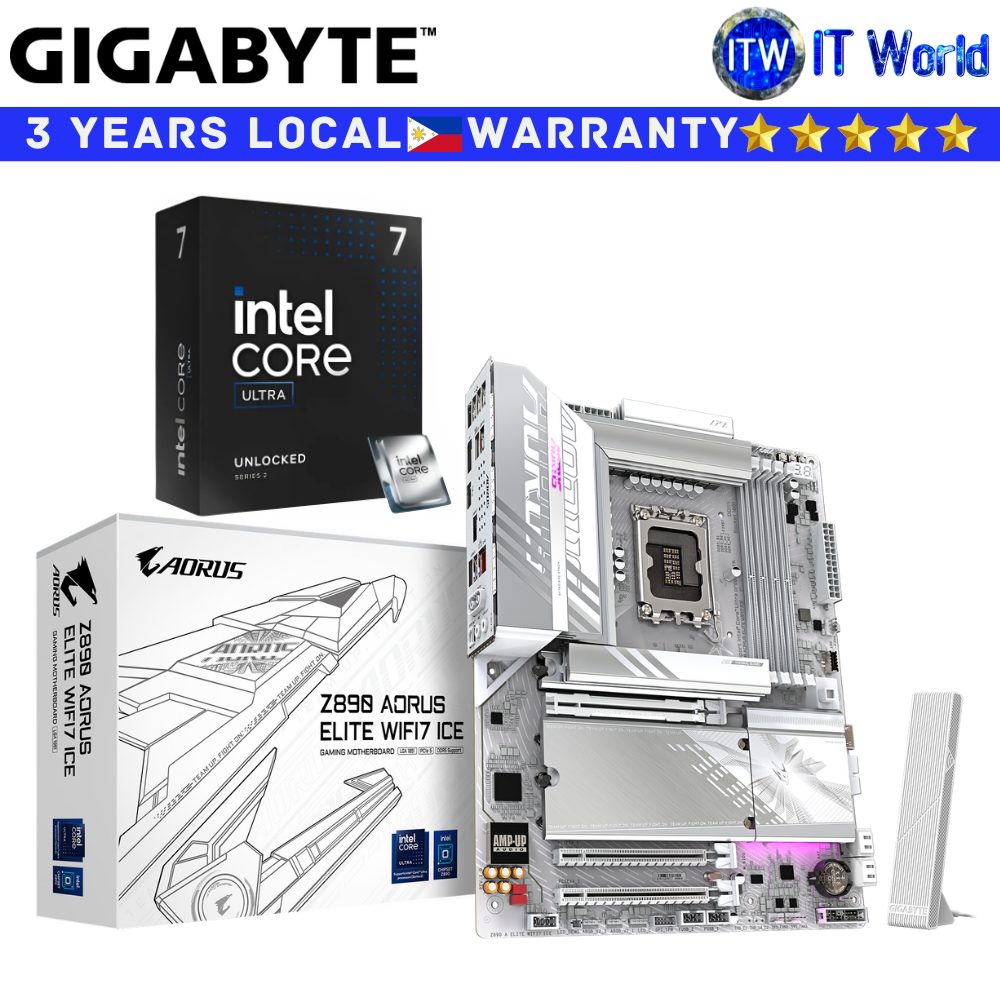

Product Name: Itw | Gigabyte Bundle Motherboard Intel Core Ultra 7 265K with Z890 Aorus Elite Wifi7 Ice
*** Intel Core Ultra 7 265K 30MB Cache up to 5.50Ghz Desktop Processor ***
CPU Specifications
* Total Cores: 20
* # of Performance-cores: 8
* # of Efficient-cores: 12
* Total Threads: 20
* Max Turbo Frequency: 5.5 GHz
* Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 5.5 GHz
* Performance-core Max Turbo Frequency: 5.4 GHz
* Efficient-core Max Turbo Frequency: 4.6 GHz
* Performance-core Base Frequency: 3.9 GHz
* Efficient-core Base Frequency: 3.3 GHz
* Cache: 30 MB Intel® Smart Cache
* Total L2 Cache: 36 MB
* Processor Base Power: 125 W
* Maximum Turbo Power: 250 W
* Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
* AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
* CPU Lithography: TSMC N3B
Memory Specifications
* Max Memory Size (dependent on memory type): 192 GB
* Memory Types: Up to DDR5 6400 MT/s
* Maximum Memory Speed: 6400 MHz
* Max # of Memory Channels: 2
* ECC Memory Supported ‡: Yes
GPU Specifications
* GPU Name‡: Intel® Graphics
* Graphics Base Frequency: 300 MHz
* Graphics Max Dynamic Frequency: 2 GHz
* GPU Peak TOPS (Int8): 8
* Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b Xe-cores4
* Max Resolution (HDMI)‡: 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
* Max Resolution (DP)‡: 8K @ 60Hz
* Max Resolution (eDP - Integrated Flat Panel)‡: 4K @ 60Hz
* DirectX* Support: 12
* OpenGL* Support: 4.5
* OpenCL* Support: 3
* Intel® Quick Sync Video: Yes
* # of Displays Supported ‡: 4
* Device ID: 0x7D67
* Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
*** Gigabyte Motherboard Z890 Aorus Elite Wifi7 Ice ATX LGA1851 DDR5 (GA-Z890-A-ELITE-WF7-ICE) ***
CPU
> LGA1851 socket: Support for Intel® Core™ Ultra Processors
> L3 cache varies with CPU
Chipset
> Intel® Z890 Express Chipset
Memory
> Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
> Dual channel memory architecture
> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for Extreme Memory Profile (XMP) memory modules
> Support CUDIMM memory module
Audio
> Realtek® ALC1220 CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
> Support for S/PDIF Out
Wireless Communication module
> MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
> Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment)
Storage Interface
> CPU
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
> Chipset
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
> RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
> CPU: 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel
> Chipset
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
> Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Back Panel Connectors
> 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
> 2 x USB 3.2 Gen 2 Type-A ports (red)
> 3 x USB 3.2 Gen 1 ports
> 4 x USB 2.0/1.1 ports
> 2 x antenna connectors (2T2R)
> 1 x DisplayPort (Note)
> 1 x RJ-45 port
> 1 x optical S/PDIF Out connector
> 2 x audio jacks
(Note) Actual support may vary by CPU
Form Factor
> ATX Form Factor; 30.5cm x 24.4cm
