Product Name:

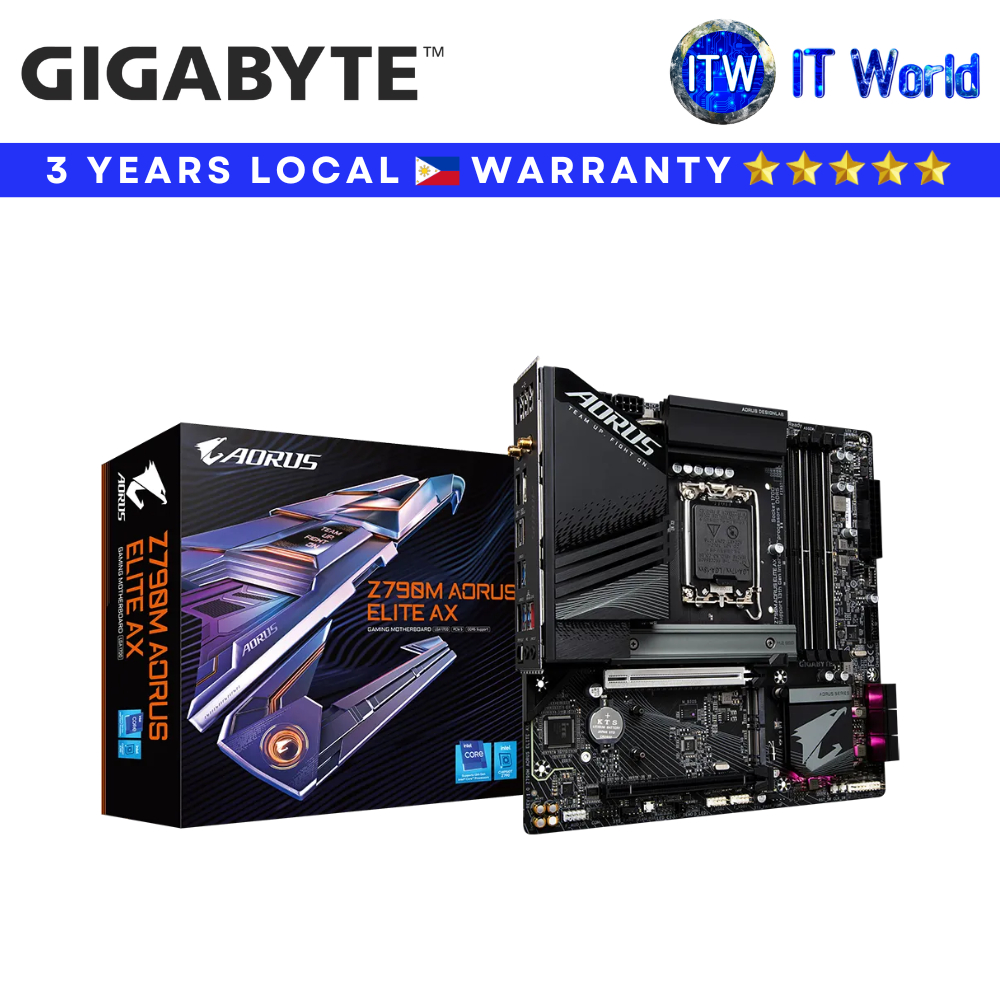

Itw | Gigabyte Motherboard Z790M AORUS ELITE AX DDR5 / Micro-ATX / LGA 1700 / Intel Z790
Brand: Gigabyte
Model: Z790M AORUS ELITE AX
Form Factor: Micro-ATX (24.4 x 24.4 cm)
Socket: LGA 1700
Chipset: Intel Z790
Supported CPUs: 14th / 13th / 12th Gen Intel Core™, Pentium® Gold, and Celeron®
Memory Support:
4 x DDR5 DIMM slots, up to 256GB
Supports DDR5 7600(O.C.) to 4000 MHz
Dual Channel Architecture
Supports ECC (non-ECC mode) & non-ECC Unbuffered DIMMs
XMP 3.0 Ready
Graphics Output:
1 x HDMI 2.1 (up to 4096x2160@60Hz)
1 x DisplayPort 1.2 (up to 4096x2304@60Hz)
Expansion Slots:
1 x PCIe 5.0 x16 (CPU)
1 x PCIe 4.0 x4 (Chipset)
AMD CrossFire™ Support
Storage:
3 x M.2 PCIe 4.0 x4 (2280 / 22110 support)
6 x SATA III 6Gb/s
RAID 0, 1, 5, 10 for both SATA & NVMe
USB Ports:
Rear: 1 x USB-C® 3.2 Gen 2x2, 1 x USB-A 3.2 Gen 2, 4 x USB-A 3.2 Gen 1, 4 x USB 2.0
Internal: 1 x USB-C® 3.2 Gen 2, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
LAN:
Realtek® 2.5GbE LAN
Wi-Fi & Bluetooth:
Intel® Wi-Fi 6E AX211 (2.4/5/6 GHz)
Bluetooth 5.3
Audio:
Realtek® ALC1200 7.1 HD Audio
Optical S/PDIF Out
Other Features:
Smart Fan 6 (hybrid fan headers with temp sensors & FAN STOP)
M.2 & PCIe EZ-Latch (tool-less design)
Q-Flash Plus (BIOS flashback w/o CPU/RAM/GPU)
RGB Fusion (Addressable RGB & RGB headers)

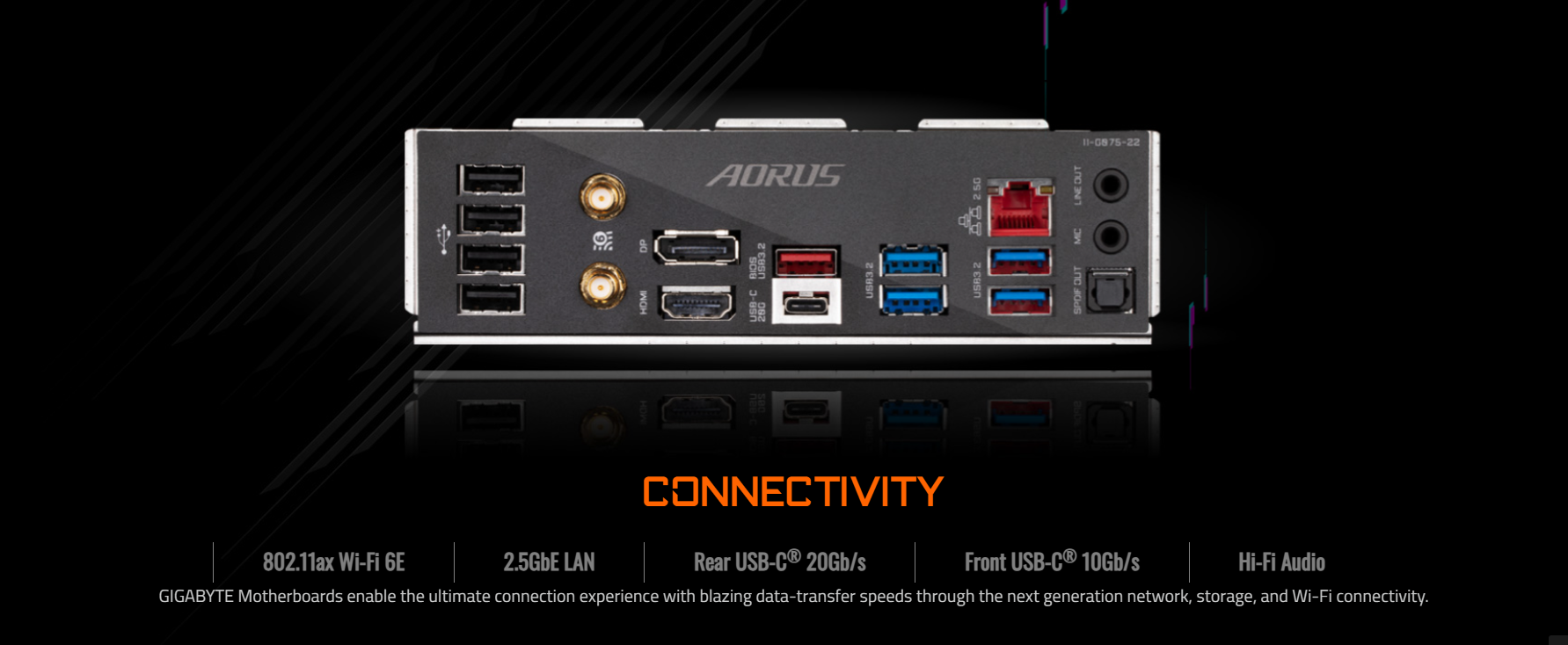

Rear I/O Ports:
1 x USB-C® 3.2 Gen 2x2
1 x USB-A 3.2 Gen 2
4 x USB-A 3.2 Gen 1
4 x USB 2.0
1 x HDMI
1 x DisplayPort
1 x RJ-45 2.5GbE
2 x SMA Antenna
1 x Optical S/PDIF
2 x Audio Jacks
Power Connectors:
1 x 24-pin ATX
1 x 8-pin ATX 12V
1 x 4-pin ATX 12V
Included Accessories:
Wi-Fi Antenna
SATA Cables
User Manual
OS Compatibility: Windows 11 / 10 64-bit
