Product Name:

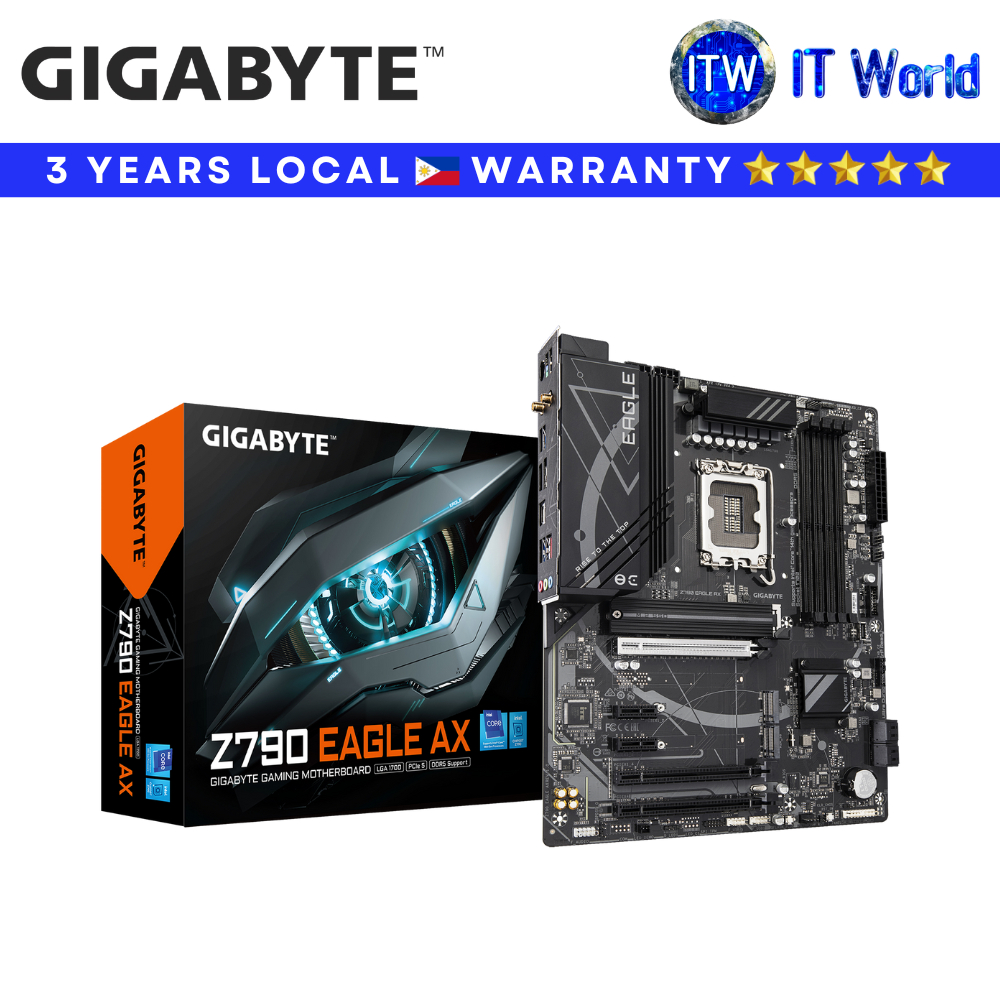

Itw | Gigabyte Motherboard Z790 EAGLE AX DDR5 / ATX / LGA1700 / Intel Z790 (GA-Z790-EAGLE-AX)

Brand: Gigabyte

Model: Z790 EAGLE AX

Form Factor: ATX (30.5 x 24.4 cm)

Socket: LGA 1700

Chipset: Intel Z790

Supported CPUs: 14th / 13th / 12th Gen Intel Core™, Pentium® Gold, and Celeron®

Memory Support:

4 x DDR5 DIMM slots, up to 256GB

14th/13th Gen i7/i9: up to DDR5 7600(O.C.)

13th Gen i5/i3 & 12th Gen CPUs: up to DDR5 4800/4400

Dual Channel Architecture

ECC/Non-ECC Unbuffered DIMMs

XMP 3.0 Ready

Graphics Output:

1 x HDMI 2.1 (up to 4096x2160@60Hz)

1 x DisplayPort 1.2 (up to 4096x2304@60Hz)

Expansion Slots:

1 x PCIe 5.0 x16 (CPU)

1 x PCIe 4.0 x4

1 x PCIe 3.0 x1

2 x PCIe 3.0 x1

Storage:

3 x M.2 PCIe 4.0 x4 (one SATA/PCIe compatible)

4 x SATA 6Gb/s

RAID 0, 1, 5, 10 support (NVMe & SATA)

USB Ports:

Rear: 1 x USB-C® 3.2 Gen 2, 1 x USB-A 3.2 Gen 2, 4 x USB-A 3.2 Gen 1, 2 x USB 2.0

Internal: 1 x USB-C® 3.2 Gen 1, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers

LAN:

Realtek® 2.5GbE LAN

Wi-Fi & Bluetooth:

Intel® Wi-Fi 6E AX211 or Realtek® Wi-Fi 6E RTL8852CE

2.4 / 5 / 6 GHz, Bluetooth 5.3

Audio:

Realtek® HD Audio Codec

7.1-channel support

Optical S/PDIF header

Cooling & Design:

Smart Fan 6 (Multiple sensors & FAN STOP support)

EZ-Latch PCIe & M.2 for quick installation

Advanced thermal design & M.2 Thermal Guard

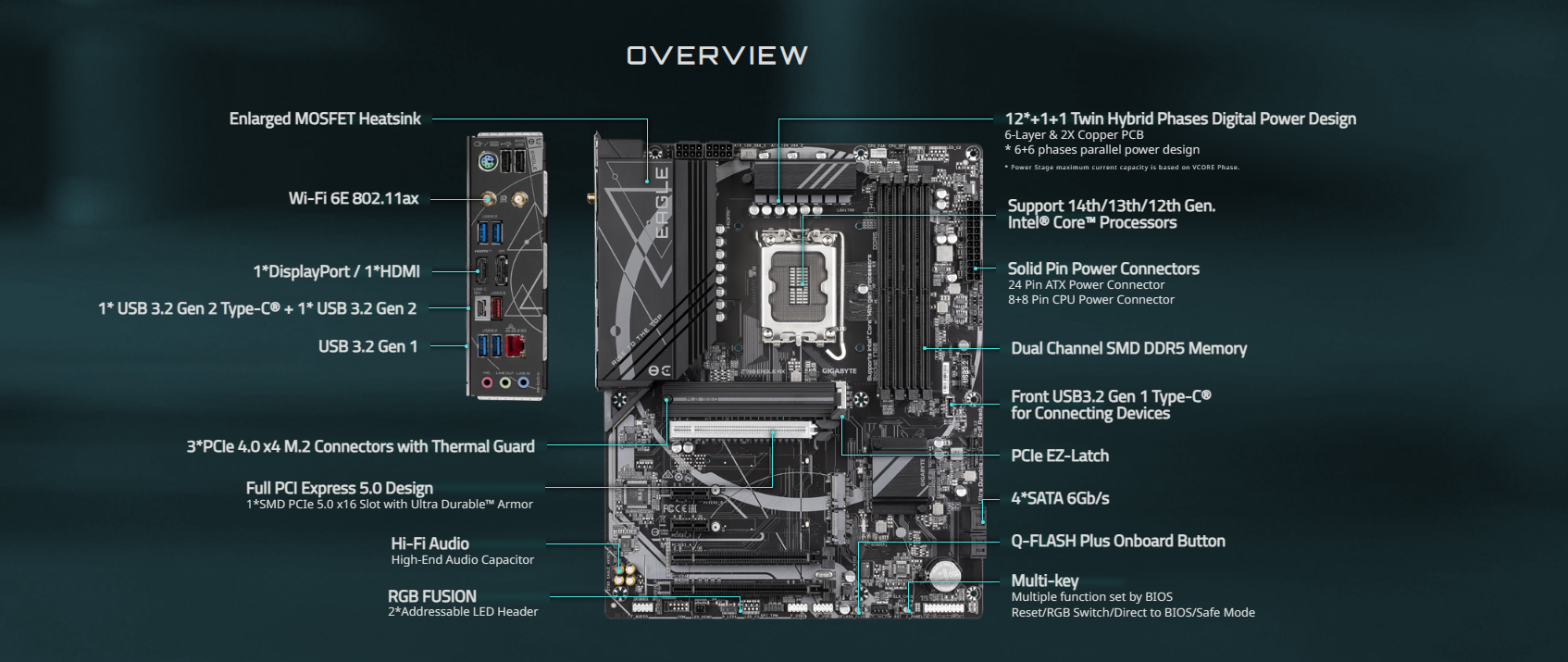

Rear I/O Ports:

1 x USB-C® 3.2 Gen 2

1 x USB-A 3.2 Gen 2

4 x USB-A 3.2 Gen 1

2 x USB 2.0

1 x HDMI

1 x DisplayPort

1 x PS/2 port

1 x RJ-45 LAN

2 x SMA antenna connectors

3 x Audio Jacks

Internal Headers & Connectors:

24-pin ATX, 2 x 8-pin ATX 12V

3 x M.2 sockets, 4 x SATA

4 x fan headers

2 x ARGB headers

USB-C, USB 3.2 Gen 1, USB 2.0

Thunderbolt add-in support

Q-Flash Plus, Reset, and Clear CMOS

Software:

GIGABYTE Control Center (GCC)

Q-Flash / Q-Flash Plus

Smart Backup

Norton Internet Security (OEM)

OS Compatibility: Windows 11 / 10 64-bit
