Product Name:

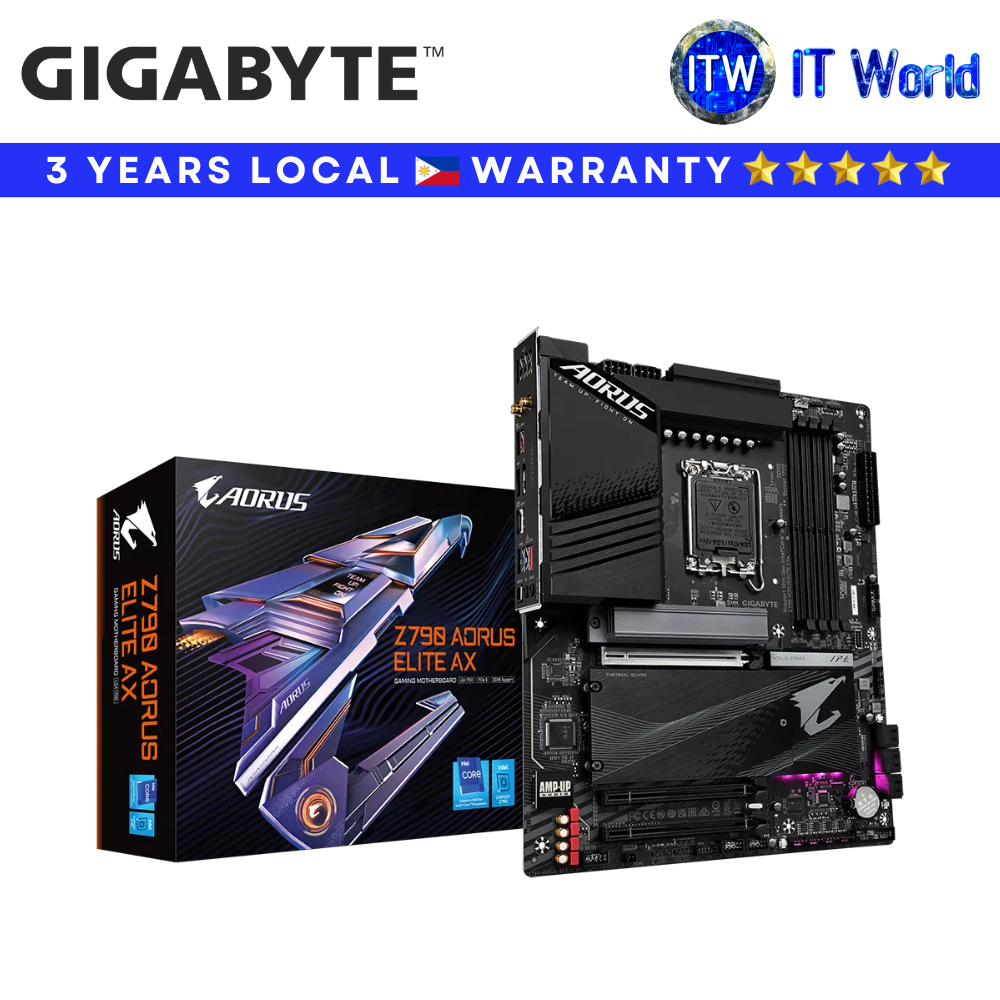

Itw | Gigabyte Motherboard Z790 AORUS ELITE AX DDR5 / ATX / GA1700

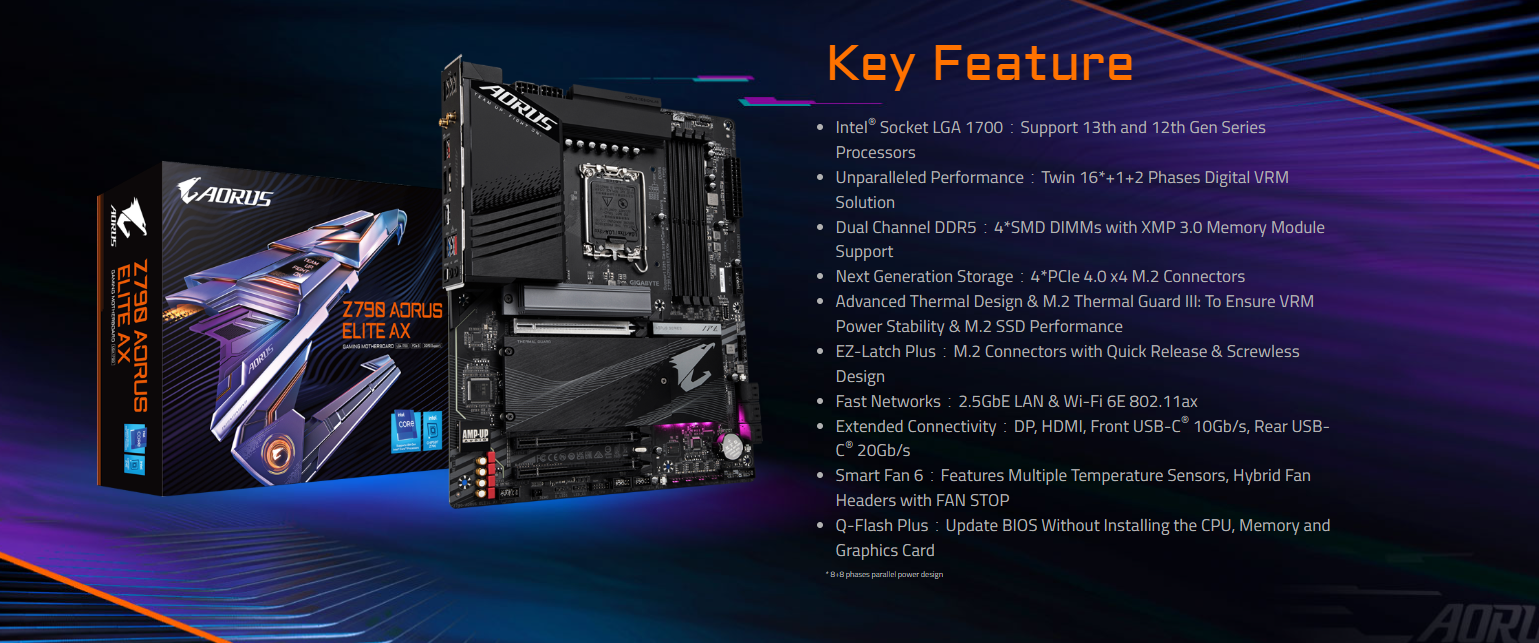

Key Features:
Supports Intel® 14th / 13th / 12th Gen processors
Intel® Z790 Express Chipset
4x DDR5 DIMM slots, up to 256GB
Supports DDR5 speeds up to 7600MHz (OC)
PCIe 5.0 x16 slot + dual PCIe 4.0/3.0 slots
4x M.2 PCIe 4.0 SSD slots + 6x SATA 6Gb/s
Intel® Wi-Fi 6E AX211 + Realtek® 2.5GbE LAN
HDMI 2.1 + DisplayPort 1.2 outputs
RGB Fusion 2.0 with ARGB/RGB headers
Q-Flash Plus, Smart Backup, ECC/Non-ECC memory support
CPU Support:
LGA1700 socket
Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold, and Celeron® processors
Chipset:
Intel® Z790 Express
Memory:
4x DDR5 DIMMs, up to 256GB
Speeds up to 7600MHz (OC)
Dual-channel architecture
Supports ECC (non-ECC mode) and non-ECC modules
Intel® XMP supported
Graphics Output:
1x HDMI 2.1 (4096x2160@60Hz)
1x DisplayPort 1.2 (4096x2304@60Hz)
(Depends on CPU)
Audio:
Realtek® High Definition Audio CODEC
7.1-channel support
S/PDIF Out supported
Networking:
Intel® Wi-Fi 6E AX211 (2.4/5/6GHz)
Bluetooth® 5.3
Realtek® 2.5GbE LAN
Expansion Slots:
1x PCIe 5.0 x16 (CPU)
1x PCIe 4.0 x4
1x PCIe 3.0 x4
Storage:
4x M.2 (PCIe 4.0 / SATA support)
6x SATA 6Gb/s
RAID 0/1/5/10 support (NVMe & SATA)
USB Ports:
Rear I/O:
1x USB-C® 3.2 Gen 2x2
2x USB 3.2 Gen 2 Type-A
3x USB 3.2 Gen 1
4x USB 2.0
Internal:
1x USB-C® 3.2 Gen 2 header
1x USB 3.2 Gen 1 header (2 ports)
2x USB 2.0 headers (4 ports)
Internal Headers:
2x 8-pin + 1x 24-pin ATX power
4x M.2 sockets
6x SATA ports
1x USB-C 3.2 Gen 2
1x USB 3.2 Gen 1
2x USB 2.0
2x RGB + 2x ARGB headers
2x Thunderbolt™ add-in card headers
1x TPM header
4x Fan headers + 1x AIO Pump
Q-Flash Plus + Clear CMOS

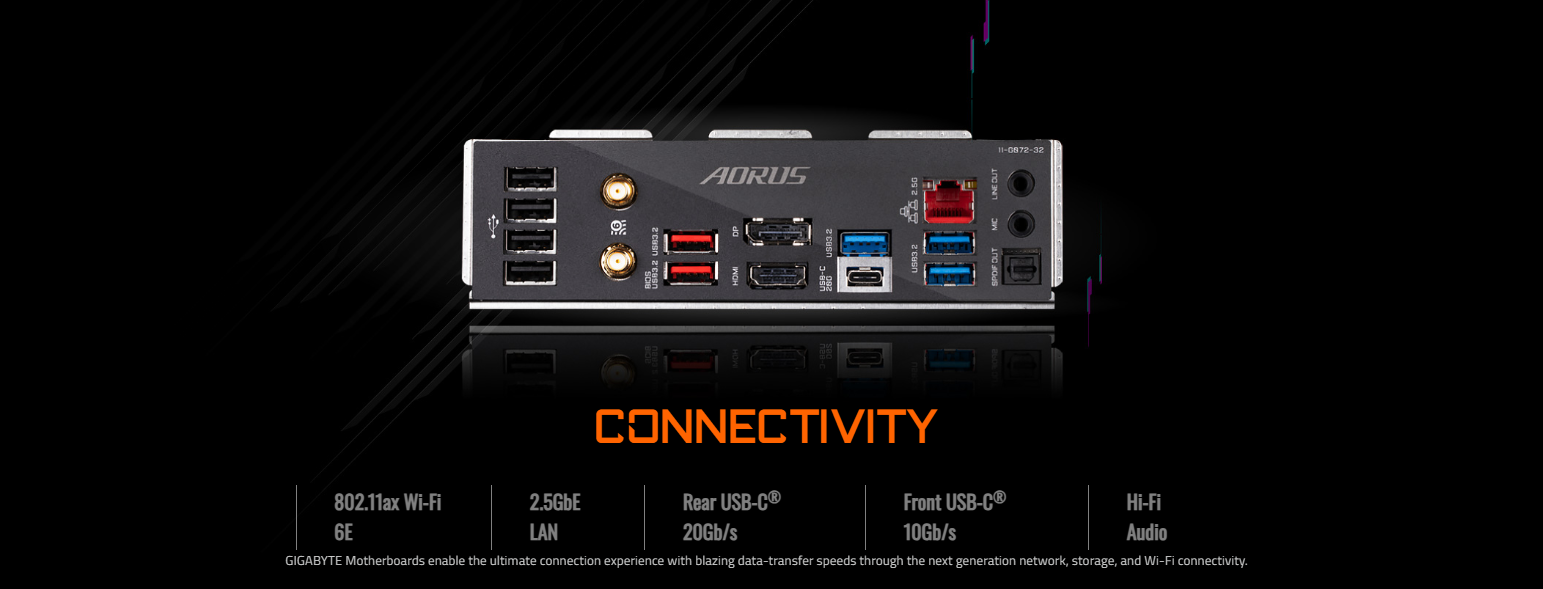

Back Panel I/O:
1x USB-C 3.2 Gen 2x2
2x USB 3.2 Gen 2 Type-A
3x USB 3.2 Gen 1
4x USB 2.0
1x HDMI 2.0
1x DisplayPort
2x Wi-Fi antenna connectors
1x RJ-45 2.5GbE
2x Audio jacks + 1x Optical S/PDIF Out
1x Q-Flash Plus button
1x Clear CMOS button
BIOS:
256Mb UEFI AMI BIOS
Q-Flash, Q-Flash Plus, Smart Backup
Software:
GIGABYTE Control Center
Norton® Internet Security (OEM)
LAN bandwidth management software
Operating System:
Windows 11 64-bit / Windows 10 64-bit
Form Factor:
ATX (30.5cm x 24.4cm)
