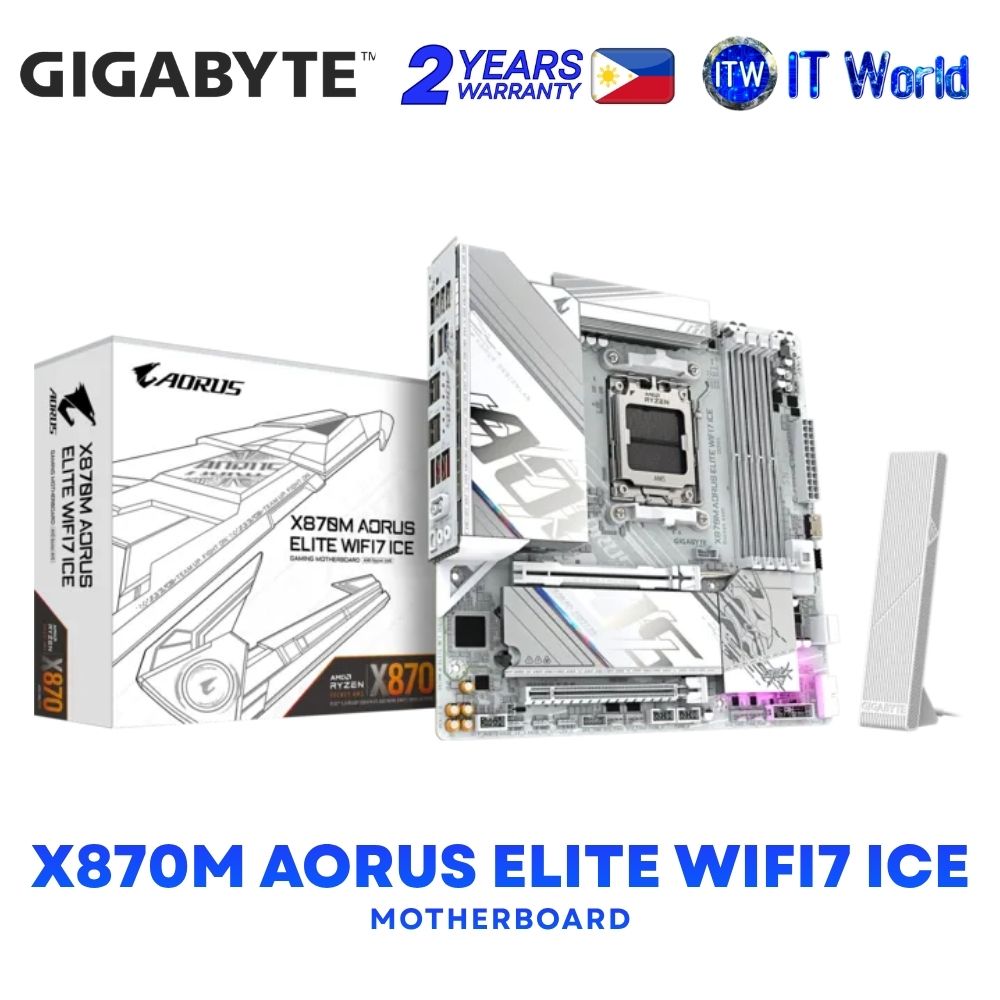

Gigabyte X870M Aorus Elite Wifi7 Ice micro-ATX AM5 DDR5 Motherboard GA-X870M-A-ELITE-WF7-ICE
🌐 Upgrade your PC build with the Gigabyte X870M Aorus Elite WiFi7 Ice, a high-performance Micro-ATX motherboard designed for AMD Ryzen™ 9000, 8000, and 7000 Series processors. Featuring the AMD X870 chipset, DDR5 memory support, Wi-Fi 7 connectivity, and PCIe 5.0 expansion, this motherboard delivers advanced features for gaming-focused and performance-oriented PC builds.
Key Features and Highlights
🎮 X3D Turbo Mode – Unlock enhanced gaming performance with GIGABYTE's X3D Turbo Mode.
🧠 AMD AM5 Platform – Supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors.
⚡ High-Speed DDR5 Memory – Four DDR5 DIMM slots with dual-channel architecture, supporting up to 256GB of memory and overclocked speeds up to 8200 MT/s.
🔋 14+2+2 Digital VRM Design – Features a digital twin 14+2+2 phases VRM solution for power delivery.
💾 Ultra-Fast Storage – Two M.2 connectors, including PCIe 5.0 x4 support, plus two SATA 6Gb/s connectors for storage expansion.
🖥️ PCIe 5.0 x16 Expansion – Equipped with a PCIe 5.0 x16 slot featuring GIGABYTE PCIe UD Slot X technology, designed with 10X strength for graphics cards.
🌐 Wi-Fi 7 Connectivity – Integrated Realtek Wi-Fi 7 wireless module with support for 2.4GHz, 5GHz, and 6GHz bands.
🔗 2.5GbE LAN – Realtek 2.5GbE LAN delivers wired networking support up to 2.5Gbps.
🔌 Dual USB4 Type-C – Two rear USB4 Type-C ports support USB4 connectivity and DisplayPort video output.
🛠️ EZ-Latch Design – Quick-release PCIe and screwless M.2 installation features help simplify component installation and upgrades.
❄️ Advanced Thermal Design – VRM Thermal Armor Advanced and M.2 Thermal Guard Ext. help manage heat around key components.
📡 Bluetooth 5.4 – Integrated Bluetooth connectivity for compatible wireless devices.
🎨 Display Connectivity – Includes HDMI and dual USB4 Type-C ports with DisplayPort video output support, depending on the processor and configuration.
🎵 Realtek ALC1220 Audio – High-definition audio codec with support for multi-channel audio and S/PDIF output.
🖥️ Micro-ATX Form Factor – Compact 24.4 × 24.4 cm motherboard design for compatible PC builds.
Technical Specifications
🔗 Model: X870M AORUS ELITE WIFI7 ICE
🔗 SKU / Part Number: GA-X870M-A-ELITE-WF7-ICE
🔗 Motherboard Chipset: AMD X870
🔗 CPU Socket: AMD Socket AM5
🔗 Supported Processors: AMD Ryzen™ 9000 / 8000 / 7000 Series
🔗 Memory Type: DDR5
🔗 Memory Slots: 4 × DDR5 DIMM
🔗 Maximum Memory Capacity: 256GB
🔗 Memory Architecture: Dual Channel
🔗 Maximum Listed Overclocked Memory Speed: 8200 MT/s (O.C.)
🔗 Expansion Slots: 1 × PCIe x16 slot and 1 × PCIe 4.0 x16 slot operating at x4
🔗 M.2 Slots: 2
🔗 SATA Connectors: 2 × SATA 6Gb/s
🔗 Wireless Networking: Wi-Fi 7
🔗 Bluetooth: 5.4
🔗 Wired Networking: Realtek 2.5GbE LAN
🔗 USB Connectivity: Dual rear USB4 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, and USB 2.0/1.1 connections
🔗 Audio Codec: Realtek ALC1220
🔗 Video Outputs: HDMI and USB4 Type-C with DisplayPort support
🔗 Operating System Support: Windows 11 64-bit
🔗 Form Factor: Micro-ATX
🔗 Motherboard Dimensions: 24.4 × 24.4 cm
Why Choose the GIGABYTE X870M AORUS ELITE WIFI7 ICE?
💻 Build a modern AMD-based PC with support for high-speed DDR5 memory, next-generation PCIe storage, Wi-Fi 7, 2.5GbE networking, and USB4 connectivity. Its compact Micro-ATX layout, convenient EZ-Latch features, and advanced thermal design make it a versatile option for gaming and performance-focused desktop configurations.
