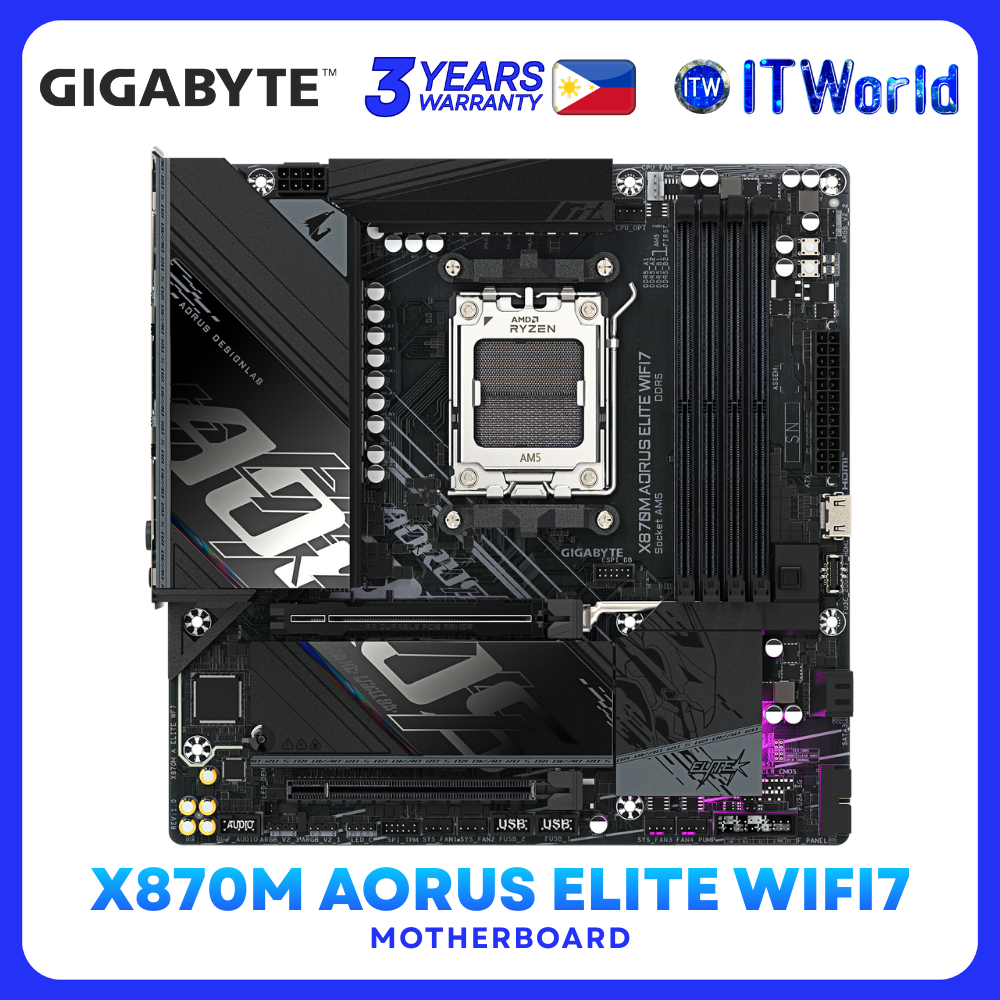

Built for compact yet powerful AMD Ryzen™ systems ⚡❄️ The X870M AORUS ELITE WIFI7 delivers next-gen performance, fast connectivity, and premium AORUS reliability in a Micro-ATX form factor.
🔧 CPU & Chipset
✅ AMD Socket AM5
✅ Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
✅ AMD X870 Chipset
🧠 Memory
🚀 DDR5 up to 8200MT/s (O.C.)
🧩 4× DDR5 DIMM slots, up to 256GB
🔄 Dual-Channel Memory Architecture
⚡ Supports AMD EXPO™ & XMP
✔️ Non-ECC Un-buffered DIMM support
🎮 Graphics & Display
🖥️ Integrated AMD Radeon™ Graphics
⚡ 2× USB4® Type-C (up to 3840×2160@240Hz, DP 1.4, HDR)
📺 1× HDMI 2.1 (up to 4096×2160@60Hz, HDR)
📺 1× Front HDMI 1.4 (up to 1920×1080@30Hz)
🖥️ Display output support depends on CPU
🔊 Audio
🎧 Realtek® ALC1220 CODEC
🔉 2/4/5.1/7.1-Channel High Definition Audio
🎶 DSD Audio support
🔌 Optical S/PDIF Out
🌐 Network & Wireless
⚡ Realtek® 2.5GbE LAN
📡 Realtek® Wi-Fi 7 RTL8922AE
2.4 / 5 / 6 GHz bands
Bluetooth 5.4
11be 160MHz support
🪟 Wi-Fi 7 requires Windows 11 SV3
🧩 Expansion Slots
🎮 1× PCIe 5.0 x16 (CPU, Ryzen™ 9000/7000)
➕ 1× PCIe 4.0 x4 (Chipset)
💾 Storage
⚡ 1× M.2 PCIe 5.0 (CPU)
⚡ 1× M.2 PCIe 4.0 (Chipset)
💽 2× SATA 6Gb/s
🔁 NVMe RAID 0/1/5/10 (RAID 5 Ryzen™ 9000 only)
🔁 SATA RAID 0/1
🔌 USB Ports
⚡ 2× USB4® Type-C (Rear)
🔴 2× USB 3.2 Gen 2 Type-A
🔵 4× USB 3.2 Gen 1
⚫ 4× USB 2.0
➕ Internal USB-C Gen 2x2 header
🧩 Internal Features
❄️ Multiple fan & water-pump headers
🌈 Addressable RGB Gen2 & RGB headers
🔘 Power & Reset buttons
🔁 Q-Flash / Q-Flash Plus
🔐 TPM header support
🧠 iTE® I/O Controller
🖥️ Back Panel I/O
HDMI
2× USB4® Type-C (DisplayPort)
2× USB 3.2 Gen 2 Type-A
4× USB 3.2 Gen 1
4× USB 2.0
2× Wi-Fi antenna ports
2.5GbE LAN
Optical S/PDIF Out
Audio jacks
Clear CMOS & Q-Flash Plus buttons
🧬 BIOS & Software
🧠 AMI UEFI BIOS (256 Mbit)
🛠️ GIGABYTE Control Center (GCC)
🛡️ Norton® Internet Security (OEM)
🖥️ Form Factor & OS
📐 Micro-ATX – 24.4 × 24.4 cm
🪟 Supports Windows 11 64-bit
