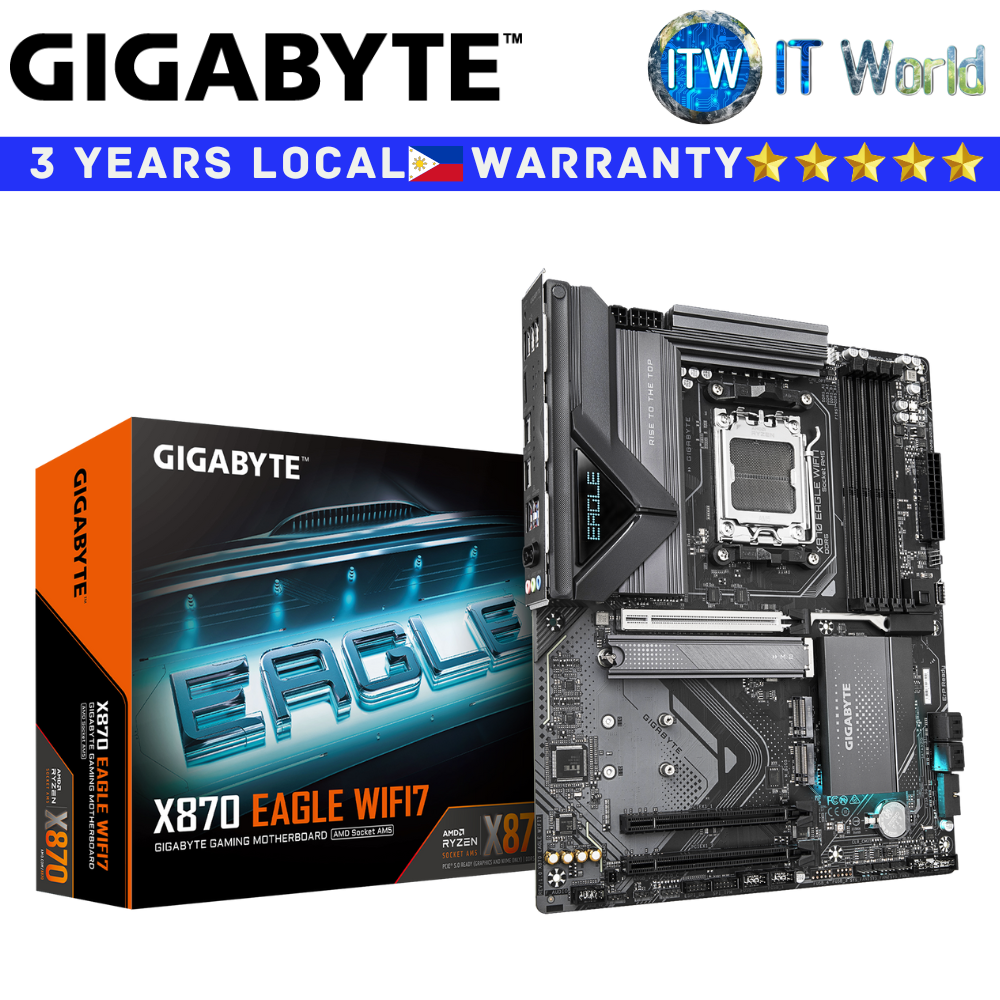

Product Name: Itw | Gigabyte Motherboard X870 Eagle Wifi7 ATX AM5 DDR5 (GA-X870-EAGLE-WIFI7)
Key Features
> AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
> Digital twin 14+2+2 phases VRM solution
> Dual Channel DDR5: 4*DIMMs with AMD EXPO™Memory Module Support
> WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
> EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
> EZ-Latch Click: M.2 heatsinks with screwless design
> Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
> Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
> Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
> Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna
> Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
Specification
CPU
> AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors
Chipset
> AMD X870
Memory
> Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
> Dual channel memory architecture
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Audio
> Realtek® Audio CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
> Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
> MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard
> Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.4
- Support for 11be 160MHz wireless standard (Actual data rate may vary depending on environment and equipment)
* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Storage Interface
> 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
> AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
> AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
> AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
> 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs
> 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2B_SB connector operates at up to x2 mode when a PCIe SSD is installed in the M2C_SB connector.
> 4 x SATA 6Gb/s connectors
> RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
> RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
> CPU+ASMedia USB4® controller: 2 x USB4® USB Type-C® ports on the back panel
> CPU
- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
- 1 x USB 3.2 Gen 1 port on the back panel
> CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
> Chipset
- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Back Panel Connectors
> 1 x Q-Flash Plus button
> 2 x antenna connectors (2T2R)
> 1 x HDMI port*
> 2 x USB4® USB Type-C® ports (DisplayPort*)
> 1 x USB 3.2 Gen 2 Type-A port (red)
> 3 x USB 3.2 Gen 1 ports
> 4 x USB 2.0/1.1 ports
> 1 x RJ-45 port
> 3 x audio jacks
* Actual support may vary by CPU.
Form Factor
> ATX; 30.5cm x 24.4cm
