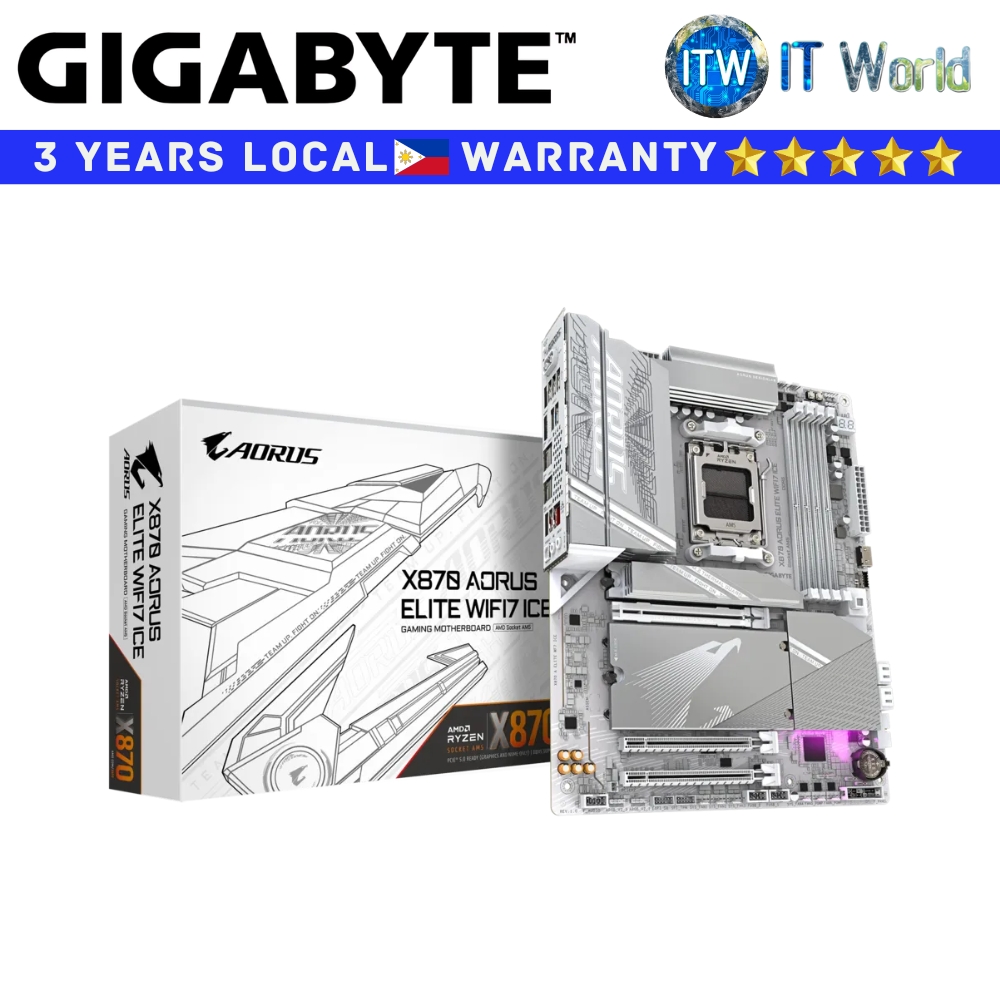

Gigabyte Motherboard X870 Aorus Elite Wifi7 Ice ATX AM5 DDR5 (GA-X870-A-ELITE-WF7-ICE)

Product Name: Itw | Gigabyte Motherboard X870 Aorus Elite Wifi7 Ice ATX AM5 DDR5 (GA-X870-A-ELITE-WF7-ICE)

Key Feature

• AMD Socket AM5：Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors

• Digital twin 16+2+2 phases VRM solution

• Dual Channel DDR5：4*DIMMs with AMD EXPO™ Memory Module Support

• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation

• EZ-Latch Plus：PCIe and M.2 slots with Quick Release & Screwless Design

• EZ-Latch Click：M.2 heatsinks with screwless design

• Sensor Panel Link：Onboard video port for hassle-free in-chassis panel setup

• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW

• Ultra-Fast Storage：4*M.2 slots, including 3* PCIe 5.0 x4

• Efficient Thermal：VRM Thermal Armor Advanced & M.2 Thermal Guard L

• Fast Networking：2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna

• Extended Connectivity：Dual USB4 Type-C with DP-Alt, HDMI

• Reliable Audio：Realtek ALC1220 HD Audio & Audiophile Grade Capacitors

• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability

• PCIe UD Slot X： PCIe 5.0 x16 slot with 10X strength for graphics card

Specification

CPU

• AMD Socket AM5, support for:

• AMD Ryzen™ 9000 Series Processors/

• AMD Ryzen™ 8000 Series Processors/

• AMD Ryzen™ 7000 Series Processors

Chipset

• AMD X870

Memory

• Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

• Dual channel memory architecture

Onboard Graphics

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:

- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

- 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

Audio

• Realtek® ALC1220 CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel

• Support for S/PDIF Out

Lan

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

Expansion Slots

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

Storage Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU+ASMedia USB4® controller:

- 2 x USB4® USB Type-C® ports on the back panel

CPU+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

CPU+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through

the internal USB header

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Form Factor

• ATX Form Factor; 30.5cm x 24.4cm
