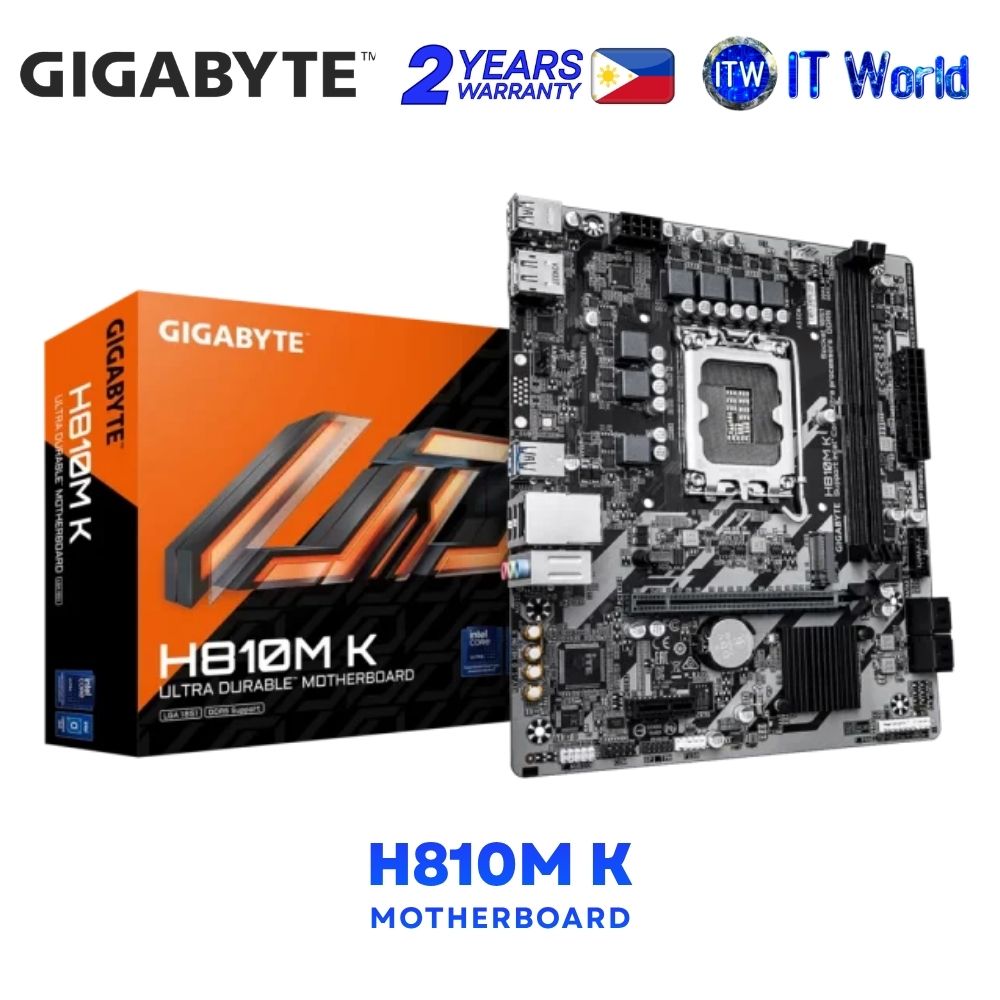

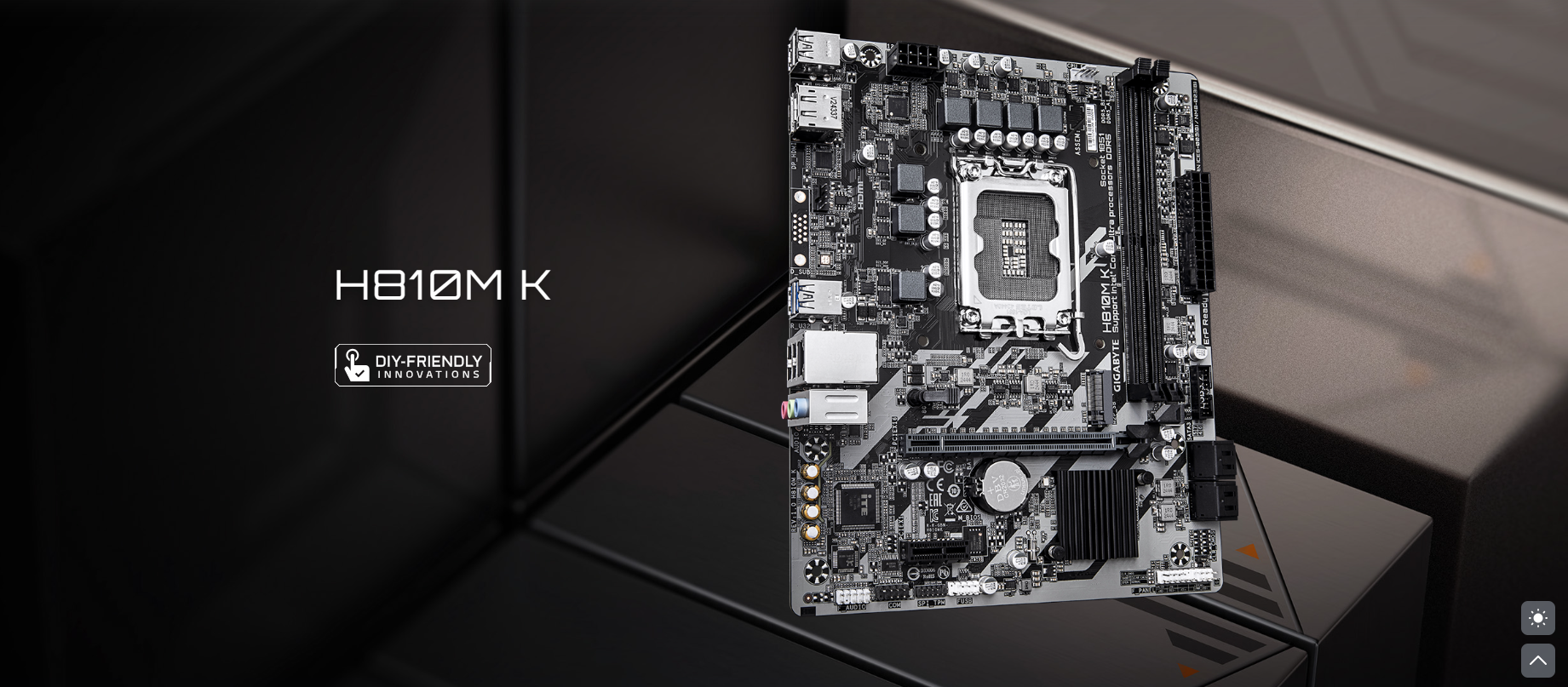

Gigabyte H810M K micro-ATX LGA1851 DDR5 Intel H810 Express Chipset Motherboard
🚀 Build your PC with the Gigabyte H810M K Motherboard, featuring the Intel H810 Express Chipset, LGA1851 socket, and DDR5 memory support. Designed for Intel® Core™ Ultra Processors (Series 2), this micro-ATX motherboard offers modern connectivity, PCIe 4.0 storage support, and convenient hardware features for your PC build.
Key Features & Specifications
Processor Support
🚀 Supports Intel® Core™ Ultra Processors (Series 2)
🚀 LGA1851 CPU socket
🚀 Intel® H810 Express Chipset
Memory Performance
⚡ 2 x DDR5 DIMM slots
⚡ Supports DDR5 6400/5600 MT/s memory modules
⚡ Up to 128GB system memory
⚡ Dual-channel memory architecture
⚡ Supports Intel® XMP memory modules
Power Design
🔧 Hybrid 3+1+2 phases VRM solution
Expansion & Storage
🎮 1 x PCIe 4.0 x16 slot with EZ-Latch quick-release design
🎮 1 x PCIe 3.0 x1 expansion slot
🎮 1 x M.2 connector supporting PCIe 4.0 x4/x2 SSDs (M.2 2280)
🎮 4 x SATA 6Gb/s connectors
Networking & Connectivity
🌐 Realtek® GbE LAN supporting 1 Gbps, 100 Mbps, and 10 Mbps
🌐 1 x DisplayPort supporting up to 4096 × 2304 @ 60Hz
🌐 1 x HDMI supporting up to 4096 × 2160 @ 60Hz
🌐 DisplayPort 2.1 and HDMI 2.1 support
🌐 2 x USB 3.2 Gen 1 ports on the rear panel
🌐 4 x USB 2.0/1.1 ports on the rear panel
🌐 3 x audio jacks
🌐 1 x RJ-45 LAN port
Audio
🎧 Realtek® Audio CODEC
🎧 High Definition Audio
🎧 Supports 2/4/5.1/7.1-channel audio
Convenient Features
🛠️ Multi-theme BIOS user interface
🛠️ Q-Flash with Auto Scan
🛠️ Supports GIGABYTE Control Center (GCC)
🛠️ Supports Smart Backup
🛠️ Hardware voltage, temperature, and fan speed monitoring
🛠️ Fan failure warning and fan speed control support
Operating System Support
💻 Windows 11 64-bit
💻 Windows 10 64-bit
Form Factor
📐 Micro-ATX form factor
