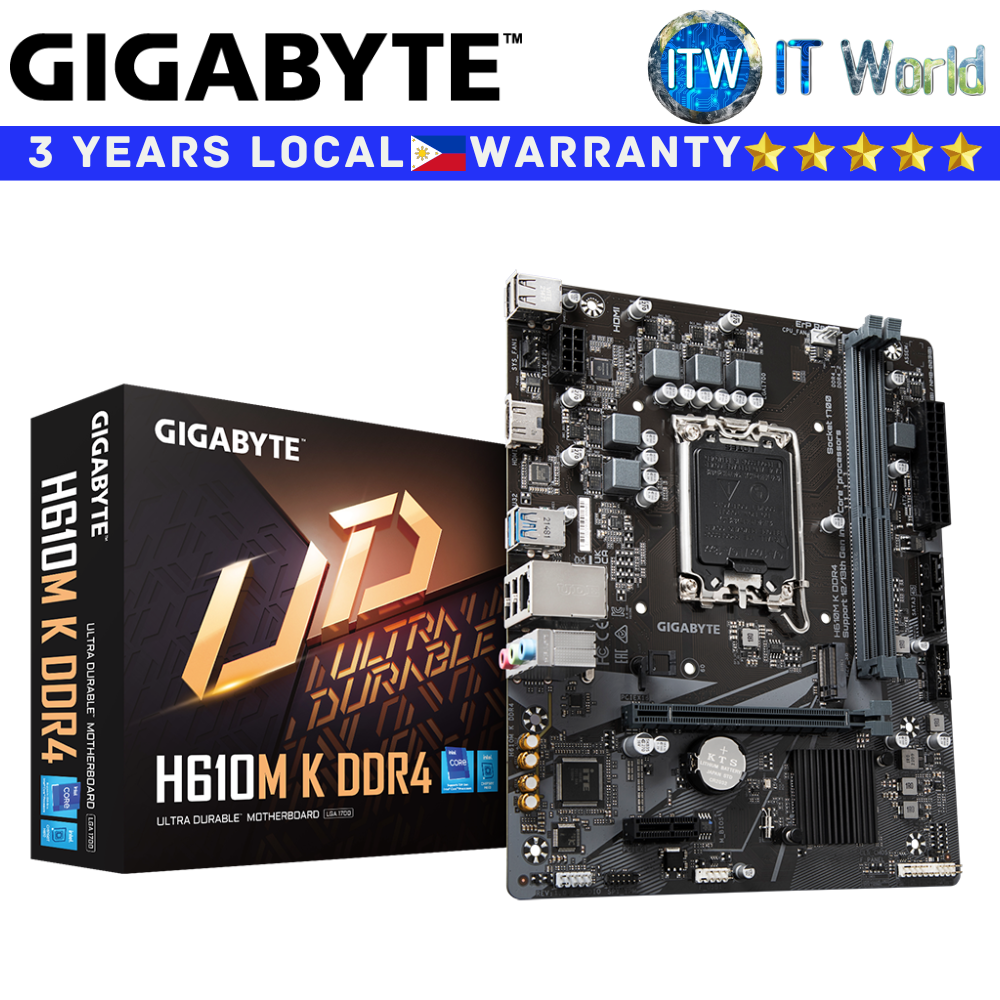

Product Name: Itw | Gigabyte Motherboard H610M-K D4 microATX LGA1700 DDR4
PCIe 4.0* Design, Gen3 x4 M.2, GbE LAN, Anti-Sulfur Resistor, Smart Fan 6
* Supports Intel® Core™ 14th/ 13th /12th processors
* Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
* GbE LAN with Bandwidth Management
* NVMe PCIe 3.0 x4 M.2
* High Quality Audio Capacitors and Audio Noise Guard
* Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
* GIGABYTE APP Center, Simple and Easy Use
* Anti-Sulfur Resistors Design
Specification
CPU
> LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
> L3 cache varies with CPU
Chipset
> Intel® H610 Express Chipset
Memory
> Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
> 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
> Dual channel memory architecture
> Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
> Integrated Graphics Processor-Intel® HD Graphics support
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Audio
> Realtek® Audio CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
> Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
> CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
> Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
USB
> Chipset
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Storage Interface
> Chipset
- 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support)
- 2 x SATA 6Gb/s connectors
Internal I/O Connectors
> 1 x 24-pin ATX main power connector
> 1 x 8-pin ATX 12V power connector
> 1 x CPU fan header
> 1 x system fan header
> 1 x M.2 Socket 3 connector
> 2 x SATA 6Gb/s connectors
> 1 x front panel header
> 1 x front panel audio header
> 1 x USB 3.2 Gen 1 header
> 1 x USB 2.0/1.1 header
> 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
> 1 x Clear CMOS jumper
Back Panel Connectors
> 1 x HDMI port
> 2 x USB 3.2 Gen 1 ports
> 4 x USB 2.0/1.1 ports
> 1 x RJ-45 port
> 3 x audio jacks
I/O Controller
> iTE® I/O Controller Chip
H/W Monitoring
> Voltage detection
> Temperature detection
> Fan speed detection
> Water cooling flow rate detection
> Fan fail warning
> Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
Form Factor
> Micro ATX; 22.6cm x 18.5cm
