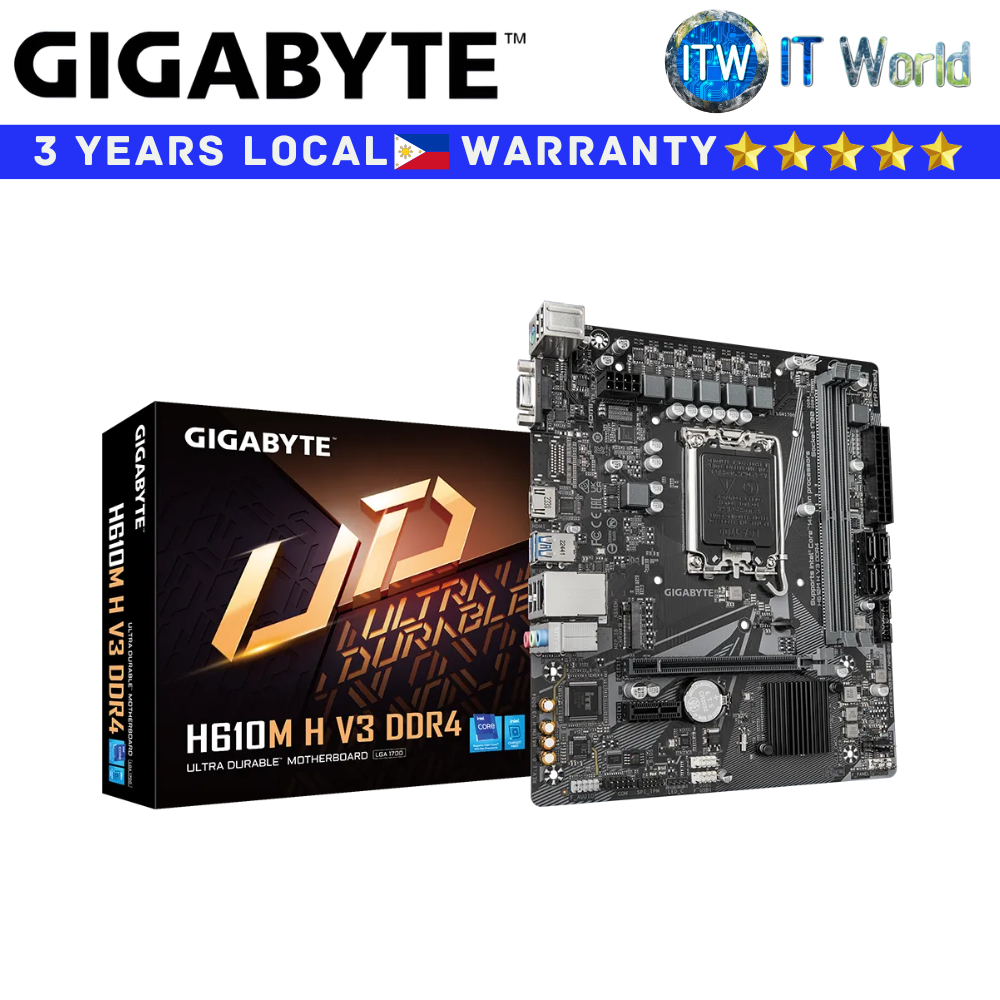

Gigabyte Motherboard H610M H V3 mATX DDR4 (GA-H610M-H-V3-DDR4)

Product Name: Itw | Gigabyte Motherboard H610M H V3 mATX DDR4 (GA-H610M-H-V3-DDR4)

Key Feature

Specification

CPU

• Supports Intel® Core™ 14th/ 13th /12th processors

• Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs

• 4+1+1 Hybrid Digital VRM Design

• GbE LAN with Bandwidth Management

• NVMe PCIe 3.0 x4 M.2

• High Quality Audio Capacitors and Audio Noise Guard

• Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

• GIGABYTE APP Center, Simple and Easy Use

• Anti-Sulfur Resistors Design

Chipset

Intel® H610 Express Chipset

Memory

• Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

• 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

• Dual channel memory architecture

• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

• Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

• 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

• 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Audio

• Realtek® Audio CODEC

• High Definition Audio

• 2/4/5.1/7.1-channel

Lan

Realtek® GbE LAN chip (1 Gbps/100 Gbps/10 Mbps)

Expansion Slots

CPU:

• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

Chipset:

• 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD

support)

• 4 x SATA 6Gb/s connectors

USB

Chipset:

• 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

• 4 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

• 4 x USB 2.0/1.1 ports available through the internal USB headers

Form Factor

Micro ATX Form Factor; 22.3cm x 19.3cm
