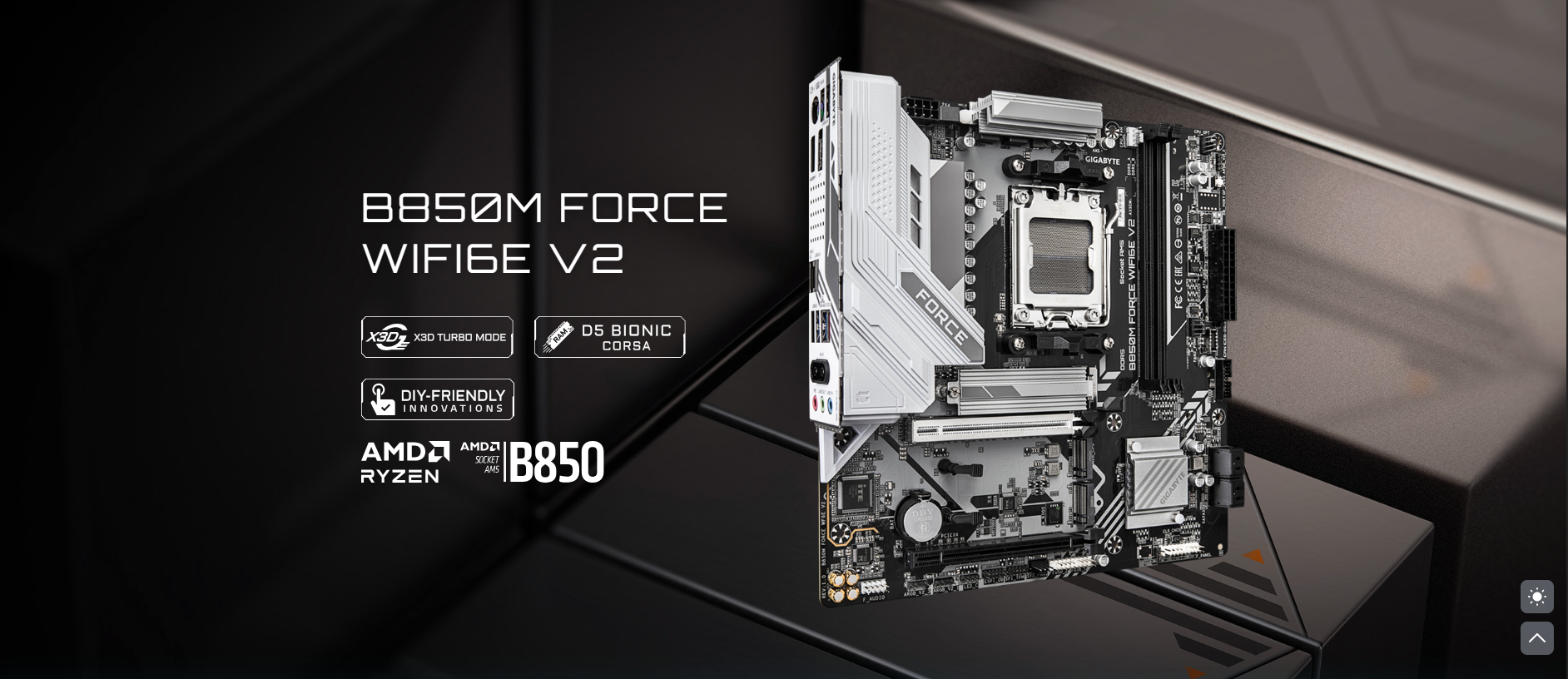

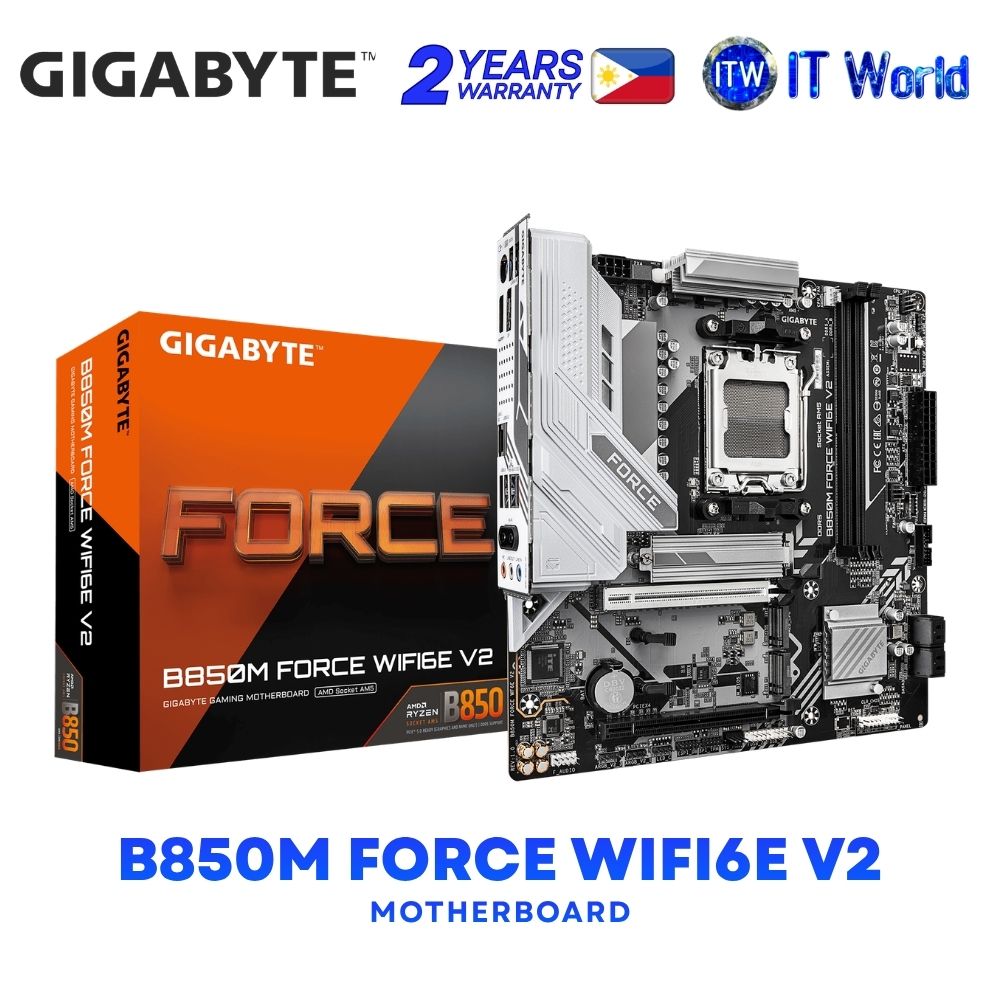

Gigabyte B850M Force Wifi6E micro-ATX AM5 DDR5 AMD B850 Chipset Motherboard GA-B850M-FORCE-WF6E-V2
⚙️ Upgrade your PC build with the Gigabyte B850M Force WiFi 6E Micro-ATX Motherboard, powered by the AMD B850 chipset and designed for AMD Ryzen™ 9000, 8000, and 7000 Series processors. Featuring DDR5 memory support, advanced connectivity, ultra-fast M.2 storage, and Wi-Fi 6E networking, this motherboard delivers a versatile foundation for gaming and everyday computing builds.
Key Features and Specifications
🎮 X3D Turbo Mode – Designed to unleash a new era of gaming performance.
⚙️ AMD AM5 Socket – Supports AMD Ryzen™ 9000, 8000, and 7000 Series processors.
🔌 Digital 8+2+2 Phases VRM – Digital voltage regulator module solution.
🧠 DDR5 Memory Support – Dual-channel architecture with 2 DIMM slots supporting up to 128GB of system memory. Supports AMD EXPO™ and Intel® XMP memory modules.
🚀 High-Speed Memory – Supports DDR5 memory speeds up to 9600 MT/s (OC), depending on CPU and memory configuration.
💾 Ultra-Fast Storage – Three M.2 connectors, including one PCIe 5.0 x4 slot, plus four SATA 6Gb/s connectors.
📡 Wi-Fi 6E Connectivity – MediaTek Wi-Fi 6E module supporting 2.4GHz, 5GHz, and 6GHz bands.
🌐 2.5GbE LAN – Realtek® 2.5GbE LAN for wired network connectivity.
🔵 Bluetooth 5.3 – Supports Bluetooth wireless connectivity.
🎯 PCIe Expansion – One CPU-connected PCIe x16 slot supporting up to PCIe 5.0 x16 with compatible AMD Ryzen™ 9000/7000 Series processors, plus one chipset-connected PCIe 4.0 x16 slot operating at x4.
🖥️ Display Connectivity – One HDMI 2.1 port supporting up to 4096 × 2160 at 60Hz and one DisplayPort 1.4 supporting up to 3840 × 2160 at 144Hz, depending on CPU graphics support.
🔊 High-Definition Audio – Realtek® Audio CODEC supporting 2-, 4-, 5.1-, and 7.1-channel audio configurations.
🔗 Versatile USB Connectivity – Includes rear USB Type-C® with USB 3.2 Gen 1, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1 ports, and USB 2.0/1.1 connections.
🛠️ EZ-Latch Design – PCIe x16 slot with a quick-release design for convenient component installation.
📶 WIFI EZ-Plug – Quick and easy Wi-Fi antenna installation.
🌈 RGB Lighting Support – Includes three addressable RGB Gen2 LED strip headers and one RGB LED strip header.
🌀 Fan and Cooling Control – Supports CPU and system fan headers, water-cooling pump connections, temperature monitoring, and fan speed control.
🔧 Q-Flash Plus – Supports convenient BIOS updating through the Q-Flash Plus feature.
💻 Operating System Support – Compatible with Windows 11 64-bit and Windows 10 64-bit.
📐 Compact Micro-ATX Design – Measures 24.4 × 24.4 cm, making it suitable for compatible Micro-ATX PC builds.
Product Information
⚙️ Model: B850M Force WiFi 6E
⚙️ Chipset: AMD B850
⚙️ CPU Socket: AMD AM5
⚙️ Memory Type: DDR5
⚙️ Maximum Memory Capacity: 128GB
⚙️ Wireless Connectivity: Wi-Fi 6E and Bluetooth 5.3
⚙️ Wired Networking: 2.5GbE LAN
⚙️ Storage: 3 × M.2 and 4 × SATA 6Gb/s
⚙️ Form Factor: Micro-ATX
