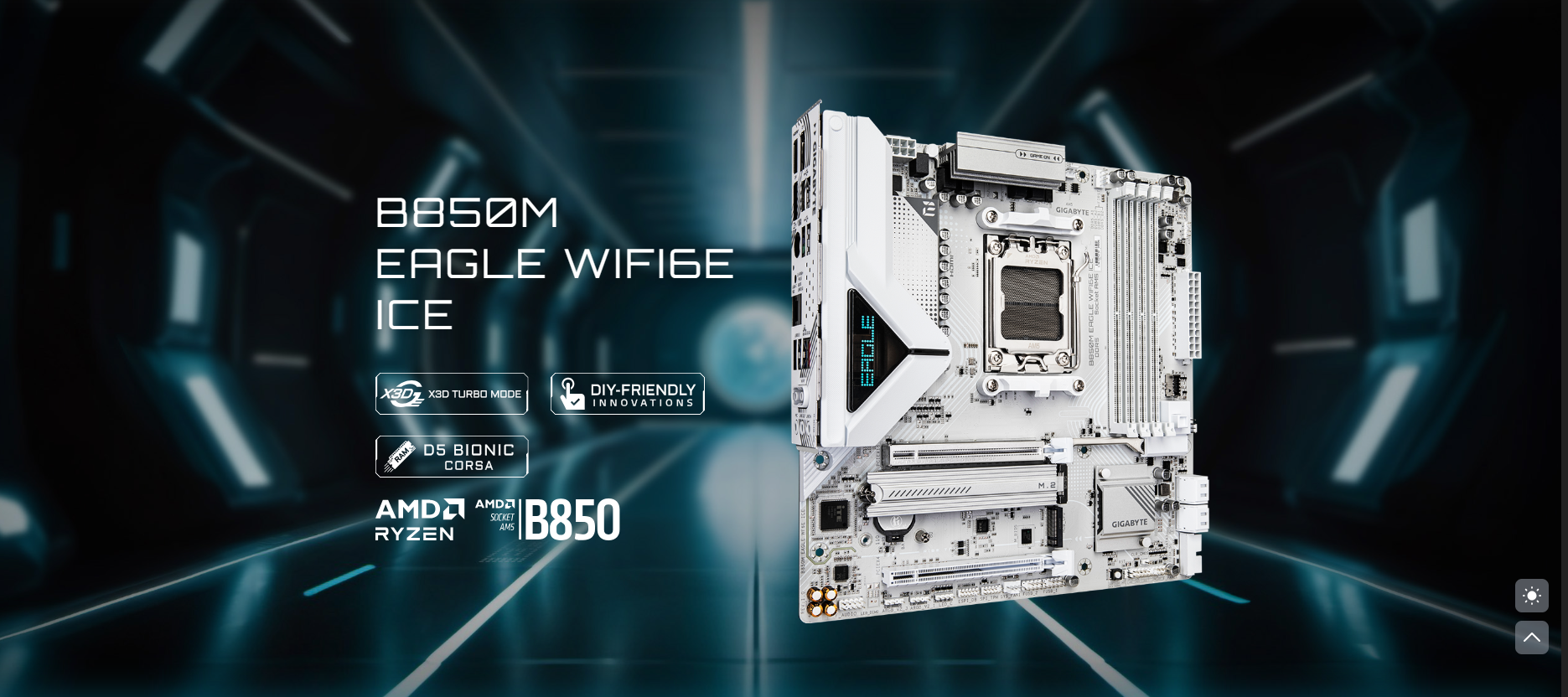

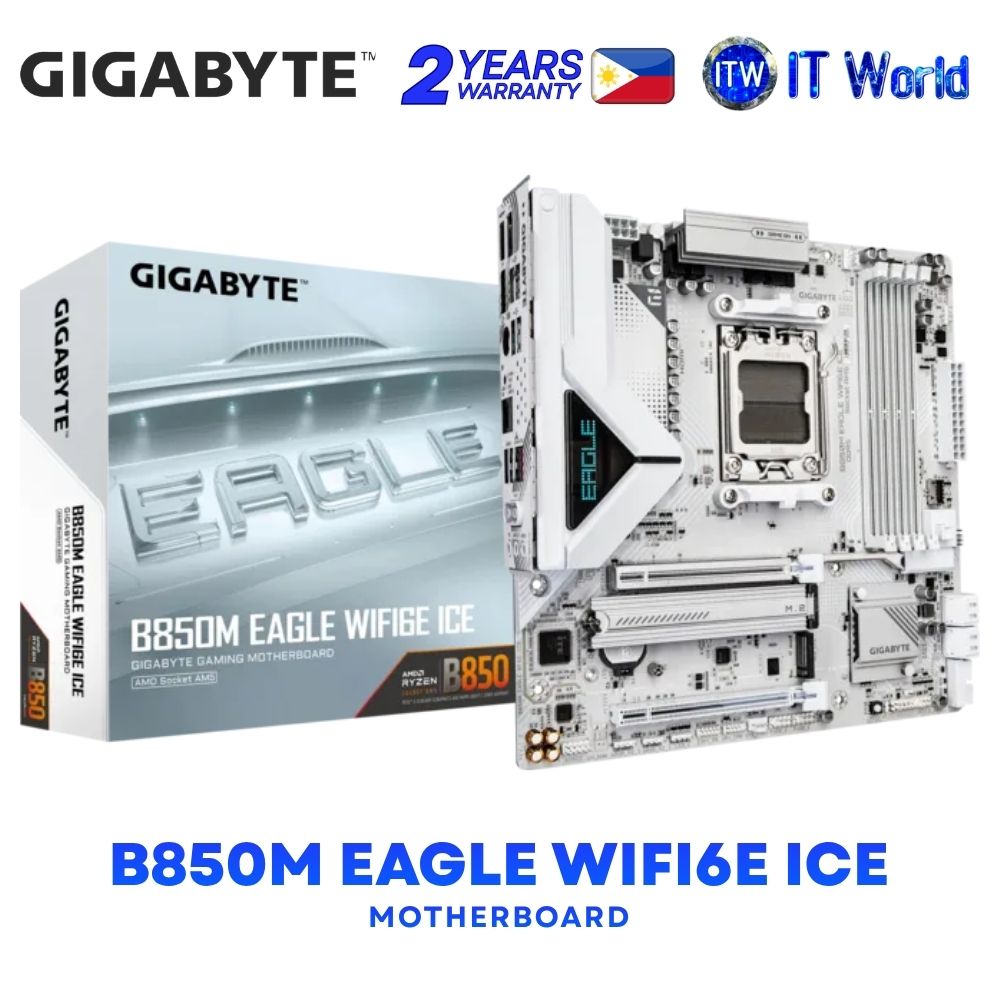

Gigabyte B850M Eagle Wifi6E Ice micro-ATX AM5 DDR5 Motherboard GA-B850M-EAGLE-WF6E-ICE
🛠️ Upgrade your PC build with the Gigabyte B850M Eagle WiFi 6E Ice, a Micro-ATX motherboard featuring the AMD B850 chipset, AM5 socket, DDR5 memory support, and advanced connectivity. Designed for AMD Ryzen™ 9000, 8000, and 7000 Series processors, it combines high-speed storage, wireless networking, efficient thermal solutions, and convenient installation features for a versatile desktop setup.
Key Features & Highlights
🎮 X3D Turbo Mode – Unleash a new era of gaming performance.
⚡ High-Speed DDR5 Memory – Supports DDR5 memory speeds up to 8200 MT/s (O.C.), with four DIMM slots, dual-channel architecture, AMD EXPO™ and Intel® XMP memory profile support.
🔧 AMD AM5 Platform – Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series processors.
🔋 Digital Twin 8+2+2 VRM Design – Designed for power delivery to the processor.
📶 Wi-Fi 6E & Bluetooth 5.3 – Features Realtek® Wi-Fi 6E connectivity across 2.4 GHz, 5 GHz, and 6 GHz bands, plus Bluetooth 5.3.
🌐 2.5GbE LAN – Enjoy wired networking support with a Realtek® 2.5GbE LAN controller.
💾 Dual M.2 Storage Slots – Includes two M.2 connectors, with PCIe 5.0 x4 support depending on the installed processor, plus four SATA 6Gb/s connectors.
❄️ Advanced Thermal Solutions – Features VRM Thermal Armor Advanced and M.2 Thermal Guard to support thermal management.
🛠️ EZ-Latch Plus & EZ-Latch Click – Convenient quick-release PCIe and M.2 slot designs, including screwless M.2 heatsink installation.
📡 WIFI EZ-Plug – Simplifies Wi-Fi antenna installation.
🎨 PCIe 5.0 Armor – Features SMD PCIe 5.0 Armor for enhanced graphics card support.
🖥️ Multi-Display Connectivity – Includes one HDMI port and two DisplayPort connectors, supporting up to three displays simultaneously, depending on the processor.
🔌 Versatile USB Connectivity – Includes rear USB Type-C® and Type-A ports, USB 3.2 Gen 1, and USB 2.0/1.1 connectivity.
🌈 RGB Lighting Support – Features three addressable RGB Gen2 LED strip headers and one RGB LED strip header.
Technical Specifications
🛠️ SKU: GA-B850M-EAGLE-WF6E-ICE
🛠️ Chipset: AMD B850
🛠️ CPU Socket: AMD AM5
🛠️ Supported Processors: AMD Ryzen™ 9000 / 8000 / 7000 Series
🛠️ Memory Type: DDR5
🛠️ Memory Slots: 4 × DDR5 DIMM
🛠️ Maximum Memory Capacity: 256GB
🛠️ Memory Speed: Up to 8200 MT/s (O.C.), depending on CPU and memory configuration
🛠️ Memory Architecture: Dual Channel
🛠️ Expansion Slots: 1 × PCIe x16 slot and 1 × PCIe x16 slot operating at x4
🛠️ Storage: 2 × M.2 slots and 4 × SATA 6Gb/s connectors
🛠️ Wireless: Realtek® Wi-Fi 6E RTL8852CE
🛠️ Bluetooth: Bluetooth 5.3
🛠️ Wired Networking: Realtek® 2.5GbE LAN
🛠️ Display Outputs: 1 × HDMI and 2 × DisplayPort
🛠️ Audio: Realtek® High Definition Audio CODEC
🛠️ Rear USB Connectivity: USB Type-C®, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, and USB 2.0/1.1
🛠️ Operating System Support: Windows 11 64-bit and Windows 10 64-bit
🛠️ Motherboard Dimensions: 24.4 × 24.4 cm
🛠️ Form Factor: Micro-ATX
