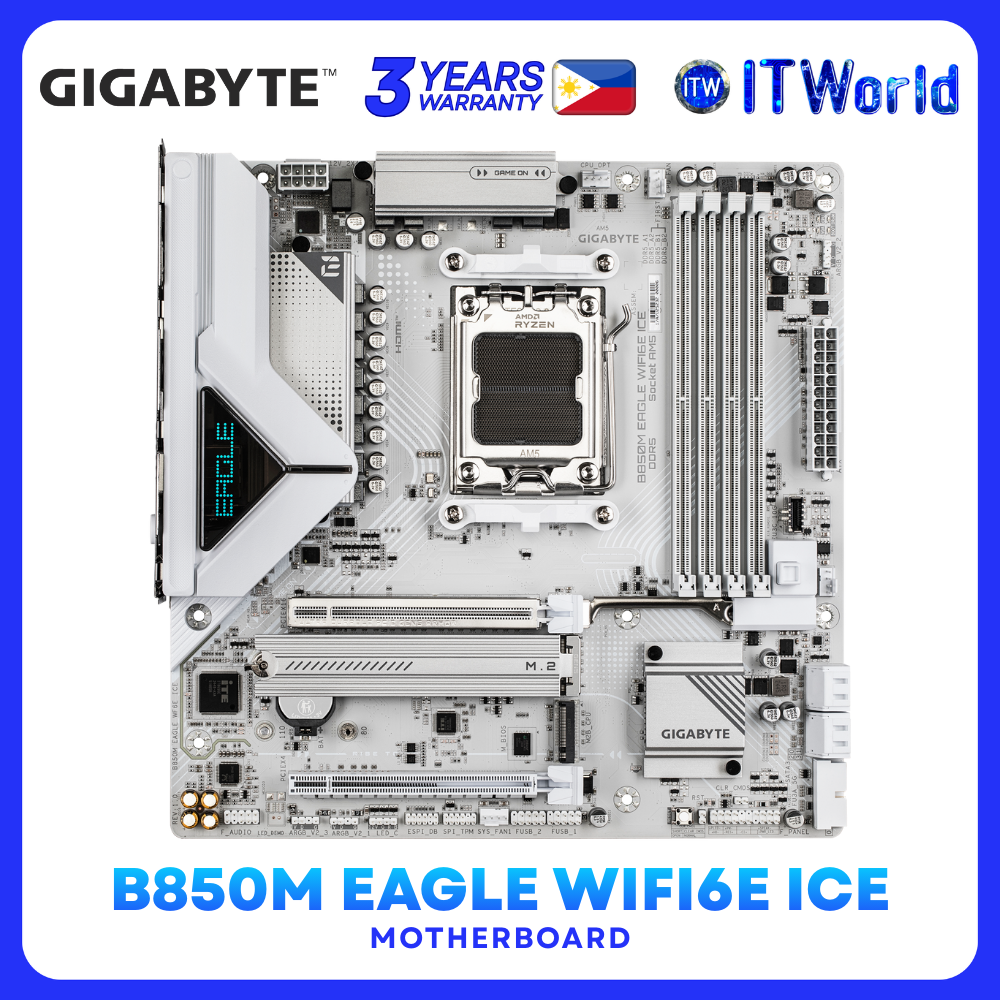

Build a powerful and modern AMD system with next-gen connectivity, high-speed DDR5 memory, and advanced expansion support ❄️🦅
🔧 CPU & Chipset Support
🧠 AMD Socket AM5
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
⚙️ AMD B850 Chipset
⚡ High-Speed DDR5 Memory
💾 4× DDR5 DIMM slots
📦 Supports up to 256GB system memory
🚀 Memory speeds up to DDR5 8200MT/s (OC)
🔁 Dual-channel architecture
✅ Supports AMD EXPO™ & XMP
Non-ECC Un-buffered DIMM support
🎮 Integrated Graphics Output
🖥️ 1× HDMI 2.1 (up to 4096×2160 @60Hz, HDR, HDCP 2.3)
🖥️ 2× DisplayPort 1.4 (up to 3840×2160 @144Hz)
🔀 Supports triple-display output
(Actual display support depends on CPU)
🔊 Audio
🎧 Realtek® Audio CODEC
High Definition Audio
Supports 2 / 4 / 5.1 / 7.1-channel audio
🌐 Networking & Wireless
🔌 Realtek® 2.5GbE LAN
📶 Wi-Fi 6E (2.4 / 5 / 6GHz)
📡 Realtek® RTL8852CE
🔵 Bluetooth 5.3
Supports 11ax 160MHz
🧩 Expansion Slots
🎮 1× PCIe x16 slot (CPU-based)
PCIe 5.0 x16 (Ryzen™ 9000 / 7000)
PCIe 4.0 x8 / x4 (Ryzen™ 8000)
➕ 1× PCIe 3.0 x16 (x4 mode)
💽 Storage Support
⚡ 2× M.2 Socket 3 (CPU-integrated)
PCIe 5.0 / 4.0 support (CPU dependent)
📀 4× SATA 6Gb/s ports
🔐 RAID support:
NVMe: RAID 0 / 1 / 5* / 10
SATA: RAID 0 / 1 / 10
(RAID 5 for Ryzen™ 9000 Series only)
🔌 USB Connectivity
Rear Panel:
1× USB-C® USB 3.2 Gen 2
1× USB 3.2 Gen 2 Type-A (Red)
2× USB 3.2 Gen 1
4× USB 2.0/1.1
Internal Headers:
1× USB-C® USB 3.2 Gen 2 header
1× USB 3.2 Gen 1 header
2× USB 2.0/1.1 headers
🌈 Internal I/O & RGB
3× Addressable RGB Gen2 headers ✨
1× RGB LED header
CPU / system fan & pump headers
TPM header
Reset button & Clear CMOS jumper
🛠️ Back Panel I/O
HDMI, DisplayPort ×2
Q-Flash Plus button
PS/2 combo port
USB ports (Type-A & Type-C)
2.5Gb LAN
Wi-Fi antenna connectors
3× Audio jacks
💻 BIOS & Software
AMI UEFI BIOS (256 Mbit)
Supports Q-Flash & Q-Flash Plus
GIGABYTE Control Center (GCC)
Bundled Norton® Internet Security (OEM)
🖥️ Operating System Support
Windows® 11 64-bit
Windows® 10 64-bit
📐 Form Factor
Micro-ATX
Size: 24.4 × 24.4 cm
⚠️ Reminders:
1️⃣ Please record a full unboxing video as proof in case of issues.
2️⃣ Verify the delivery rider’s ID or take a photo with your payment for security.
