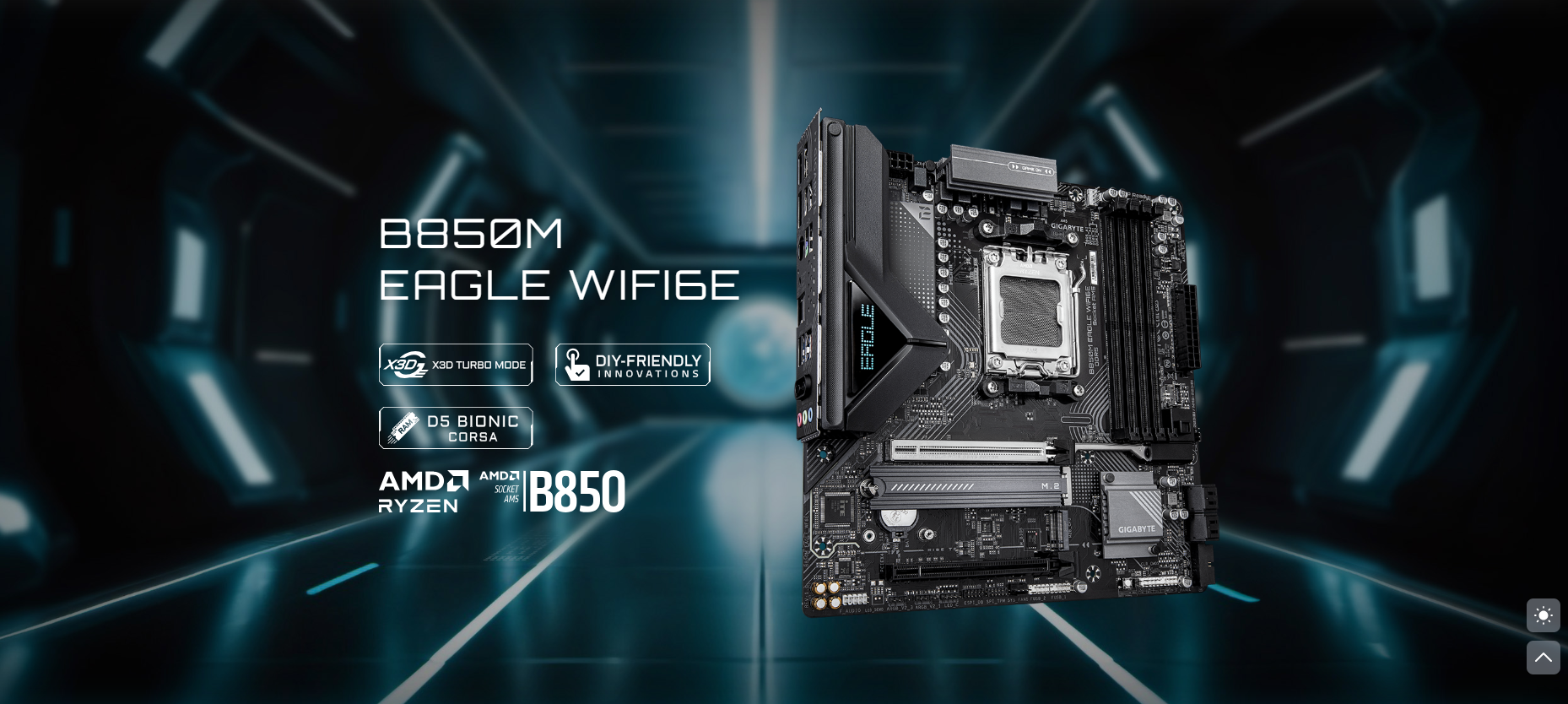

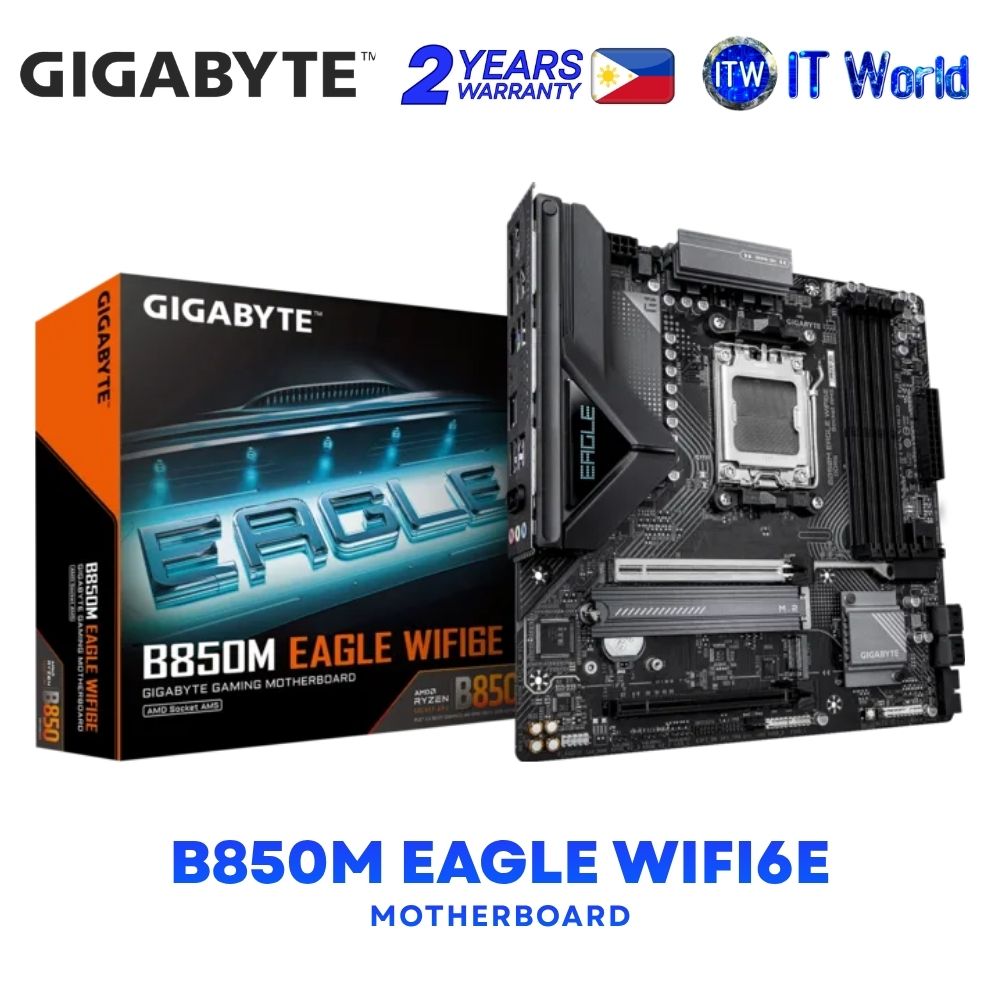

Gigabyte B850M Eagle Wifi6E micro-ATX AM5 DDR5 AMD B850 Chipset Motherboard GA-B850M-EAGLE-WF6E
✨ Upgrade your PC build with the Gigabyte B850M Eagle WiFi 6E, a Micro-ATX motherboard featuring the AMD B850 chipset and AM5 socket. Designed to support AMD Ryzen™ 9000, 8000, and 7000 Series processors, it combines DDR5 memory support, fast wireless connectivity, high-speed storage, and advanced thermal solutions for a versatile computing setup.
Key Features & Highlights
🎮 X3D Turbo Mode – Designed to enhance gaming performance.
⚡ AMD AM5 Platform – Supports AMD Ryzen™ 9000, 8000, and 7000 Series processors.
🚀 High-Speed DDR5 Memory – Supports up to 8200 MT/s overclocked memory speeds, with four DDR5 DIMM slots and up to 256GB system memory capacity.
🔧 Digital Twin 8+2+2 Phases VRM – Features a digital twin VRM power design.
📡 Wi-Fi 6E & Bluetooth 5.3 – Equipped with Realtek Wi-Fi 6E and Bluetooth 5.3 for wireless connectivity across supported frequency bands.
🌐 2.5GbE LAN – Features Realtek 2.5GbE LAN for high-speed wired networking.
💾 Dual M.2 Storage Slots – Includes two M.2 connectors, with PCIe 5.0 x4 SSD support depending on the processor used, plus four SATA 6Gb/s connectors.
🌡️ Advanced Thermal Solutions – Features VRM Thermal Armor Advanced and M.2 Thermal Guard to support thermal management.
🛠️ EZ-Latch Plus & EZ-Latch Click – Quick-release PCIe and M.2 slot designs, including screwless M.2 heatsink installation.
📶 WIFI EZ-Plug – Provides a quick and easy Wi-Fi antenna installation design.
🎨 PCIe 5.0 Armor – Features a reinforced PCIe 5.0 slot design for enhanced graphics card support.
🖥️ Multiple Display Outputs – Includes one HDMI port and two DisplayPort connectors, with support for up to three displays simultaneously. Actual display support depends on the processor.
🔌 Extensive Connectivity – Includes USB Type-C®, USB Type-A, USB 3.2 Gen 1, USB 2.0, RJ-45 LAN, PS/2, and audio connectors.
💡 RGB Lighting Support – Includes three addressable RGB Gen2 LED strip headers and one RGB LED strip header.
🧰 Convenient BIOS Features – Supports Q-Flash, Q-Flash Plus, and GIGABYTE Control Center.
Technical Specifications
✨ SKU: GA-B850M-EAGLE-WF6E
✨ Chipset: AMD B850
✨ CPU Socket: AMD AM5
✨ Supported Processors: AMD Ryzen™ 9000 / 8000 / 7000 Series
✨ Memory Type: DDR5
✨ Memory Slots: 4 x DDR5 DIMM
✨ Maximum Memory Capacity: 256GB
✨ Maximum Supported Memory Speed: 8200 MT/s (O.C.)
✨ Memory Architecture: Dual Channel
✨ Expansion Slots: 1 x PCIe x16 slot supporting PCIe 5.0 with compatible processors; 1 x PCIe x16 slot running at PCIe 3.0 x4
✨ Storage: 2 x M.2 connectors, 4 x SATA 6Gb/s connectors
✨ Wireless Connectivity: Realtek Wi-Fi 6E RTL8852CE
✨ Bluetooth: Bluetooth 5.3
✨ Wired Networking: Realtek 2.5GbE LAN
✨ Display Outputs: 1 x HDMI, 2 x DisplayPort
✨ Audio: Realtek Audio CODEC, High Definition Audio
✨ USB Connectivity: USB Type-C®, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0/1.1
✨ Operating System Support: Windows 11 64-bit / Windows 10 64-bit
✨ Form Factor: Micro-ATX
✨ Motherboard Dimensions: 24.4 x 24.4 cm
