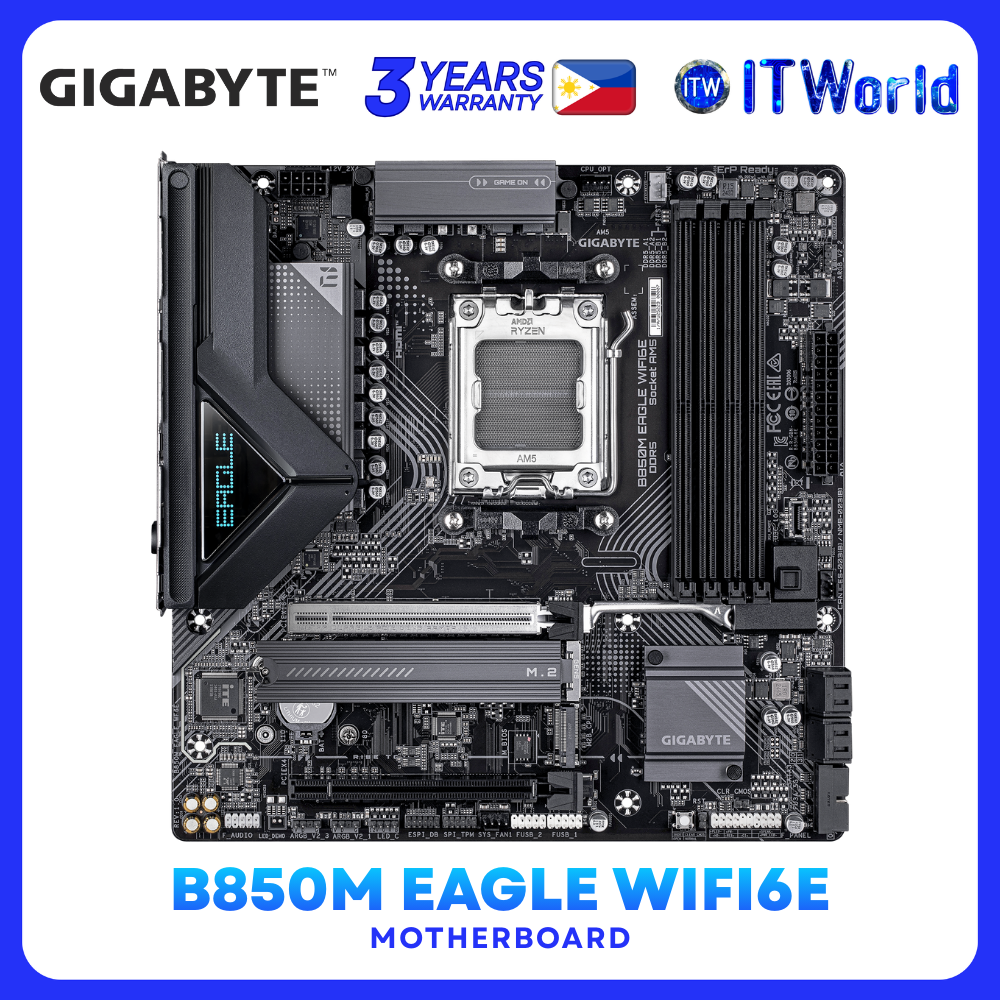

Unleash next-generation AMD performance with a feature-packed Micro-ATX motherboard designed for speed, connectivity, and stability 🦅⚡
🧠 CPU & Chipset
AMD Socket AM5
Supports:
AMD Ryzen™ 9000 Series
AMD Ryzen™ 8000 Series
AMD Ryzen™ 7000 Series
AMD B850 Chipset
💾 Memory Support
4 × DDR5 DIMM slots
Supports up to 256GB system memory
Dual Channel Memory Architecture
Memory speed support up to DDR5 8200MT/s (OC)
Supports AMD EXPO™ & XMP
Supports non-ECC Un-buffered DIMM (1Rx8 / 2Rx8 / 1Rx16)
🎮 Integrated Graphics Output
1 × HDMI 2.1
Up to 4096×2160 @60Hz
HDR & HDCP 2.3 support
2 × DisplayPort 1.4
Up to 3840×2160 @144Hz
Supports triple-display output
(Graphics support may vary by CPU)
🔊 Audio
Realtek® Audio CODEC
High Definition Audio
Supports 2 / 4 / 5.1 / 7.1-channel audio
🌐 LAN & Wireless Connectivity
Realtek® 2.5GbE LAN
Wi-Fi 6E (2.4 / 5 / 6GHz)
Realtek® RTL8852CE
Bluetooth 5.3
Supports 11ax 160MHz
🧩 Expansion Slots
1 × PCI Express x16 (CPU)
PCIe 5.0 x16 (Ryzen™ 9000 / 7000)
PCIe 4.0 x8 / x4 (Ryzen™ 8000)
1 × PCI Express x16 (Chipset, PCIe 3.0 x4)
💽 Storage Interface
2 × M.2 Socket 3 (CPU-integrated)
Supports PCIe 5.0 / 4.0 SSDs (CPU dependent)
4 × SATA 6Gb/s ports
RAID Support:
NVMe: RAID 0 / 1 / 5* / 10
SATA: RAID 0 / 1 / 10
(RAID 5 available on Ryzen™ 9000 Series only)
🔌 USB Ports
Rear Panel:
1 × USB Type-C® (USB 3.2 Gen 2)
1 × USB 3.2 Gen 2 Type-A (Red)
2 × USB 3.2 Gen 1
4 × USB 2.0/1.1
Internal Headers:
1 × USB Type-C® (USB 3.2 Gen 2)
1 × USB 3.2 Gen 1
2 × USB 2.0/1.1
🌈 Internal I/O & Controls
3 × Addressable RGB Gen2 headers ✨
1 × RGB LED strip header
CPU / System fan & pump headers
TPM header
Reset button
Clear CMOS jumper
🔙 Back Panel I/O
HDMI & DisplayPort outputs
Q-Flash Plus button
PS/2 keyboard/mouse port
USB Type-A & Type-C ports
2.5Gb LAN port
Wi-Fi antenna connectors
3 × Audio jacks
💻 BIOS & Software
AMI UEFI BIOS (256 Mbit)
Supports Q-Flash & Q-Flash Plus
GIGABYTE Control Center (GCC)
Bundled Norton® Internet Security (OEM)
LAN bandwidth management software
🖥️ Operating System
Windows® 11 64-bit
Windows® 10 64-bit
📐 Form Factor
Micro-ATX
Size: 24.4 × 24.4 cm
