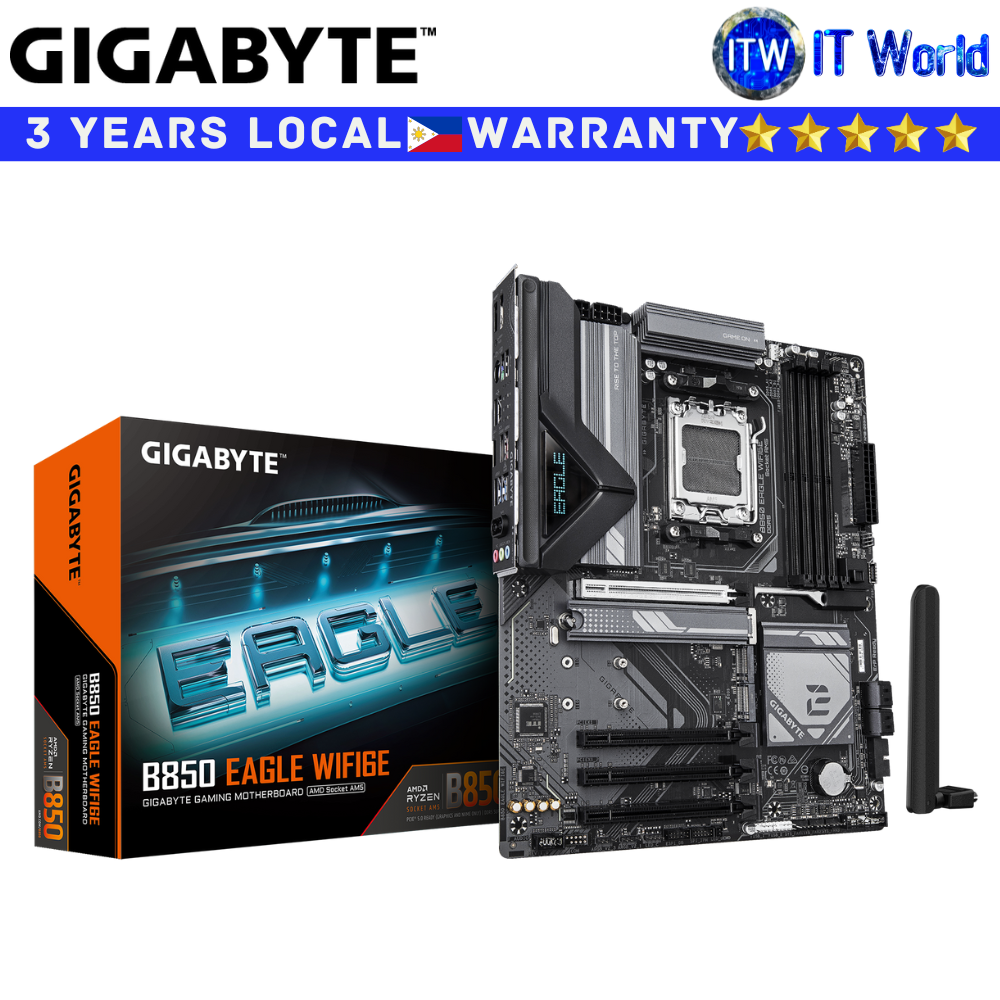

Product Name: Itw | Gigabyte Motherboard B850 Eagle Wifi6E ATX AM5 DDR5 (GA-B850-EAGLE-WIFI6E)
Key Features
> X3D Turbo Mode: Unleash new era gaming performance
> DDR5 OC up to 8200MT/s
> AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
> Digital twin 8+2+2 phases VRM solution
> Dual Channel DDR5: 4*DIMMs with AMD EXPO™Memory Module Support
> WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
> EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
> EZ-Latch Click: M.2 heatsinks with screwless design
> Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
> Ultra-Fast Storage: 3*M.2 slots, including PCIe 5.0 x4
> Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
> Fast Networking: GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
> Extended Connectivity: HDMI, Displayport
> PCIe UD Slot: PCIe 5.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
Specification
CPU
> AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors / AMD Ryzen™ 8000 Series Processors / AMD Ryzen™ 7000 Series Processors
Chipset
> AMD B850
Memory
> Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
> 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
> Dual channel memory architecture
> Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
> Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules.
Audio
> Realtek® Audio CODEC
> High Definition Audio
> 2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
> Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Wireless Communication module
> Intel® Wi-Fi 6E AX210 (PCB rev. 1.0)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
> Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment)
USB
> CPU
- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
> Chipset
- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
- 4 x USB 2.0/1.1 ports on the back panel
> Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Back Panel Connectors
> 1 x DisplayPort*
> 1 x HDMI port*
> 1 x Q-Flash Plus button
> 4 x USB 2.0/1.1 ports
> 1 x PS/2 keyboard/mouse port
> 2 x USB 3.2 Gen 2 Type-A ports (red)
> 1 x USB Type-C® port, with USB 3.2 Gen 1 support
> 1 x RJ-45 port
> 2 x USB 3.2 Gen 1 ports
> 2 x antenna connectors (2T2R)
> 3 x audio jacks
* Actual support may vary by CPU.
Form Factor
> ATX; 30.5cm x 24.4cm
