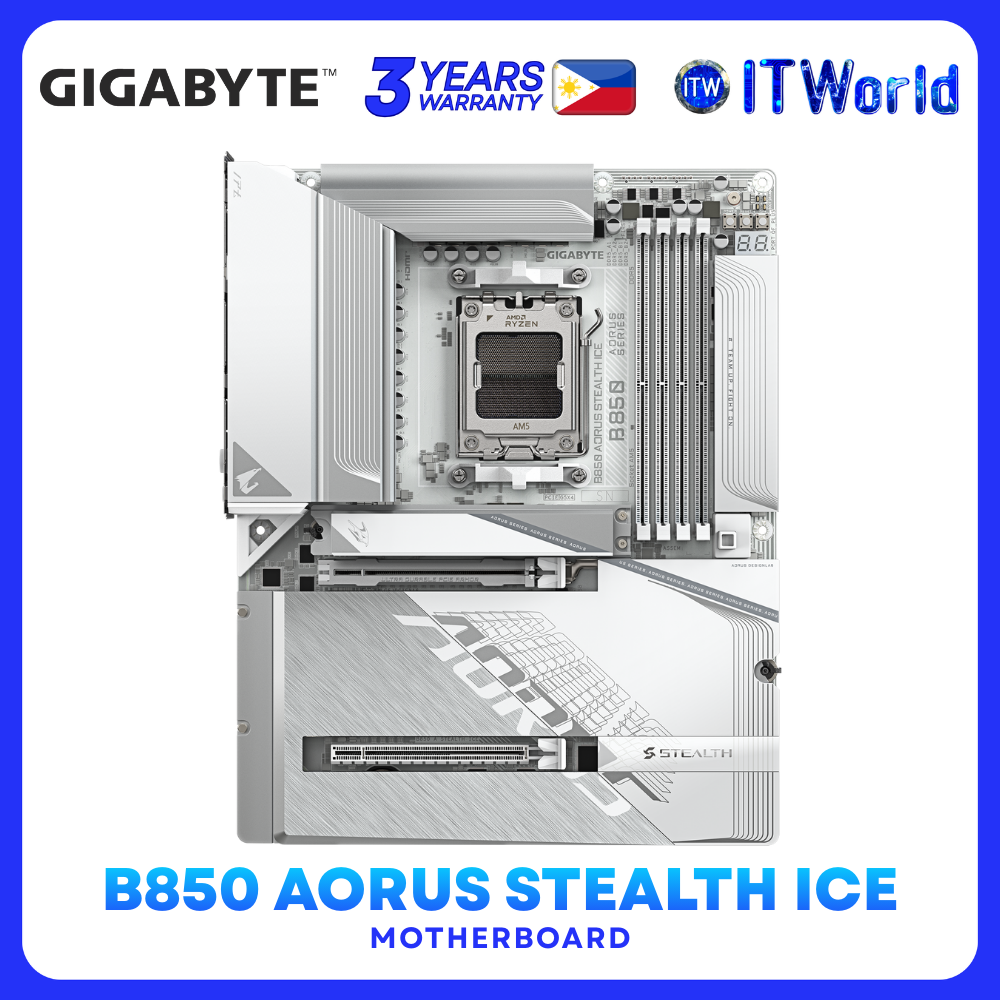

Experience clean aesthetics ❄️ and next-gen AMD performance with the B850 AORUS STEALTH ICE, designed for powerful Ryzen™ builds with high-speed connectivity and premium AORUS features.
🧠 CPU & Chipset
✅ AMD Socket AM5
⚙️ Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
🧩 AMD B850 Chipset
💾 Memory
🚀 DDR5 up to 8200MT/s (O.C.)
🧠 4× DDR5 DIMM slots, up to 256GB
🔄 Dual-channel memory architecture
⚡ Supports AMD EXPO™ & XMP
✔️ Non-ECC Un-buffered DIMM support
🎮 Onboard Graphics
🖥️ Integrated AMD Radeon™ Graphics
📺 1× HDMI 2.1, up to 4096×2160@60Hz
🌈 HDR & HDCP 2.3 support
(Graphics output depends on CPU)
🔊 Audio
🎧 Realtek® ALC1220 CODEC
🔉 2 / 4 / 5.1 / 7.1-channel HD Audio
🎶 DSD Audio support
🔌 Optical S/PDIF Out
🌐 Network & Wireless
⚡ Realtek® 5GbE LAN (5G / 2.5G / 1G / 100Mbps)
📡 Realtek® Wi-Fi 7 RTL8922AE
2.4 / 5 / 6 GHz bands
📶 11be 160MHz
🔵 Bluetooth 5.4
🪟 Wi-Fi 7 requires Windows 11 SV3
🧩 Expansion Slots
🎮 1× PCIe 5.0 x16 (CPU)
➕ 1× PCIe 4.0 x16 (x4 mode)
Bandwidth shared with M2D_SB
💽 Storage
⚡ 2× M.2 PCIe 5.0 (CPU)
⚡ 2× M.2 PCIe 4.0 (Chipset)
💾 2× SATA 6Gb/s
🔁 NVMe RAID 0 / 1 / 5 / 10
(RAID 5 Ryzen™ 9000 only)
🔁 SATA RAID 0 / 1
🔌 USB Connectivity
🔵 1× USB-C USB 3.2 Gen 2 (Rear)
🔴 2× USB 3.2 Gen 2 Type-A
🔵 4× USB 3.2 Gen 1
⚫ 4× USB 2.0
➕ Internal USB-C Gen 2x2 header
🛠️ Internal Features
❄️ Multiple fan & water-pump headers
🌈 Addressable RGB Gen2 & RGB headers
🔘 Power & Reset buttons
🔁 Q-Flash / Q-Flash Plus
🧠 iTE® I/O Controller
🔐 TPM header support
🖥️ Back Panel I/O
HDMI
2× USB 3.2 Gen 2 Type-A (Red)
4× USB 3.2 Gen 1
4× USB 2.0
USB-C (USB 3.2 Gen 2)
5GbE LAN
Wi-Fi antenna ports
Optical S/PDIF Out
Audio jacks
🧬 BIOS & Software
🧠 AMI UEFI BIOS (512 Mbit)
🛠️ GIGABYTE Control Center (GCC)
🛡️ Norton® Internet Security (OEM)
🖥️ Form Factor & OS
📐 ATX Form Factor – 30.5 × 24.4 cm
🪟 Supports Windows 11 64-bit
