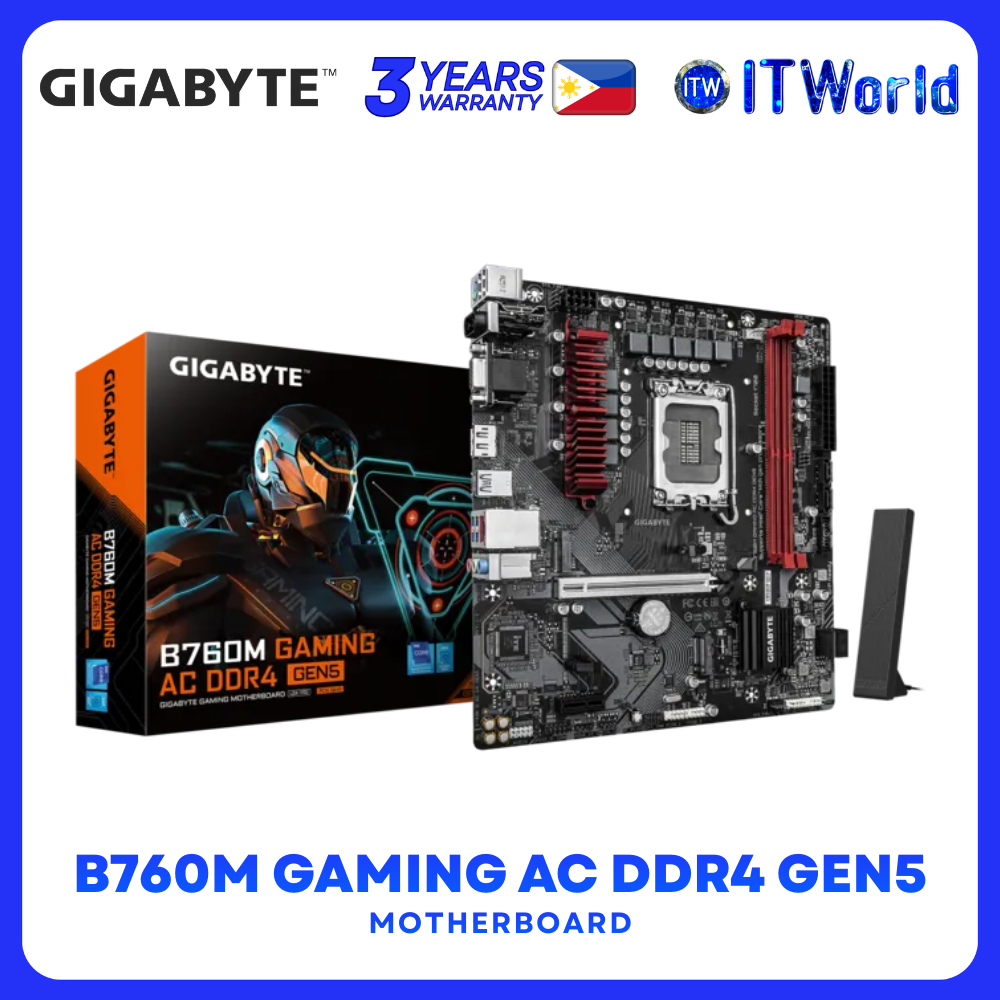

Build a powerful and future-ready PC with the GIGABYTE B760M GAMING AC DDR4 GEN5 Motherboard. Designed with PCIe 5.0 support, DDR4 overclocking, and WiFi connectivity, this Micro ATX motherboard delivers reliable performance, modern connectivity, and durable components for gaming and productivity builds.
⚡ PCIe 5.0 Performance
• PCIe 5.0 x16 slot for next-generation graphics cards or NVMe SSD
• Data transfer speed up to 32 GT/s per lane for improved bandwidth
• Ideal for high-performance GPUs, storage devices, and AI accelerators
🛡 Ultra Durable Design
• Built with GIGABYTE Ultra Durable™ components
• Engineered for stable performance and long-term reliability
🔧 CPU & Chipset Support
• LGA1700 Socket
• Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
• Intel® B760 Express Chipset
🧠 Memory Support
• 2× DDR4 DIMM slots
• Supports up to 64GB system memory
• Memory speeds up to DDR4 5333(O.C.)
• Dual-channel architecture
• Supports XMP memory modules
🖥 Integrated Graphics Output
• 1× D-Sub Port – up to 1920×1200 @ 60Hz
• 1× HDMI Port – up to 4096×2160 @ 60Hz (HDMI 2.1 / HDCP 2.3)
• 1× DisplayPort – up to 4096×2304 @ 60Hz (DP 1.2 / HDCP 2.3)
• Supports triple display output
🎧 Audio Features
• Realtek® High Definition Audio CODEC
• Supports 2 / 4 / 5.1 / 7.1-channel audio
• S/PDIF Out support
🌐 Networking & Wireless
• Realtek® 2.5GbE LAN (2.5Gbps / 1Gbps / 100Mbps)
• Realtek® Wi-Fi RTL8821CE
• Dual-band WiFi 802.11 a/b/g/n/ac (2.4GHz / 5GHz)
• Bluetooth 5.0
💾 Storage & Expansion
• 2× M.2 PCIe 4.0 connectors (Socket 3, Type 2280)
• 4× SATA 6Gb/s ports
• RAID support: RAID 0 / 1 / 5 / 10
🔌 USB Connectivity
• 1× USB Type-C® (USB 3.2 Gen 1)
• 5× USB 3.2 Gen 1 ports
• 6× USB 2.0/1.1 ports
🖥 Back Panel Connectivity
• 2× USB 2.0 ports
• 3× USB 3.2 Gen 1 ports
• 1× USB Type-C® port
• 1× RJ-45 LAN port
• 1× PS/2 keyboard/mouse port
• 1× HDMI port
• 1× DisplayPort
• 1× D-Sub port
• 3× Audio jacks
• 2× Antenna connectors
⚙ Additional Features
• Q-Flash & Q-Flash Plus support
• GIGABYTE Control Center (GCC) support
• Smart Backup support
• Norton® Internet Security (OEM version) included
💻 Operating System Support
• Windows 11 64-bit
• Windows 10 64-bit
📏 Motherboard Form Factor
• Micro ATX
• Size: 24.4 × 22.5 cm
