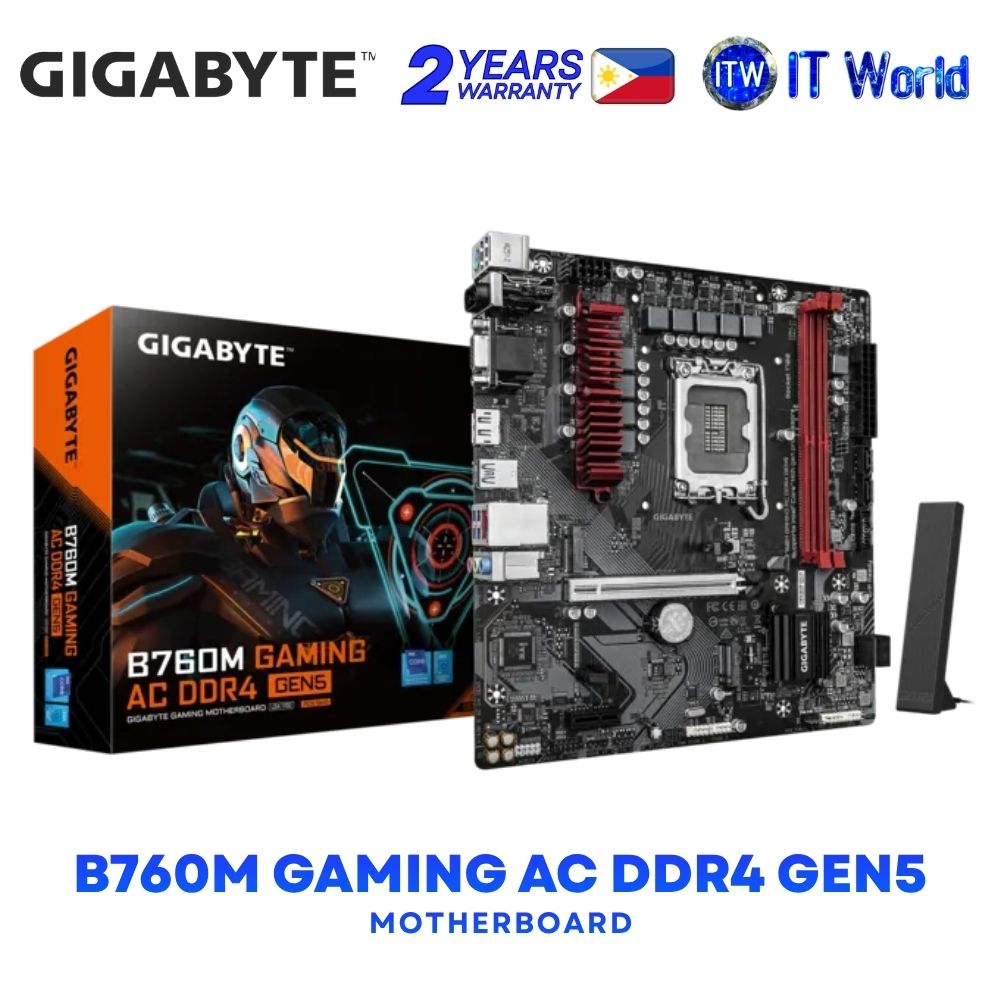

Gigabyte B760M Gaming AC DDR4 GEN5 micro-ATX LGA1700 DDR4 Intel B760 Express Chipset Motherboard
⚙️ Upgrade your PC build with the Gigabyte B760M Gaming AC DDR4 Gen5 Motherboard, powered by the Intel® B760 Express Chipset and designed for Intel® Core™ 14th, 13th, and 12th Generation processors. Featuring PCIe 5.0 graphics support, DDR4 dual-channel memory, dual M.2 PCIe 4.0 connectors, Wi-Fi connectivity, and 2.5GbE LAN, this motherboard delivers versatile connectivity and expansion options for your desktop setup.
Key Features & Specifications
⚙️ Processor Support: Intel® LGA1700 socket compatible with Intel® Core™ 14th, 13th, and 12th Gen processors, plus Pentium® Gold and Celeron® processors.
🧩 Chipset: Intel® B760 Express Chipset.
🚀 PCIe Gen5 Performance: PCIe 5.0 x16 slot with EZ-Latch quick-release design and Ultra Durable™ SMD PCIe 5.0 Armor.
🧠 DDR4 Memory: 2 DDR4 DIMM slots supporting up to 64GB of system memory, dual-channel architecture, and Intel® XMP memory modules.
💾 Next-Generation Storage: 2 M.2 PCIe 4.0 x4/x2 connectors supporting Type 2280 SSDs.
🔌 SATA Connectivity: 4 SATA 6Gb/s connectors with RAID 0, RAID 1, RAID 5, and RAID 10 support.
🌐 Fast Wired Networking: Realtek® 2.5GbE LAN supporting 2.5Gbps, 1Gbps, and 100Mbps connections.
📶 Wireless Connectivity: Realtek® RTL8821CE Wi-Fi module with 802.11 a/b/g/n/ac support, dual-band 2.4GHz/5GHz Wi-Fi, and Bluetooth 5.0.
🖥️ Multiple Display Outputs: 1 HDMI, 1 DisplayPort, and 1 D-Sub port, supporting up to three displays simultaneously, depending on CPU graphics support.
🔊 High-Definition Audio: Realtek® Audio CODEC with 2/4/5.1/7.1-channel audio support and S/PDIF Out.
🔗 Extended USB Connectivity: Rear USB Type-C® with USB 3.2 Gen 1 support, additional USB 3.2 Gen 1 ports, and USB 2.0/1.1 connectivity.
🌡️ Smart Fan 6: Multiple temperature sensors, hybrid fan headers, and FAN STOP functionality.
🛠️ Q-Flash Plus: Update the BIOS without installing the CPU, memory, or graphics card.
💡 RGB Support: 2 addressable RGB Gen2 LED strip headers and 1 RGB LED strip header.
🌐 Operating System Support: Windows 11 64-bit and Windows 10 64-bit.
📐 Compact Form Factor: Micro-ATX motherboard measuring 24.4 × 22.5 cm.
Ideal For
🎯 PC builders looking for an Intel LGA1700 motherboard with DDR4 memory support, PCIe 5.0 graphics expansion, dual M.2 storage connectivity, Wi-Fi, Bluetooth, and 2.5GbE LAN in a compact Micro-ATX form factor.
