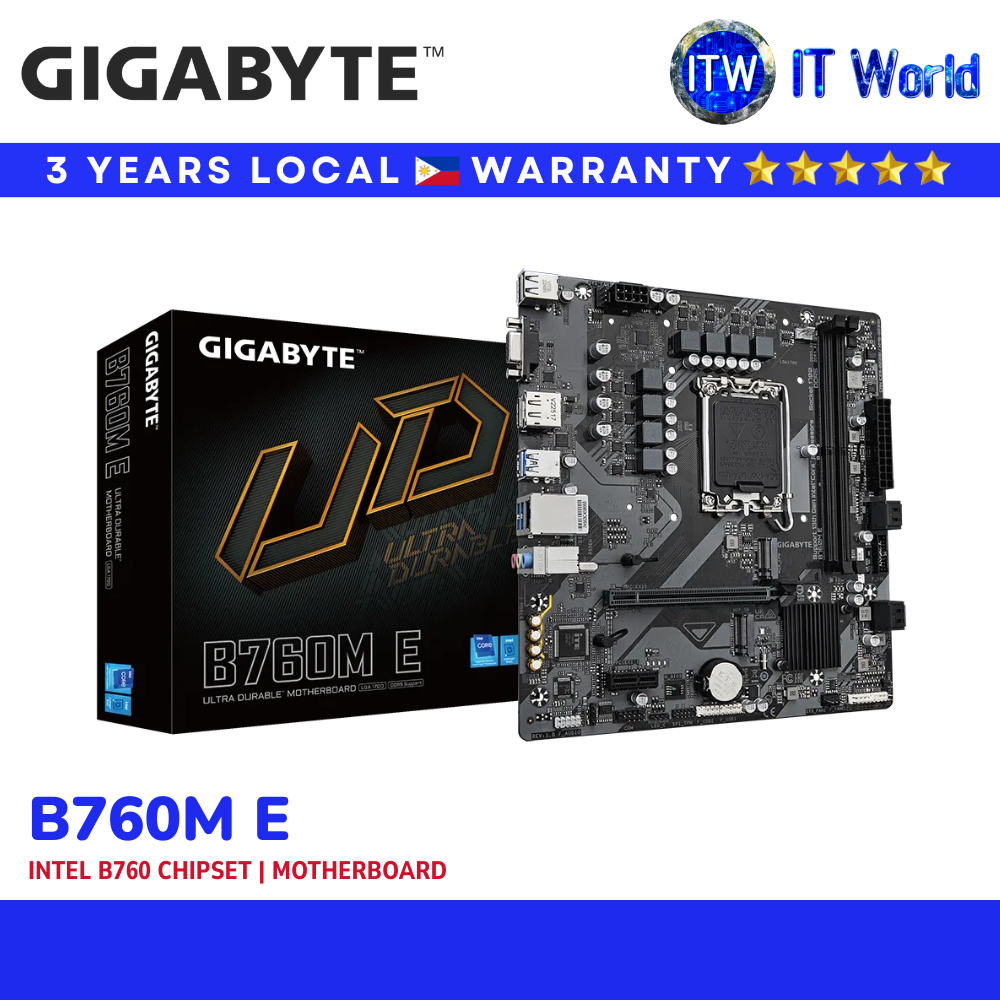

Gigabyte B760M E Motherboard | Intel LGA1700 / DDR5 / PCIe 4.0 / Dual M.2 / mATX | itw
⚡ Next-Gen Intel Power, Budget-Friendly!
Build your dream PC with the Gigabyte B760M E, a reliable Micro ATX motherboard designed for the latest Intel® Core™ 14th/13th/12th Gen processors. Featuring DDR5 memory support up to 7200(O.C.), dual PCIe 4.0 M.2 slots, and Smart Fan 6 cooling, this board delivers next-level performance for gaming and productivity while keeping your build future-ready.
✨ Key Highlights:
💪 Intel LGA1700 Socket – Compatible with 14th/13th/12th Gen Intel® Core™, Pentium® Gold, and Celeron® CPUs.
⚡ Blazing DDR5 Speeds – Dual-channel memory up to 7200 MT/s (O.C.) with Intel XMP.
🚀 Dual PCIe 4.0 M.2 – Ultra-fast NVMe SSD support for lightning-quick boot and load times.
🎮 PCIe 4.0 x16 Slot – Full GPU power with EZ-Latch for quick installation.
🌐 Gigabit LAN – Reliable wired connectivity for lag-free gaming.
🖥️ Triple Display Support – HDMI 2.1, DisplayPort 1.2, and D-Sub for multiple monitors.
❄️ Smart Fan 6 – Advanced thermal management with hybrid fan headers & FAN STOP.
🔄 Q-Flash – Easy BIOS updates without installing CPU, RAM, or GPU.
🔍 Full Specifications:
CPU Support: LGA1700 (Intel® Core™ 14th/13th/12th Gen, Pentium® Gold, Celeron®)
Chipset: Intel® B760 Express
Memory: 2x DDR5 DIMMs, up to 128GB, 7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400(O.C.)/6200(O.C.)/6000(O.C.)/5800(O.C.)/5600(O.C.)/5400(O.C.)/5200(O.C.)/4800/4000 MT/s, Intel XMP support
Graphics:
1x HDMI 2.1 (4096x2160@60Hz)
1x DisplayPort 1.2 (4096x2304@60Hz)
1x D-Sub (1920x1200@60Hz)
Supports triple-display output
Expansion Slots:
1x PCIe 4.0 x16 (CPU, GPU/SSD)
1x PCIe 3.0 x1 (Chipset)
Storage:
2x PCIe 4.0 x4/x2 M.2 (2280)
4x SATA 6Gb/s (RAID 0/1/5/10)
Audio: Realtek® High Definition Audio, 7.1-channel, S/PDIF Out
LAN: Realtek® Gigabit LAN (1 Gbps)
USB Ports:
Rear: 4x USB 3.2 Gen 1, 2x USB 2.0
Internal: 2x USB 3.2 Gen 1 (via header), 4x USB 2.0 (via headers)
Cooling: CPU fan header, 2x system fan headers, RGB LED strip header
BIOS: AMI UEFI, Q-Flash support
Form Factor: Micro ATX (23.0 x 21.5 cm)
📦 Package Includes:
1x Gigabyte B760M E Motherboard
1x I/O Shield
2x SATA Cables
User Manual & Driver DVD
💡 IT World Guarantee: 100% authentic Gigabyte motherboard, perfect for building a high-performance Intel DDR5 system with strong upgrade potential – brand-new & warranty-protected!
✨ IT World Advantage: 100% Genuine • Secure Packaging • Fast Delivery 🚀
