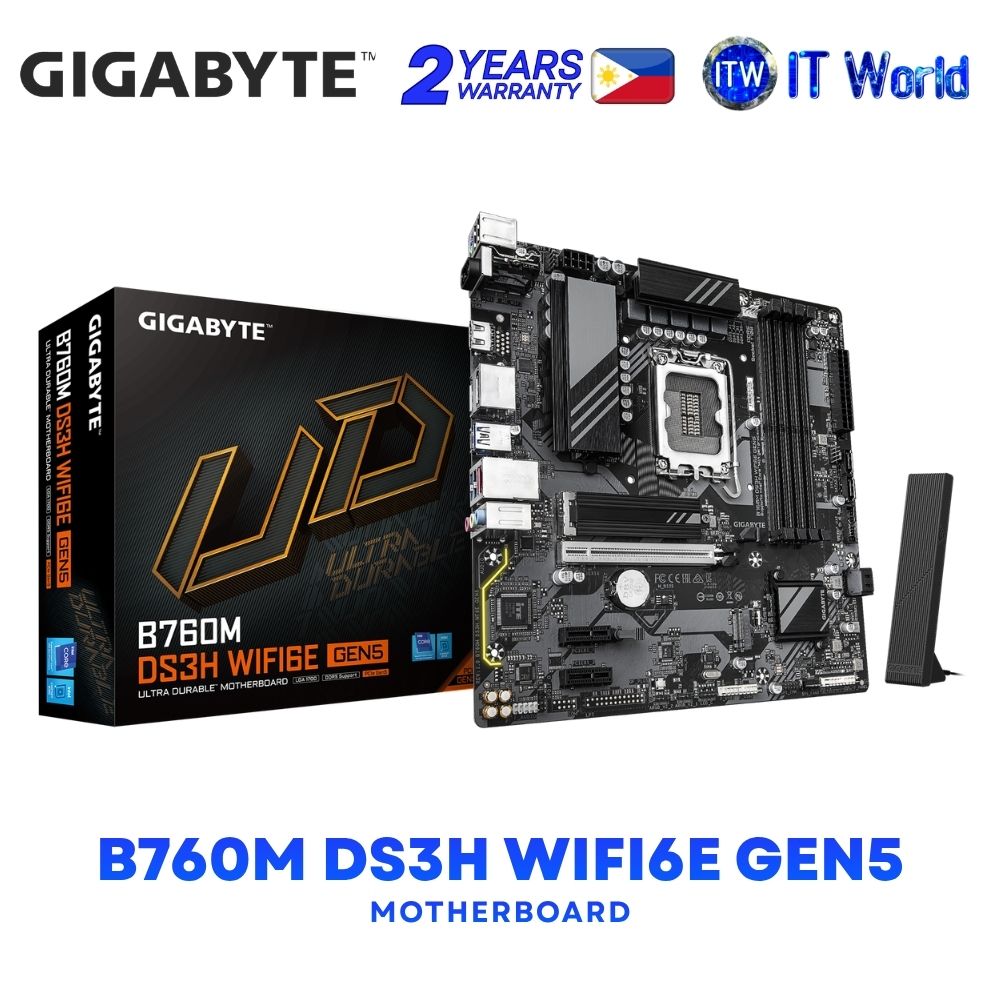

Gigabyte B760M DS3H WIFI6E GEN5 mirco-ATX LGA1700 DDR5 Intel B760 Express Chipset Motherboard
Product Description
Upgrade your PC build with the Gigabyte B760M DS3H WIFI6E GEN5 Micro-ATX Motherboard, designed for Intel® processors with LGA1700 socket support. Featuring the Intel® B760 Express Chipset, DDR5 memory support, next-generation PCIe connectivity, and built-in Wi-Fi 6E, this motherboard offers a versatile foundation for gaming, productivity, and everyday computing builds.
Key Features & Specifications
CPU Compatibility
Supports 14th, 13th, and 12th Generation Intel® Core™ processors.
Compatible with Intel® Pentium® Gold and Celeron® processors.
LGA1700 socket with Intel® B760 Express Chipset.
DDR5 Memory Support
⚡ 4 × DDR5 DIMM slots.
⚡ Supports up to 256GB of system memory.
⚡ Dual-channel memory architecture.
⚡ Supports Intel® Extreme Memory Profile (XMP).
⚡ Memory speeds depend on the processor and memory configuration, with supported speeds up to DDR5 7600 MT/s (O.C.).
Wireless Connectivity
Intel® Wi-Fi 6E AX210 wireless module.
Supports 2.4GHz, 5GHz, and 6GHz frequency bands.
Bluetooth 5.3 connectivity.
Supports the 802.11ax 160MHz wireless standard.
High-Speed Wired Networking
Realtek® 2.5GbE LAN.
Supports 2.5Gbps, 1Gbps, and 100Mbps network speeds.
PCIe Expansion
1 × PCIe 5.0 x16 slot for a compatible graphics card or NVMe SSD.
2 × PCIe 3.0 x1 expansion slots.
Storage Options
2 × M.2 PCIe 4.0 x4/x2 connectors for compatible M.2 2280 SSDs.
4 × SATA 6Gb/s connectors.
Supports SATA RAID 0, RAID 1, RAID 5, and RAID 10.
Display Connectivity
️ 1 × HDMI 2.1 port, supporting up to 4096 × 2160 at 60Hz.
️ 2 × DisplayPort 1.2 outputs, each supporting up to 4096 × 2304 at 60Hz.
️ Supports up to three displays simultaneously, depending on CPU graphics support.
USB Connectivity
1 × rear USB Type-C® with USB 3.2 Gen 2 support.
5 × USB 3.2 Gen 1 ports, including rear and internal-header connections.
Additional USB 2.0/1.1 ports through rear connections and internal headers.
Audio Features
Realtek® High Definition Audio CODEC.
Supports 2/4/5.1/7.1-channel audio configurations.
S/PDIF Out support.
Cooling & RGB Support
1 × CPU fan header.
3 × system fan headers.
2 × addressable RGB Gen2 LED strip headers.
1 × RGB LED strip header.
Supports fan speed and hardware monitoring functions.
Convenient Features
️ Q-Flash and Q-Flash Plus support.
️ GIGABYTE Control Center (GCC) support.
️ Smart Backup support.
️ Voltage, temperature, and fan speed monitoring.
️ Supports Windows 11 64-bit and Windows 10 64-bit.
Form Factor
Micro-ATX motherboard.
Dimensions: 24.4 × 24.4 cm.
Ideal For
️ Custom PC builds using compatible Intel processors.
Gaming systems with compatible graphics cards.
Productivity and everyday computing setups.
⚡ DDR5-based systems requiring modern storage and connectivity options.
